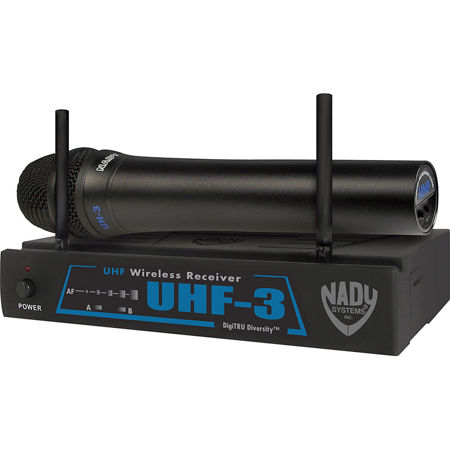

Nady UHF-3 Handheld UHF Wireless Microphone System, MU6/509.55MHz
See all Nady items

Nady UHF-3 Handheld UHF Wireless Microphone System, Includes Receiver, Transmitter, 2 Antennas, Power Supply, 250' Range, MU6/509.55MHz

SKU: NAUHF3HTMU6
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Nady Digital Wireless System: Picture 1 regular
Nady Digital Wireless Handheld Microphone System with DW-11 Receiver
$169.99$114.99
Nady Digital Wireless System: Picture 1 regular
Nady Digital Wireless Lapel & Headmic Microphone System with DW-11 Receiver
$169.99$114.99
Nady Digital Wireless System: Picture 1 regular
Nady Digital Wireless Combo Handheld, Lapel & Headmic System with DW-22 Receiver
$259.99$169.99
Nady Digital Wireless System: Picture 1 regular
Nady Digital Wireless Lapel & Headmic Microphone System with DW-22 Receiver
$259.99$169.99
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Nady UHF-3 Specifications

  • Frequency

    MU6/509.55MHz

  • Frequency Response

    30 Hz - 18 KHz, +/- 3 dB

  • Dynamic Range

    120 dB

  • Total Harmonic Distortion

    < 0.6%

  • RF Carrier Frequency Range

    UHF, choice of single frequencies from 470-500 MHz

  • Frequency Stability

    +/- 0.005%, crystal controlled

  • Modulation

    FM (F3E), +/-20KHz normal

  • Operating Range

    Up to 250' typical (depending on site conditions); up to500+ feet optimum line-of-sight

  • Receiver: Reception Mode

    DigiTRU Diversity (Dual Antenna)

  • Receiver: Squelch

    External Control, Tone Key (30.720 KHz

  • Receiver: Controls

    Power ON/OFF, Volume Control, Squelch (Mute) Adjust

  • Receiver: Connectors

    DC in, 1/4"(6.3 mm) unbalanced phone jack (360 mV/no load), XLR balanced output (+/-24 mV/600 Ohm load)

  • Receiver: LED Indicators

    Power ON, Diversity A/B, Audio Peak

  • Receiver: Unwanted Signal Rejection

    60dB image and spurious

  • Receiver: Power Requirements

    DC 18V @ 250 mA, AC/DC adapter included

  • Receiver: Antenna

    11.2" (28.5 cm), dual telescopic

  • Transmitter: Audio Inputs

    Integral Nady DM-10D neodymium dynamic cartridge

  • Transmitter: Controls

    POWER/MUTE ON/OFF

  • Transmitter: LED Indicator

    Unit "ON" (single flash), Low Battery Alert (steady)

  • Transmitter: RF Power Out

    50mW nominal (maximum allowed by FCC)

  • Transmitter:Harmonic & Spurious Emission

    < -50 dB

  • Transmitter: Battery

    2x AA Alkaline

  • Transmitter: Battery Life

    8-10 Hours (150mA draw typical)

  • Dimensions

    Receiver: 1.75 x 7.5 x 8.1" / 4.45 x 19.05 x 20.57cm
    Transmitter: 2 x 9" / 5.08 x 22.86cm

  • Weight

    Receiver: 1.6lbs / 0.73kg
    Transmitter: 10.15oz / 287.75g (without battery)

  • UPC Code

    634343259698

About Nady UHF-3

The Nady UHF-3 Handheld UHF Wireless Microphone System (MU6/509.55MHz) incorporates stable UHF reception in a cost effective package for DJs, presentations, houses-of-worship, karaoke and much more. The UHF-3 avoids the crowded VHF bandwidth, resulting in low noise and fewer drop-outs. The system is straightforward and easy to operate, with the UH-3 handheld microphone transmitter and UHF-3 receiver. The UH-3 handheld transmitter features Nady's DM-10D neodymium, cardioid capsule for professional sound in any application. The receiver features DigiTRU diversity technology for stable reception.

Nady UHF-3 Features

  • Clear channel UHF operation for optimum interference-free performance in any application or locale
  • Half-rack receiver design with folding front panel dual antennas
  • Unique snap-out panel locking tabs for optional single receiver rack mounting or dual receiver (side-by-side) rack mounting
  • Nady's proprietary companding circuitry for an industry best 120dB dynamic range and the clearest, most natural sound available
  • Tone Squelch for locking out potential interference
  • UHF-3 receiver with DigiTRU Diversity for maximum range and dropout protection, full LED indicators, 1/4" unbalanced and XLR balanced outputs; special circuitry for noiseless transmitter On/Off switching
  • The UH-3 handheld transmitter is included
  • Transmitter: Features the Nady DM-10D unidirectional neodymium dynamic cartridge for optimum true sound, maximum feedback rejection and minimal handling noise
  • Transmitter: Audio mute switch allows convenient audio muting with the transmitter on
  • Transmitter: Battery status LED (red) indicator flashes once for Battery OK; lights steady for low-battery alert
  • Transmitter: TX LED (green) indicator lights steady
  • Transmitter: Uses two AA alkaline or NiMH batteries
  • Transmitter: Rugged, all-metal housing

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • UH-3 handheld transmitter is included
  • Optimum sound, maximum feedback rejection, minimal noise
  • Audio mute switch for convenient muting when on
  • Battery status LED flashes once for Battery OK
  • TX LED (green) indicator lights steady
  • Uses two AA alkaline or NiMH batteries

What's in the box:

  • Nady UH-3 Handheld Transmitter
  • Receiver
  • 2 x Antennas
  • Power Supply
  • Nady Warranty
