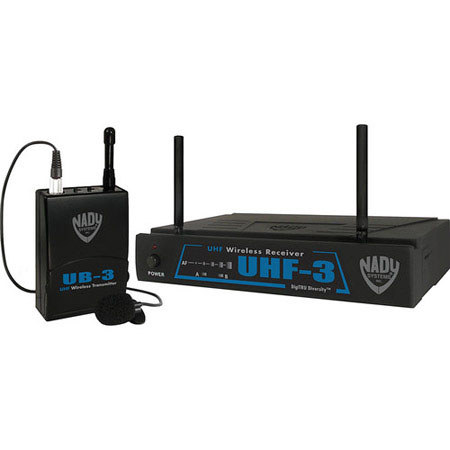

Nady UHF-3 UHF DigiTRU Wireless Lavalier Microphone System, Includes Receiver, UB-3 Transmitter, Lavalier Mic, 2 Antennas, Power Supply, MU1/470.55MHz

SKU: NAUHF3LTMU1

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the benefit of the UHF-3 system operating outside the crowded VHF bandwidth?

Operating outside the VHF bandwidth means the UHF-3 system can deliver cleaner, more reliable audio transmission. It reduces the risk of interference from other devices, ensuring clear, uninterrupted sound.

What is the purpose of the UB-3 bodypack transmitter in the Nady UHF-3 UHF DigiTRU Wireless Lavalier Microphone System?

The UB-3 bodypack transmitter is a compact device that transmits the sound captured by the lavalier microphone to the UHF-3 receiver. Its lightweight design allows for comfortable wear, making it ideal for hands-free operation during presentations, performances, and more.

How does the DigiTRU diversity technology in the UHF-3 receiver improve the sound quality?

DigiTRU diversity technology ensures stable reception by reducing the risk of signal loss or interference. This results in a more reliable and superior sound performance.

Is the Nady UHF-3 UHF DigiTRU Wireless Lavalier Microphone System suitable for large venues?

Yes, the Nady UHF-3 UHF DigiTRU Wireless Lavalier Microphone System is designed to deliver high-quality, clear sound, making it suitable for both small and large venues.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Nady UHF-3 Specifications

  • Frequency Response

    30 Hz - 18 KHz, +/- 3 dB

  • Dynamic Range

    120 dB

  • Total Harmonic Distortion

    < 0.6%

  • RF Carrier Frequency Range

    UHF, choice of single frequencies from 470-500MHz

  • Frequency

    MU1/470.55MHz

  • Frequency Stability

    +/- 0.005%, crystal controlled

  • Modulation

    FM (F3E), +/-20KHz normal

  • Operating Range

    Up to 250' typical (depending on site conditions); up to 500+ feet optimum line-of-sight

  • Receiver: Reception Mode

    DigiTRU Diversity (Dual Antenna)

  • Receiver: Squelch

    External Control, Tone Key (30.720 KHz)

  • Receiver: Controls

    Power ON/OFF, Volume Control, Squelch (Mute) Adjust

  • Receiver: Connectors

    DC in, 1/4"(6.3 mm) unbalanced phone jack (360 mV/no load), XLR balanced output (+/-24 mV/600 Ohm load)

  • Receiver: LED Indicators

    Power ON, Diversity A/B, Audio Peak

  • Receiver: Unwanted Signal Rejection

    60dB image and spurious

  • Receiver: Power Requirements

    DC 18V @ 250 mA, AC/DC adapter included

  • Receiver: Antenna

    11.2" (28.5 cm), dual telescopic

  • Type of Microphone

    Lavalier

  • UB-3 Bodypack Transmitter: Audio Inputs

    3.5mm locking mini-jack, 3-way select switch for inputs: lavalier mic

  • UB-3 Bodypack Transmitter: Controls

    Power /Mute ON/OFF, Instrument /Headworn MIC/Lav Mic, Input Level

  • UB-3 Bodypack Transmitter: LED Indicator

    Bicolor, Unit "ON" (green), Low Battery Alert (orange)

  • UB-3 Bodypack Transmitter: RF Power Out

    50mW nominal (maximum allowed by FCC)

  • UB-3 Bodypack Transmitter: Emissions

    Harmonic & Spurious: < -50 dB

  • UB-3 Bodypack Transmitter: Battery

    AAA Alkaline (2x)

  • UB-3 Bodypack Transmitter: Battery Life

    4-5 Hours

  • Dimensions

    UB-3 Bodypack Transmitter: 3.25 x 2.18 x 1" (8.25 x 5.53 x 2.54 cm)
    Receiver: 1.75 x 7.5 x 8.1" (4.4 x 19.0 x 20.6 cm)

  • Weight

    UB-3 Bodypack Transmitter: 2.25 oz (63.78 g) without battery
    Receiver: 1.6 lbs (0.73 kg)

About Nady UHF-3

Let the Nady UHF-3 UHF DigiTRU Wireless Lavalier Microphone System (MU1/470.55MHz) elevate your audio experience, whether you're a DJ, presenter, worship leader, or karaoke enthusiast. This high-quality, cost-effective microphone system is designed to deliver stable UHF reception, ensuring crystal-clear sound quality with minimal noise and fewer drop-outs.

Unlike many other systems, the UHF-3 operates outside the crowded VHF bandwidth, resulting in a cleaner, more reliable audio transmission. This feature makes it an ideal choice for any setting where clear, uninterrupted sound is paramount.

The package includes a UB-3 bodypack transmitter and a lavalier microphone, offering hands-free operation for presentations, sermons, performances, and more. The compact and lightweight design of the bodypack transmitter allows for comfortable wear, while the lavalier microphone captures high-quality audio, ensuring your message is heard loud and clear.

The UHF-3 receiver, a key component of this system, is equipped with Nady's DigiTRU diversity technology. This advanced feature ensures stable reception, reducing the risk of signal loss or interference. With the Nady UHF-3 UHF DigiTRU Wireless Lavalier Microphone System, you can expect superior sound performance in any setting.

Nady UHF-3 Features

  • Clear channel UHF operation for optimum interference-free performance in any application or locale
  • Half-rack receiver design with folding front panel dual antennas
  • Unique snap-out panel locking tabs for optional single receiver rack mounting
  • Nady's proprietary companding circuitry for an industry best 120dB dynamic range and the clearest, most natural sound available
  • Tone Squelch for locking out potential interference
  • UHF-3 receiver with DigiTRU Diversity for maximum range and dropout protection, full LED indicators, ½" unbalanced and XLR balanced outputs; special circuitry for noiseless transmitter On/Off switching
  • UB-3 Bodypack Transmitter: Audio mute switch allows convenient audio muting with the transmitter on
  • UB-3 Bodypack Transmitter: Bi-color LED status indicator: Unit On (green); low-battery alert (orange)
  • UB-3 Bodypack Transmitter: Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable
  • UB-3 Bodypack Transmitter: Uses two AAA alkaline or NiMH batteries

Product Documents

User Manual

Key Features

  • Operates outside the crowded VHF bandwidth for cleaner, more reliable audio transmission
  • Includes a UB-3 bodypack transmitter and a lavalier microphone for hands-free operation
  • Lightweight bodypack transmitter for comfortable wear during extended use
  • Lavalier microphone ensures high-quality audio capture for clear sound delivery

What's in the box:

  • Nady Receiver
  • UB-3 Bodypack Transmitter
  • Lavalier Microphone
  • 2 x Antennas
  • Power Supply
  • Nady Warranty
