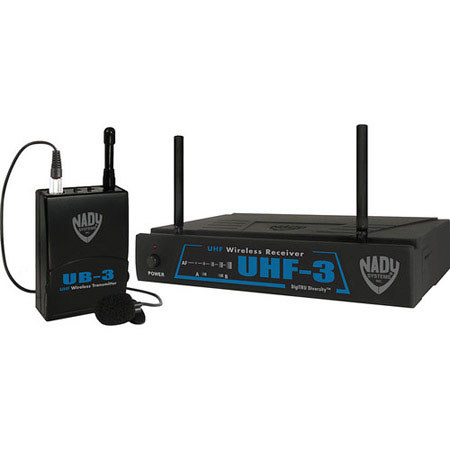

Nady UHF-3 UHF DigiTRU Wireless Lavalier Microphone System, Includes Receiver, UB-3 Transmitter, Lavalier Mic, 2 Antennas, Power Supply, MU6/509.55MHz

SKU: NAUHF3LTMU6 MFR: UHF-3 LT/MU6
$124.00
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Nady wireless lavalier microphone system.
  • Achieve professional sound quality with a wide 30 Hz - 18 KHz frequency response.
  • Enjoy freedom of movement with a reliable wireless range of up to 250 feet.
  • Perfect for interviews, presentations, and performances needing hands-free audio.
  • The DigiTRU diversity receiver ensures a stable signal for uninterrupted recording.
  • Get 4-5 hours of battery life with the UB-3 transmitter, powered by AAA batteries.
See More Product Details
Free Expedited Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Nady UHF-3 Specifications

  • Frequency Response

    30 Hz - 18 KHz, +/- 3 dB

  • Dynamic Range

    120 dB

  • Total Harmonic Distortion

    < 0.6%

  • Frequency

    MU6/509.55MHz

  • Frequency Stability

    +/- 0.005%, crystal controlled

  • Modulation

    FM (F3E), +/-20KHz normal

  • Operating Range

    Up to 250' typical (depending on site conditions); up to 500+ feet optimum line-of-sight

  • Receiver: Reception Mode

    DigiTRU Diversity (Dual Antenna)

  • Receiver: Squelch

    External Control, Tone Key (30.720 KHz)

  • Receiver: Controls

    Power ON/OFF, Volume Control, Squelch (Mute) Adjust

  • Receiver: Connectors

    DC in, 1/4"(6.3 mm) unbalanced phone jack (360 mV/no load), XLR balanced output (+/-24 mV/600 Ohm load)

  • Receiver: LED Indicators

    Power ON, Diversity A/B, Audio Peak

  • Receiver: Unwanted Signal Rejection

    60dB image and spurious

  • Receiver: Power Requirements

    DC 18V @ 250 mA, AC/DC adapter included

  • Receiver: Antenna

    11.2" (28.5 cm), dual telescopic

  • Type of Microphone

    Lavalier

  • UB-3 Bodypack Transmitter: Audio Inputs

    3.5mm locking mini-jack, 3-way select switch for inputs: lavalier mic

  • UB-3 Bodypack Transmitter: Controls

    Power /Mute ON/OFF, Instrument /Headworn MIC/Lav Mic, Input Level

  • UB-3 Bodypack Transmitter: LED Indicator

    Bicolor, Unit "ON" (green), Low Battery Alert (orange)

  • UB-3 Bodypack Transmitter: RF Power Out

    50mW nominal (maximum allowed by FCC)

  • UB-3 Bodypack Transmitter: Emissions

    Harmonic & Spurious: < -50 dB

  • UB-3 Bodypack Transmitter: Battery

    AAA Alkaline (2x)

  • UB-3 Bodypack Transmitter: Battery Life

    4-5 Hours

  • Dimensions

    UB-3 Bodypack Transmitter: 3.25 x 2.18 x 1" (8.25 x 5.53 x 2.54 cm)
    Receiver: 1.75 x 7.5 x 8.1" (4.4 x 19.0 x 20.6 cm)

  • Weight

    UB-3 Bodypack Transmitter: 2.25 oz (63.78 g) without battery
    Receiver: 1.6 lbs (0.73 kg)

  • UPC Code

    634343259759

About Nady UHF-3

The Nady UHF-3 UHF DigiTRU Wireless Lavalier Microphone System (MU6/509.55MHz) incorporates stable UHF reception in a cost effective package for DJs, presentations, houses-of-worship, karaoke and much more. The UHF-3 avoids the crowded VHF bandwidth, resulting in low noise and fewer drop-outs. The system is straightforward and easy to operate, with the UB-3 bodypack transmitter, lavalier microphone and UHF-3 receiver. The bodypack transmitter and lavalier microphone provide reliable, hands-free microphone operation during presentations, sermons, performances and more. The receiver features DigiTRU diversity technology for stable reception.

Nady UHF-3 Features

  • Clear channel UHF operation for optimum interference-free performance in any application or locale
  • Half-rack receiver design with folding front panel dual antennas
  • Unique snap-out panel locking tabs for optional single receiver rack mounting
  • Nady's proprietary companding circuitry for an industry best 120dB dynamic range and the clearest, most natural sound available
  • Tone Squelch for locking out potential interference
  • UHF-3 receiver with DigiTRU Diversity for maximum range and dropout protection, full LED indicators, ½" unbalanced and XLR balanced outputs; special circuitry for noiseless transmitter On/Off switching
  • UB-3 Bodypack Transmitter: Audio mute switch allows convenient audio muting with the transmitter on
  • UB-3 Bodypack Transmitter: Bi-color LED status indicator: Unit On (green); low-battery alert (orange)
  • UB-3 Bodypack Transmitter: Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable
  • UB-3 Bodypack Transmitter: Uses two AAA alkaline or NiMH batteries

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this Nady wireless lavalier microphone system.
  • Achieve professional sound quality with a wide 30 Hz - 18 KHz frequency response.
  • Enjoy freedom of movement with a reliable wireless range of up to 250 feet.
  • Perfect for interviews, presentations, and performances needing hands-free audio.
  • The DigiTRU diversity receiver ensures a stable signal for uninterrupted recording.
  • Get 4-5 hours of battery life with the UB-3 transmitter, powered by AAA batteries.

What's in the box:

  • Nady Receiver
  • UB-3 Bodypack Transmitter
  • Lavalier Microphone
  • 2 x Antennas
  • Power Supply
  • Nady Warranty
