Nady UHF-4 UHF DigiTRU Wireless Diversity Guitar System
See all Nady items

Nady UHF-4 UHF DigiTRU Wireless Diversity Guitar System, Includes UHF-4 Receiver, UB-4 Bodypack Transmitter, Instrument Cord, 2 Antennas, Power Supply

SKU: NAUHF4GT

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : What channel is this on?  I already have a mic on Ch-11.
Shopper : Why Did You Choose This?David M : Needed oneKAITLIN D : It’s usefulDaniel C : I used it before and love it, it was very reliable and sounded good.

Reviews about this item

Review Summary

2021-12-21T14:57:53

Rated 5 out of 5

Useful

Easy to use and very handy for being on stage!!

Kaitlin D.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Nady UHF-4 Specifications

  • Frequency Response

    30 Hz - 18 KHz, +/- 3 dB

  • Dynamic Range

    120 dB

  • Total Harmonic Distortion

    < 0.6%

  • RF Carrier Frequency Range

    UHF, choice of single frequencies within separate bands 902-928 and 944-952 MHz

  • Frequency Stability

    +/- 0.005%, crystal controlled

  • Modulation

    FM (F3E), +/-20KHz normal

  • Operating Range

    Up to 250 ft. typical (depending on site conditions); up to 500+ feet optimum line-of-sight

  • UHF-4 Receiver: Reception Mode

    DigiTRU Diversity (Dual Antenna)

  • UHF-4 Receiver: Squelch

    External Control, Tone Key (30.768 KHz)

  • UHF-4 Receiver: Controls

    Power ON/OFF, Volume Control, Squelch (Mute) Adjust

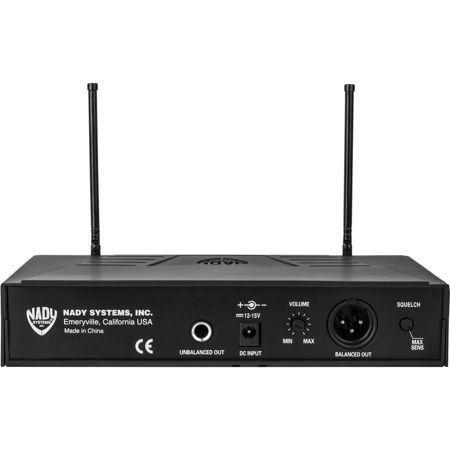

  • UHF-4 Receiver: Connectors

    DC in, 1/4"(6.3 mm) unbalanced phone jack (360 mV/no load), XLR balanced output (+/-24 mV/600 Ohm load)

  • UHF-4 Receiver: LED Indicators

    Power ON, Diversity A/B, Audio LED Bars + Peak

  • UHF-4 Receiver: Signal Rejection

    60dB image and spurious

  • UHF-4 Receiver: Power Requirements

    DC 15V @ 300 mA, AC/DC adapter included

  • UHF-4 Receiver: Antenna

    3.5" (9.0 cm), dual telescopic

  • UB-4 Bodypack Transmitter: Audio Inputs

    3.5mm locking mini-jack, switchable inputs: instrument, headworn mic or lavalier mic

  • UB-4 Bodypack Transmitter: Controls

    Power/Standby/Off, Instrument/Headworn Mic/Lav Mic, Input Level

  • UB-4 Bodypack Transmitter: LED Indicator

    Single color (red), Unit "ON" (single flash red), Low Battery Alert (steady red)

  • UB-4 Bodypack Transmitter: RF Power Out

    50mW nominal (maximum allowed by FCC)

  • UB-4 Bodypack Transmitter: Emissions

    Harmonic & Spurious: < -50 dB

  • UB-4 Bodypack Transmitter: Battery

    9V Alkaline

  • UB-4 Bodypack Transmitter: Battery Life

    10 Hours

  • Dimensions

    UB-4 Bodypack Transmitter: 4.25 x 2.5 x 1.0" / 10.79 x 6.35 x 2.54cm
    UHF-4 Receiver: 1.75 x 7.5 x 8.1" / 4.4 x 19.0 x 20.6cm

  • Weight

    UB-4 Bodypack Transmitter: 3.1 oz (88 g) without battery
    UHF-4 Receiver: 0.9 lbs / 0.41 kg

  • UPC Code

    634343275384

About Nady UHF-4

FEATURED REVIEWS

Useful

By Kaitlin D.

Easy to use and very handy for being on stage!!

The Nady UHF-4 UHF DigiTRU Wireless Diversity Guitar System brings you a complete wireless solution for guitar. The system is straightforward and easy to operate with the UHF-4 receiver and UB-4 Bodypack transmitter. These two are a match made in heaven. Now you can play rhythm guitar or shred a killer lead without being restricted by a long, cumbersome cable. The UHF (Ultra-High Frequency) range avoids crowded VHF bandwidth and features DigiTRU diversity technology offering low noise, maximum range and dropout protection for long-lasting and reliable reception.

Nady UHF-4 Features

  • Unprecedented value in a full-featured, single-channel UHF wireless mic system
  • Interference-free operation in any application or locale on select UHF frequencies
  • Half-rack receiver design with folding front panel dual antennas
  • Unique snap-out panel locking tabs for optional single receiver rack mounting
  • Tone Squelch for locking out potential interference
  • Nady's proprietary companding circuitry for an industry-best 120dB dynamic range and the clearest, most natural sound available
  • UHF-4 receiver with DigiTRU Diversity for maximum range and dropout protection; full LED indicators; ½" unbalanced and XLR balanced outputs; special circuitry for noiseless transmitter On/Off switching
  • UB-4 Bodypack Transmitter: Off/Standby/On switch allows convenient audio muting while transmitter on
  • UB-4 Bodypack Transmitter: Status LED indicator flashes once for Unit On; lights steady for low-battery alert
  • UB-4 Bodypack Transmitter: Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable
  • UB-4 Bodypack Transmitter: Easily accessible Input Level Adjust for optimum sound (HM/LT operating modes only)
  • UB-4 Bodypack Transmitter: Uses a single 9V alkaline or NiMH battery

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Tone Squelch for locking out potential interference
  • UHF-4 receiver with DigiTRU Diversity
  • UB-4 Bodypack Transmitter

What's in the box:

  • Nady UHF-4 Receiver
  • UB-4 Bodypack Transmitter
  • Instrument Cord
  • 2 x Antennas
  • Power Supply
  • Nady Warranty
