Nady UHF-4 Handheld UHF Wireless Microphone System, Group 10
See all Nady items

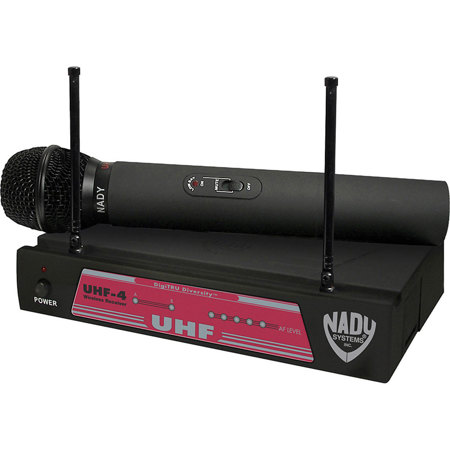

Nady UHF-4 Handheld UHF Wireless Microphone System, Includes UHF-4 Receiver, UH-4 Handheld Transmitter, 2 Antennas, Power Supply, Group 10

SKU: NAUHF4HT10
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2021-12-21T14:57:53

Rated 5 out of 5

Useful

Easy to use and very handy for being on stage!!

Kaitlin D.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Nady UHF-4 Specifications

  • Frequency Response

    30 Hz - 18 KHz, +/- 3 dB

  • Dynamic Range

    120 dB

  • Total Harmonic Distortion

    < 0.6%

  • RF Carrier Frequency Range

    UHF, choice of single frequencies within separate bands 902-928 and 944-952 MHz

  • Frequency

    Group 10

  • Frequency Stability

    +/- 0.005%, crystal controlled

  • Modulation

    FM (F3E), +/-20KHz normal

  • Operating Range

    Up to 250 ft. typical (depending on site conditions); up to 500+ feet optimum line-of-sight

  • UHF-4 Receiver: Reception Mode

    DigiTRU Diversity (Dual Antenna)

  • UHF-4 Receiver: Squelch

    External Control, Tone Key (30.768 KHz)

  • UHF-4 Receiver: Controls

    Power ON/OFF, Volume Control, Squelch (Mute) Adjust

  • UHF-4 Receiver: Connectors

    DC in, 1/4"(6.3 mm) unbalanced phone jack (360 mV/no load), XLR balanced output (+/-24 mV/600 Ohm load)

  • UHF-4 Receiver: LED Indicators

    Power ON, Diversity A/B, Audio LED Bars + Peak

  • UHF-4 Receiver: Signal Rejection

    60dB image and spurious

  • UHF-4 Receiver: Power Requirements

    DC 15V @ 300 mA, AC/DC adapter included

  • UHF-4 Receiver: Antenna

    3.5" (9.0 cm), dual telescopic

  • UH-4 Handheld Transmitter: Audio Inputs

    Integral Nady DM-10D neodymium dynamic cartridge

  • UH-4 Handheld Transmitter: Controls

    Power/Standby/Off, Input Level

  • UH-4 Handheld Transmitter: LED Indicator

    Single color (red), Unit "ON" (single flash red), Low Battery Alert (steady red)

  • UH-4 Handheld Transmitter: RF Power Out

    50mW nominal (maximum allowed by FCC)

  • UH-4 Handheld Transmitter: Emissions

    Harmonic & Spurious: < -50 dB

  • UH-4 Handheld Transmitter: Battery

    9V Alkaline

  • UH-4 Handheld Transmitter: Battery Life

    10 Hours

  • Dimensions

    UH-4 Handheld Transmitter: 9.5 x 2.0" / 24.13 x 5.08cm
    UHF-4 Receiver: 1.75 x 7.5 x 8.1" / 4.4 x 19.0 x 20.6cm

  • Weight

    UH-4 Handheld Transmitter: 6.6 oz (187.1g) without battery
    UHF-4 Receiver: 0.9 lbs / 0.41 kg

  • UPC Code

    634343275414

About Nady UHF-4

FEATURED REVIEWS

Useful

By Kaitlin D.

Easy to use and very handy for being on stage!!

The Nady UHF-4 Handheld UHF Wireless Microphone System (Group 10) incorporates stable UHF reception in a cost effective package for DJs, presentations, houses-of-worship, karaoke and much more. The UHF-4 avoids the crowded VHF bandwidth, resulting in low noise and fewer drop-outs. The system is straightforward and easy to operate, with the UH-4 handheld microphone transmitter and UHF-4 receiver. The UH-4 handheld transmitter features Nady's DM-10D neodymium, cardioid capsule for professional sound in any application. The receiver features DigiTRU diversity technology for stable reception.

Nady UHF-4 Features

  • Unprecedented value in a full-featured, single-channel UHF wireless mic system
  • Interference-free operation in any application or locale on select UHF frequencies
  • Half-rack receiver design with folding front panel dual antennas
  • Unique snap-out panel locking tabs for optional single receiver rack mounting
  • Tone Squelch for locking out potential interference
  • Nady's proprietary companding circuitry for an industry-best 120dB dynamic range and the clearest, most natural sound available
  • UHF-4 receiver with DigiTRU Diversity for maximum range and dropout protection; full LED indicators; ½" unbalanced and XLR balanced outputs; special circuitry for noiseless transmitter On/Off switching
  • UH-4 Handheld Microphone Transmitter: Features the Nady DM-10D unidirectional neodymium dynamic cartridge for optimum true sound, maximum feedback rejection and minimal handling noise
  • UH-4 Handheld Microphone Transmitter: Off/Standby/On switch allows convenient audio muting while transmitter on
  • UH-4 Handheld Microphone Transmitter: Status LED indicator flashes once for Unit On; lights steady for low-battery alert
  • UH-4 Handheld Microphone Transmitter: Single 9V alkaline or NiMH battery operation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Interference-free operation in any application or locale on select UHF frequencies
  • Half-rack receiver design with folding front panel dual antennas
  • Unique snap-out panel locking tabs
  • Tone Squelch for locking out potential interference
  • Nady's proprietary companding circuitry
  • UHF-4 receiver with DigiTRU Diversity

What's in the box:

  • Nady UHF-4 Receiver
  • UH-4 Handheld Transmitter
  • 2 x Antennas
  • Power Supply
  • Nady Warranty
