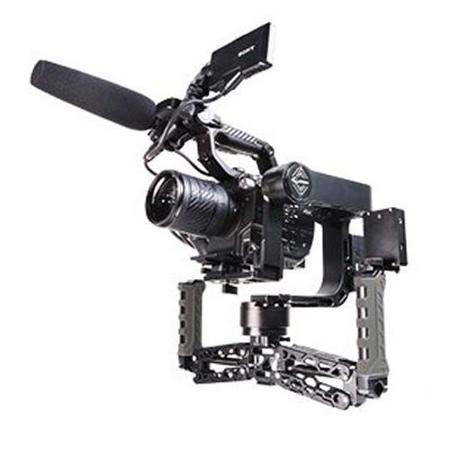

Nebula 5300 5-Axis Gyroscope Stabilizer with Built-In Encoder

SKU: NBNB53005AXS

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Nebula 5300 Gyro Stabilizer Specifications

  • Supported Cameras

    Supports cameras such as:
    Canon C100, C100 II, C200, C300, C300 II, C500
    Sony FS5, Z150
    Panasonic DVX200 and other mainstream cameras

  • Construction

    Aluminum Magnesium-silicon alloy

  • Operation Modes

    Follow
    Semi-Lock
    Lock
    Roll Follow

  • Built-In Functions

    Follow control, Orientation-locked control, Steady system, Double sides use, Time-lapse mode, Manual adjustment system

  • Load Capacity

    4.5kg (9.92 lbs)

  • Angular Vibration Range

    +/-0.01 deg. (minimum)
    +/-0.04 deg. (maximum)

  • Mechanical Endpoint Range

    Pan Axis: 360 deg.
    Tilt Axis: 360 deg.
    Roll Axis: 360 deg.

  • Control Precision

    0.01 deg.

  • Battery

    12.6V 2600mAh (with charging protection circuit)

  • Duration

    Replaceable smart battery for 8-10 hours battery life (depend on the weight of camera and working status)

  • Operating Temperature

    -13 to 158 deg. F (-25 to 70 deg. C)

  • Sensor

    32-bit encoder

  • Parameter Adjustment

    iOS, PC/Mac, Bluetooth

  • Dimensions

    12.5 x 4.9 x 6.1" (31.75 x 12.45 x 15.49cm)

  • Weight

    3.3 lbs (1.50kg)

About Nebula 5300 Gyro Stabilizer

5-Axis Stabilization System Avoid All Vibrations
Compared with the traditional 3-axis gimbal, our original 5-axis dual spring handle can absorb horizontal and vertical bounces caused by our steps.

• Built-in 4096 grade encode
• Double-side use
• 360 deg. Unlimited Rotation hidden cable
• 10-hour battery life
• Encapsulated 5-axis dual handle
• All-metal mold casting
• No Need balancing
• Payload up to 9.92 lbs

Special Designed for Video Cameras
Payload up to 9.92 lbs, supports cameras such as the Canon C100, C100 II, C200, C300, C300 II, C500, Sony FS5, Z 150, Panasonic DVX200 and other video cameras.

5-Axis Stabilizer for Video Cameras - Bigger Space for Setting Up
An oversized model among the Nebula Series, special designed for video cameras.

Built-in 4096 Grade Encoder - Triple 32-bit Arm Processors Quick Getting Start
Built-in with three 32bit ARM processors, providing quicker and accurate calculation. Can hold the cameras even it's not perfect balanced.

Full Metal Mold Casting - Integrated Structure Improves Stability
The main parts of the Nebula 5300 is made of aluminum magnesium silicon alloy, the integrated mold-casting structure optimizes the strength and rigidity.

Encapsulated 5-Axis Dual Handle - Comfortable Grip with Protection Against Dampness and Moisture
The encapsulated 5-axis dual handle is designed for protecting against dampness and moisture.

Hidden Cable Design - Unlimited Rotation
Hidden cable design, 360 deg. rotation along all three axes, no limitation wherever your turn.

Multiple Practical Modes - Suitable For Any Circumstances
Considered of the efficiency and convenience, provides optional shooting solutions in any circumstances.

5-axis double handheld eye-level mode
Normal 5-axis use, suitable for tracking, running and rotating shots.

5-axis double handheld waist-level mode
Hang the gimbal with the 5-axis dual handle, suitable for simulating jibs movements and sports shots.

5-axis Roll follow mode
An special mode that suitable for rotation shots or other emotional shots.

3-axis single handheld normal mode
Use the single handle instead of the 5-axis dual handle, suitable for shooting in narrow spaces.

3-axis single handheld hang mode
Mount the single handle on the top of the gimbal, suitable for low angle shots.

Double-side Use
Support cameras with flipping screen, turn the motor to left/right side use as needed.

Instant Manual Adjustment Change To Wherever You Want
You can manually change the position to your camera to wherever you want while shooting, just try different angles and compositions.

Auto Face Tracking Now Available
With the help of the assistant app on you iPhone, it achieves the Auto face tracking function now!

Replaceable Smart Battery - 8 Hour Long Battery Life
By the help of the encoder, saves a lot of energy for your gimbal, now the battery of the Nebula 5300 has got a 8-10 hours long battery life.

More Expansion Possibilities More Solutions

Nebula Gyro Jib
• Lightweight, Simple use Easy operation
• Fiber jib, only weighs 2.20 lbs
• Wireless remote, wireless monitoring
• A perfect match for Nebula 5-axis stabilizer
• Compatible with the Nebula 4200/4300/5300
• 24m Length, mount on a tripod
• By the help of the gyro stabilizers lock/semilock mode using to keep the level instead

Nebula Remote
• Compatible with all Nebula Series
• Infrared remote control recording function
• Bluetooth pairing connection
• Tool-less quick setup
• Instant remote control your gimbal
• USB charging with long battery life

Nebula Focus
• Lightweight and compact, Only weighs 6.35 oz
• Great partner for Nebula gimbals
• Full-metal body
• Foldable antenna
• Instant remote control through Bluetooth
• Servo motor with built-in encoder Adjustable speed
• Standalone modelling: Receiver & Motor & Battery & Distance measurement 4 in 1
• Ultrasonic distance measurement, Instant display
• Support memory point set
• New Filmpower APP

Direct Infrared Remote Control Recording
There are 1/4 screw holes on the top of the handle, allows use with various support equipment.

For monitor setup
You can set a 5/7-inch monitor or other accessories such as a mic or a light on the top/bottom of the 5-axis handle.

1/4 Screw hole on the dove-tail slot
There is a 1/4 screw hole on the top and the bottom of the spring handle, supports adding your monitor, light or other assistant equipment.

1/4 Screw holes on the top of the handle
There are 1/4 screw holes on the top of the handle, allows use with various support equipment such as the monitor, mic, Nebula remote, Nebula focus and more exclusive Nebula accessories.

Support Tuning Through the Assistant App On Your iPhone or Computer
Free to use a micro USB data wire to connect your gimbal to your phone and adjust settings.

Nebula 5300 Hard Case - Light But Safe
Safety and compact for you to put your Nebula 5300 right away in the hardcase.

What's in the box:

  • Nebula 5300 5-Axis Gyroscope Stabilizer
  • Remote
  • USB Charging Data Wire
  • Single Handle
  • Encapsulated 5-Axis Dual Handle
  • Quick Release Plate
  • Charger
  • Battery
  • Hard Case
  • User Manual
  • Nebula 1 Year Warranty
