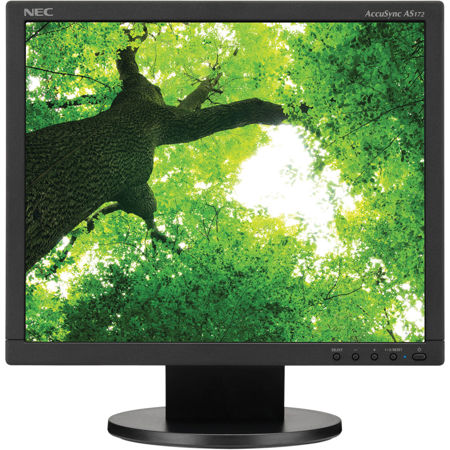

NEC AccuSync AS172 17" LED Monitor
See all NEC items

NEC AccuSync AS172 17" LED Monitor, 1280x1024 Resolution, 1000:1 Contrast Ratio, 250 cd/m2 Brightness, 5ms Response Time

SKU: NCAS172BK

This item is no longer available.

Recommended Alternatives

NEC AccuSync AS194Mi: Picture 1 regular
NEC AccuSync AS194Mi 19" 5:4 IPS LCD Desktop Monitor, LED Backlighting,1280x1024
$233.99
See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

NEC AccuSync AS172 Specifications

  • Panel Technology

    TN

  • Viewable Image Size

    17"

  • Aspect Ratio

    5:4

  • Native Resolution

    1280 x 1024

  • Pixel Pitch

    0.26mm

  • Pixels Per Inch

    96 at native resolution

  • Backlight Type

    W-LED

  • Brightness (typical)

    250 cd/m2

  • Contrast Ratio (typical)

    1000:1

  • Viewing Angle (typical)

    170deg. Vert., 170deg. Hor. (85U/85D/85L/85R) at CR>5

  • Response Time (typical)

    5ms

  • Displayable Colors

    More than 16.7 million

  • Horizontal Synchronization

    Analog/Digital: 31.5-81.1 kHz

  • Vertical Synchronization

    56-76 Hz

  • Input Signal: Video

    Analog RGB 0.7 Vp-p/75Ohms

  • Input Signal: Sync

    Separate Sync: TTL Level (Positive/Negative); Composite Sync: TTL Level Positive/Negative);
    Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive)

  • Input Connectors

    DVI-D, VGA 15-pin D-sub

  • Power Consumption: On (typical)

    11W

  • Power Savings Mode (typical)

    0.15W

  • Operating Temperature

    41-95deg. F / 5-35deg. C

  • Operating Humidity

    20 - 80%

  • Operating Altitude

    6562' / 2000.09m

  • Storage Temperature

    14-140deg. F / -10-60deg. C

  • Storage Humidity

    10-85%

  • Storage Altitude

    40000' / 12192m

  • ENERGY STAR

    6.0

  • TCO

    6.0

  • EPEAT

    Silver

  • RoHS

    Yes

  • Functions

    ECO Mode; Carbon footprint meter; Thin frame; Tilt; Rapid Response; Ambix; XtraView; OSD user controls; NaViSet software; Cable management; VESA mount; HDCP; DDC/ CI; No Touch Auto Adjust; Plug and Play (VESA DDC 2B); VESA DPMS power management; AccuColor color control; Digital smoothing; Digital controls; ISO 9241-307 Class I

  • VESA Hole Configuration

    100 x 100mm

  • Dimensions (W x H x D)

    With Stand: 14.7 x 14.7 x 8.1" / 373.38 x 373.38 x 205.74mmWithout Stand: 14.7 x 12.2 x 2.7" / 373.38 x 309.88 x 68.58mm

  • Weight

    With Stand: 7.3lbs / 3.31kgWithout Stand: 6.4lbs / 2.90kg

  • UPC Code

    805736052039

About NEC AccuSync AS172

The NEC AccuSync AS172 17" LED Monitor features robust environmental aspects such as the Carbon Footprint Meter for tracking the conservation of green gas emissions and ECO Mode for significant power consumption savings. These advantages, combined with an ergonomic design and a high-contrast screen, make this model ideal for small-to-medium-sized business environments.

Rapid Response
Delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video.

Ambix
Allows up to two inputs (VGA and DVI-I) to be connected to a single monitor and for each of the three signals to be displayed with the press of a button.

XtraView
Delivers wide viewing angles of up to 176deg. horizontally and vertically (up to 88deg. up, down, left and right) without any glare, reflection or distortion.

LED Backlight
Provides for industry-leading low power consumption and less hazardous materials.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • NEC AccuSync AS172 17" LED Monitor
  • Setup Sheet
  • User Manual
  • Power Cord
  • 15-Pin D-Sub Cable
  • NEC 3 Year Backlight and Parts & Labor Limited Warranty
