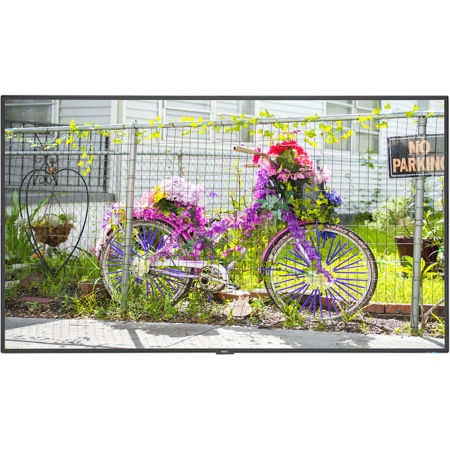

NEC MultiSync C501 50" FHD Slim LED Public Display Monitor with Integrated Speakers

SKU: NCC501

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

NEC MultiSync C501 Specifications

Display

Display

Jump to...
  • Panel Technology

    VA

  • Viewable Image Size

    50"

  • Native Resolution

    1920 x 1080

  • Pixel Pitch

    0.58mm (0.02")

  • Backlight Type

    LED Edge-lit

  • Pixels Per Inch

    44 at native resolution

  • Brightness

    Minimum: 320cd/m2
    Typical: 400cd/m2

  • Contrast Ratio

    Typical: 4000:1

  • Viewing Angle

    Vertical: 178 deg. , Horizontal: 178 deg. (89U/89D/89L/89R) at CR>10

  • Refresh Rate

    60Hz

  • Response Time (GtG)

    6.5ms

  • Aspect Ratio

    16:9

  • Active Screen Area

    43.1 x 24.3" (1094.74 x 617.22mm)

  • Synchronization Range

    Horizontal, Analog: 15.625, 15.734, 26.97, 28.125, 31.5 to 91.1kHz
    Horizontal, Digital: 15 to 91.1kHz
    Vertical, Analog: 24, 25, 30, 50 to 85Hz
    Vertical, Digital: 24 to 85Hz

  • Orientation

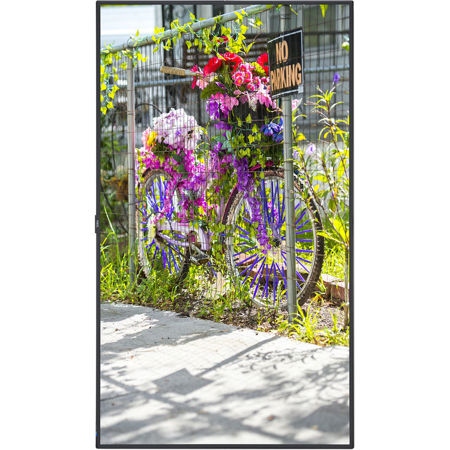

    Landscape and Portrait

  • Bit Depth

    8-bit+FRC

  • Displayable Colors

    Over 1.07 Billion

  • Panel Haze

    0.44

Input Signal

Jump to...
  • Video

    Analog RGB: 0.7 V p-p / 75Ohms
    Digital: TMDS / DisplayPort

  • Sync

    Separate Sync: TTL level (positive/negative)
    Composite Sync: TTL level (positive/negative)
    Composite Sync on Green: (0.3 V p-p negative)

Connectivity

Jump to...
  • Inputs

    3x HDMI 1.4b with HDCP
    1x DisplayPort 1.1a with HDCP
    1x 15-pin VGA
    1x RCA composite video
    2x 1/8" (3.5mm) audio

  • Output

    1x 1/8" (3.5mm) audio

  • Other Connectors

    1x RS-232C control
    1x Ethernet LAN control (100MB)
    1x 1/8" (3.5mm) IR remote in
    1x USB Type-A
    1x microSD card slot

Power Consumption

Jump to...
  • On

    Typical: 65W
    Max Brightness: 85W

  • Network Standby

    2W

  • Normal Standby

    <0.5W

  • Current Rating

    1.50A - 0.60A at 100-240V

  • Speaker Rating

    Integrated 2x 10W

Sensors

Jump to...
  • Ambient Light Sensor

    Integrated and programmable

Environmental Conditions

Jump to...
  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Operating Humidity

    20 to 80%

  • Operating Altitude

    Up to 9843' (3000.18m)

  • Storage Temperature

    -4 to 104 deg. F (-20 to 40 deg. C)

  • Storage Humidity

    10 to 90%

  • Storage Altitude

    Up to 40000' (12192.15m)

General

Jump to...
  • VESA Hole Configuration

    4x M6 x 12mm (300 x 300)

  • Bezel Width

    Left/Right/Top/Bottom: 12.4mm (0.49")

  • Additional Functions

    Full External Control through RS232C and LAN, AMX, PJ-Link, SNMP, Crestron RoomView Controls, Alert Mail, HTTP Server Control, CEC over HDMI, Ambient Light Sensor, Wake from Power Save (All inputs), Input Detect Options, Firmware over LAN, PD Comms Tool/ NaViSet Administrator 2 Compatible, USB/SD Card Media Player, Energy Star 7.0 Compliant, Native/2.2/2.4 Gamma Selection, Normal/Full/Wide/1.1/Zoom Aspect, TileMatrix up to 10x10, Monitor/Group ID Control

  • Dimensions (WxHxD)

    Without Stand: 44.3 x 25.4 x 1.8" (112.52 x 64.52 x 4.57cm)

  • Weight

    Without Stand: 35.5 lbs (16.10kg)

  • UPC Code

    805736063691

About NEC MultiSync C501

Brand new aesthetically-focused thin-depth design allows for seamless integration into any digital signage environment while maintaining the commercial ruggedness necessary for retail, education, restaurant and corporate signage.

Beyond Standard Signage
Create beautiful imagery at a cost-conscious price point with the new fully commercial NEC C Series displays. A modern and contemporary design with a mere 45mm depth and improved visual aesthetics allow for the smooth and stylish integration of these displays into any environment. These products contain full metal mechanical structures enabling them to be utilized in situations where robustness is a key factor. They also have a wide range of the latest connectivity interfaces including multiple HDMI connections and a built-in media player to allow for many avenues of displaying content.

The NEC C series boasts 400 cd/m2 along with an anti glare screen that allows for efficient readability and less reflectivity of ambient light that would normally take away from the imagery on the display. These products are ideal for 24/7 digital signage in retail, education, restaurant and corporate environments .

L-Shaped Connectivity
Connectivity is located on both the bottom and side of the display to allow for easy access regardless of orientation.

Removable Logo
When mounting from Landscape to Portrait orientation, there is now the ability to change the orientation of the logo or remove it all together.

Blue ON LED and Ambient Light Sensor
New mechanical structure allows for sleeker LED and ambient light sensor design. Auto dimming of the LED backlights can be utilized through the ambient light sensor allowing for the brightness to change depending on the external lux in the room of installation.

Custom Input Detect / Failover
This feature allows for the customer to prioritize up to 3 inputs so that if a primary source goes down, the display will automatically switch to whatever the customer has prioritized next.

NaViSet Administrator 2
This software is an all-in-one remote support solution that runs from a central location and provides monitoring, asset management and control functionality of the majority of NEC display devices and Windows computers. It is ideal for multi-device installations over arrays.

Real Time Clock and Full Scheduler
These displays have the ability to load the current date and time as well as up to 30 different schedules to run throughout the course of the week. There is also a Holiday Mode built into the scheduler that allows a user to program all holidays throughout the year and can be set so that the display does not turn on during those times.

Key Guide
New Key Guide function allows for easier OSD navigation when manually controlling the unit via the buttons on the back of the display by adding a graphic on the screen that directs the customer to the correct key layout in both landscape and portrait modes.

Ultra Thin Depth
With a mere 45mm of total depth, these displays allow you to get closer to the wall than traditional display. This allows for easier installations due to a lighter chassis as well as unobtrusive mounting and easier accessibility in situations where ADA compliance is of importance.

NEC MultiSync C501 Features

  • Thin Depth allows for easy and unobtrusive integration into any environment
  • Anti glare panel allows for less reflectivity and clear and crisp image visibility
  • Bidirectional and Full External Control allows for easy integration into control systems
  • 400 cd/m2 brightness combined with full HD resolution will capture the attention of audience in almost any situation
  • Integrated Media Player allows for audio, video or image playback via USB or SD card that is also updateable via LAN
  • Failover Capabilities via Custom Input Detect functionality will allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
  • Pair with a WMK-3255S wall mount to meet ADA Compliance requirements for a thin depth signage solution
  • Model includes anti glare screen allowing customers maximum visibility of the content displayed on the screen
  • Energy Star 7.0 Certified product

What's in the box:

  • NEC MultiSync C501 50 " FHD Slim LED Public Display Monitor with Integrated Speakers
  • 9.84' AC Power Cord
  • 5.91' VGA Cable
  • IR Remote Control
  • Batteries
  • CD-ROM (User Manual)
  • NEC 3 Year Limited Warranty
