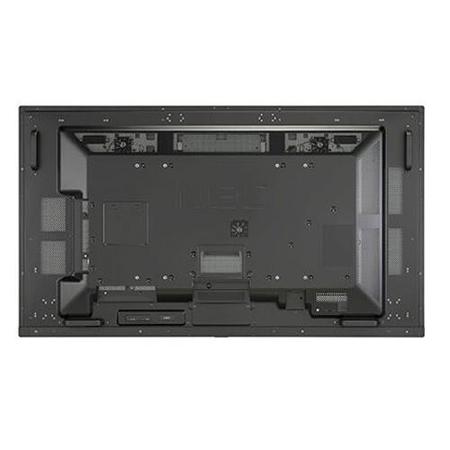

NEC C651Q-PC4 65" 4K UHD VA LED SpectraView Engine Digital Signage Display with Built-In PC & Speakers

SKU: NCC651QPC4

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

NEC C651Q-PC4 Specifications

Display

Display

Jump to...
  • Panel Technology

    VA

  • Viewable Image Size

    65" (165cm)

  • Aspect Ratio

    16:9

  • Native Resolution

    3840x2160

  • Supported Resolutions

    DisplayPort: V1.2 (HDCP 1.3) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 3840 x 2160 (24Hz/30Hz/25Hz/60Hz (DisplayPort 1.2))

  • Supported Resolutions (Contd.)

    HDMI: (HDCP 1.4/2.2) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz, 3840 x 2160 (24Hz/30Hz/25Hz/60Hz (MODE2)), 4096 x 2160 (30Hz, 24Hz, 25Hz, 60Hz (MODE2))

  • Pixel Pitch

    0.37mm

  • Pixels Per Inch

    68 PPI

  • Brightness

    Maximum: 400 cd/m sq.

  • Contrast Ratio (typical)

    4000:1 (without local dimming)

  • Viewing Angle (typical)

    178 Degree Vert., 178 Degree Hor. (89U/89D/89L/89R) @ CR>10
    Response Time (typical): 8 ms

  • Refresh Rate

    60Hz

  • Orientation

    Landscape/Portrait

  • Dimming Capability

    Local Dimming Capable

  • Displayable Colors

    More than 1.07 billion

Synchronization Range

Jump to...
  • Horizontal (Analog/Digital)

    26kHz - 135.0kHz

Signal Compatibility

Jump to...
  • PC Signal Compatibility

    Yes

  • Macintosh Signal Compatibility

    Yes

  • Input Terminals

    Digital: HDMI 2.0 (3), DisplayPort 1.2 (2)
    Audio: Audio Mini-Jack, DisplayPort Audio, HDMI Audio
    External Control: RS-232C, LAN, IR Remote
    Data: microSD (Media Player), USB 2.0 (Media Player, USB (Service), USB Type-B (Upstream), USB x 2 (Both for Compute Module, 1x 5V/2A Powered)

  • Output Terminals

    Digital: DisplayPort (Outputs DisplayPort1 or Option)
    Audio: Audio Mini-Jack, External Speaker Out (2), DisplayPort Audio
    External Control: LAN

Power Consumption

Jump to...
  • On

    200W

  • ECO Mode Standby

    0.5W

  • Network Standby

    2W

  • Power Consumption (max)

    365W (255W Brightness Max)

  • Input Current

    3.4A @ 100V
    1.6A @ 240V

Environmental Conditions

Jump to...
  • Operating Temperature

    32-104 Degree F (0-40 Degree C)

  • Operating Humidity

    20-80%

  • Operating Altitude

    9843' (3000m)

  • Storage Temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Storage Humidity

    10-90%

  • Storage Altitude

    40,000' (12,192m)

Cooling Method

Jump to...
  • Cooling Method

    Integrated Temperature Sensors and Cooling Fans

Physical

Jump to...
  • VESA Hole Configuration

    400 x 400mm (M8 x 16mm)
    600 x 400mm (M8 x 16mm)

  • Bezel Width

    Left & Right: 0.51" (12.9mm)
    Top & Bottom: 0.51" (12.9mm)

  • Dimensions (W x H x D)

    With stand: 57.4 x 34.2 x 23.9" (1457.0 x 868.8 x 606mm)
    Without stand: 57.4 x 32.7 x 3.1" (1457 x 831.6 x 79.4mm)

  • Weight

    Without stand: 89.9 lbs (40.8kg)

  • UPC Code

    805736073157

About NEC C651Q-PC4

24/7 digital signage display with pre-installed Windows 10 PC, the 65" NEC C651Q-PC4 allows for clear, detailed imagery for unobtrusive digital signage. New contemporary and slim mechanical design with focused aesthetics allows for the smooth and stylistic integration into any type of environment while the full metal chassis coupled with real-time temperature sensors and integrated cooling fans maintain the professional quality necessary for commercial environments. With a wide range of the latest connectivity interfaces including HDMI 2.0 x3 and DisplayPort 1.2 x2/daisy chain option, these displays offer the future-proofing necessary for the investment. OPS specifications - AMD 2.1Ghz quad core, WIndows 10 IoT Enterprise, 4GB RAM, 64GB SSD, UHD supported

• Stylish and sleek design allows for easy and unobtrusive integration into any environment

• 400 cd/m 2 brightness combined with UHD resolution and new anti-reflective screen surface will capture the attention of the audience while allowing for clear visibility in higher ambient light conditions

• Future proof modular expansion options including the ability to integrate Open Pluggable Specification (OPS) or a Raspberry Pi Compute Modules seamlessly into the display

• SpectraView Engine allows for complete color, intensity, gamma or uniformity control for the ultimate imaging performance

• Integrated Media Player allows for audio, video or image playback via USB or SD card

• Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for hassle-free 24/7 operation

NEC C651Q-PC4 Features

  • Raspberry Pi Compute Module Compatible
  • SpectraView Engine Color Control (Including Uniformity Adjustment)
  • Integrated OPS Option Slot
  • Localized Dimming
  • On-Screen Key Guide
  • Ethernet Control and Communication
  • USB Upstream/Downstream
  • RS-232 Control and Communication
  • CEC Communication
  • HDCP 1.4 and 2.2 support through HDMI
  • HDCP 1.3 support through DisplayPort
  • Firmware via USB/Network
  • Landscape/Portrait Capable
  • Image Flip
  • TileMatrix (10 x 10)
  • Carbon footprint meter
  • 24/7 Scheduler with Real Time Clock
  • Holiday Settings
  • Screen saver function
  • Multi-Picture Mode
  • 28% haze panel
  • Ambient light sensor
  • Screen Saver Function
  • Optional Human Sensor
  • Intelligent Wireless Data (Near Field Communications)
  • Metal rear cabinet
  • Carrying Handles
  • Variable picture modes
  • Advanced video settings (Noise Reduction, Adaptive Contrast)
  • Input labeling
  • Backlight adjust
  • Aspect ratio control
  • Built-in 10W x 2 speakers
  • Powered USB
  • NaViSet Administrator Compatible
  • Auto ID/IP Address Control
  • Crestron RoomView Support
  • AMX Beacon
  • PJLInk Support
  • HDMI and DisplayPort Cable Included

Key Features

  • Raspberry Pi Compute Module Compatible
  • SpectraView Engine Color Control (Including Uniformity Adjustment)
  • Integrated OPS Option Slot
  • Localized Dimming
  • On-Screen Key Guide
  • Ethernet Control and Communication

What's in the box:

  • C651Q-PC4 65 " 4K UHD VA Panel LED SpectraView Engine Digital Signage Display with Built-in PC and 2x Speakers
  • Power Cord
  • 2m DisplayPort Cable
  • 2m HDMI Cable
  • Wireless Remote Control
  • Batteries
  • Clamps
  • Screws
  • SD Card Cover
  • Eyebolt Bracket
  • Setup Manual
  • NEC 3 Year Limited Warranty
