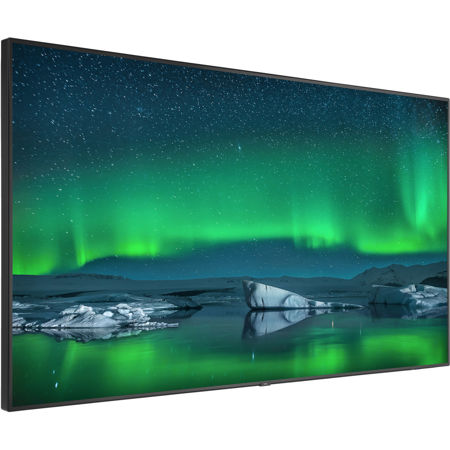

NEC C861Q-AVT2 86" S-IPS 4K UHD Edge-Lit LED Public Display Monitor with Integrated ATSC Tuner and Speakers, 3840x2160

SKU: NCC861QAVT2

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

NEC C861Q-AVT2 Specifications

Display

Display

Jump to...
  • Panel Technology

    S-IPS

  • Aspect Ratio

    16:9

  • Supported Resolutions

    DisplayPort: V1.2 (HDCP 1.3) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz) , 1080p, 1080i, 720p at 50Hz/60Hz, 576p at 50Hz, 480p at 60Hz, 3840 x 2160 (24Hz/30Hz/25Hz/60Hz (DisplayPort 1.2)) HDMI: (HDCP 1.4/2.2) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz) , 1080p, 1080i, 720p at 50Hz/60Hz, 576p at 50Hz, 480p at 60Hz, 576i at 50Hz, 480i at 60Hz, 3840 x 2160 (24Hz/30Hz/25Hz/60Hz (MODE2)) , 4096 x 2160 (30Hz, 24Hz, 25Hz, 60Hz (MODE2))

  • Pixels Per Inch

    51 PPI

  • Contrast Ratio (typical)

    1200:1 (without local dimming)

  • Response Time (typical)

    8 ms

  • Active Screen Area

    74.61 x 41.97" (1895.04 x 1065.96mm)

  • Dimming Capability

    Local Dimming Capable

  • Viewable Image Size

    86"

  • Native Resolution

    3840x2160

  • Pixel Pitch

    0.49mm

  • Brightness (maximum)

    350 cd/m2

  • Viewing Angle (typical)

    178 deg. Vert., 178 deg. Hor. (89U/89D/89L/89R) at CR>10

  • Refresh Rate

    60Hz

  • Orientation

    Landscape/Portrait

  • Displayable Colors

    More than 1.07 billion

Synchronization Range

Jump to...
  • Horizontal (Analog/Digital)

    26kHz - 135.0kHz

Signal Compatibility/Connectivity

Jump to...
  • PC Signal Compatibility

    Yes

  • Macintosh Signal Compatibility

    Yes

  • Input Terminals

    Digital: 3x HDMI 2.0, 2x DisplayPort 1.2
    Audio: 1x Audio Mini-Jack, 1x DisplayPort Audio, 1x HDMI Audio
    External Control: 1x RS-232C, 1x LAN, 1x IR Remote

  • Output Terminals

    Digital: 1x DisplayPort (Outputs DisplayPort 1)
    Audio: 1x Audio Mini-Jack, 2x External Speaker Out, 1x DisplayPort Audio
    External Control: 1x LAN

Power Consumption (typical)

Jump to...
  • On

    230W

  • Network Standby

    2W

  • Input Current

    5.0A at 100V
    2.1A at 240V

  • ECO Mode Standby

    0.5W

  • Power Consumption (max)

    425W (300W Brightness Max)

Environmental Conditions

Jump to...
  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Storage Humidity

    10-90%

  • Operating Humidity

    20-80%

  • Operating Altitude

    9843' (3000m)

  • Storage Altitude

    40,000' (12,192m)

General

Jump to...
  • Cooling Method

    Integrated Temperature Sensors and Cooling Fans

  • Bezel Width (Left/Right, Top/Bottom)

    0.60in. / 0.60in. ; 0.60in. / 0.60in. : 15.3mm/15.3mm, 15.3mm/15.3mm

  • VESA Hole Configuration

    400 x 400mm (M8 x 16mm)
    600 x 400mm (M8 x 16mm)

  • Dimensions (WxHxD)

    With stand: 75.91 x 44.74 x 23.9" (192.81 x 113.64 x 60.71cm)
    Without stand: 75.91 x 43.28 x 2.93" (192.81 x 109.93 x 7.44cm)

  • Weight

    With stand: 137.6 lbs (62.41kg)
    Without stand: 127.4 lbs (57.79kg)

  • UPC Code

    805736070514

About NEC C861Q-AVT2

With industry leading experience in superior design and customer focus, the 86" NEC C861Q-AVT allows for clear, detailed imagery for unobtrusive digital signage. New contemporary and slim mechanical design with focused aesthetics allows for the smooth and stylistic integration into any type of environment while the full metal chassis coupled with real-time temperature sensors and integrated cooling fans maintain the professional quality necessary for commercial environments. With a wide range of the latest connectivity interfaces including HDMI 2.0 x3 and DisplayPort 1.2 x2/daisy chain option, these displays offer the future-proofing necessary for the investment.

These displays also include expandability options such as the Raspberry Pi Compute Module slot for source integration directly into the display. The C861Q-AVT2 series boasts a 350 cd/m2 brightness along with a new anti-glare surface that allows for efficient readability when ambient light is present and is ideal for 24/7 signage in Retail environments as well as when used for presentation purposes in Corporate or Educational institutions.

Stylish and sleek design
Allows for easy and unobtrusive integration into any environment.

500 cd/m2 brightness
Combined with UHD resolution and new anti-reflective screen surface will capture the attention of the audience while allowing for clear visibility in higher ambient light conditions.

SpectraView Engine
Allows for complete color, intensity, gamma or uniformity control for the ultimate imaging performance.

Integrated Media Player
Allows for audio, video or image playback via USB or SD card.

Industrial-strength, premium-grade panel
With additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for hassle-free 24/7 operation.

Full 3 year commercial warranty
To allow for peace of mind and protection of this investment.

Pair with a WMK-3255S wall mount
To meet ADA Compliance requirements for a thin depth signage solution.

NEC C861Q-AVT2 Features

  • Raspberry Pi Compute Module Compatible
  • SpectraView Engine Color Control (Including Uniformity Adjustment)
  • Integrated OPS Option Slot (filled with SB-11TM)
  • Localized Dimming
  • On-Screen Key Guide
  • Ethernet Control and Communication
  • USB Upstream/Downstream
  • RS-232 Control and Communication
  • CEC Communication
  • HDCP 1.4 and 2.2 support through HDMI
  • HDCP 1.3 support through DisplayPort
  • Firmware via USB/Network
  • Landscape/Portrait Capable
  • Image Flip
  • TileMatrix (10 x 10)
  • Carbon footprint meter
  • 24/7 Scheduler with Real Time Clock
  • Holiday Settings
  • Screen saver function
  • Multi-Picture Mode
  • 28% haze panel
  • Ambient light sensor
  • Optional Human Sensor
  • Intelligent Wireless Data (Near Field Communications)
  • Metal rear cabinet
  • Carrying Handles
  • Variable picture modes
  • Advanced video settings (Noise Reduction, Adaptive Contrast)
  • Input labeling
  • Backlight adjust
  • Aspect ratio control
  • Built-in 10W x 2 speakers
  • Powered USB
  • LED edge-lit backlighting
  • NaViSet Administrator Compatible
  • Auto ID/IP Address Control
  • Crestron RoomView Support
  • AMX Beacon
  • PJLInk Support
  • HDMI and DisplayPort Cable Included

What's in the box:

  • NEC C861Q-AVT2 86 " S-IPS 4K UHD Edge-Lit LED Public Display Monitor
  • Power Cord
  • 2.0m DisplayPort Cable
  • 2.0m HDMI Cable
  • Wireless Remote Control
  • Batteries
  • Clamps
  • Screws
  • SD Card Cover
  • Eyebolt Bracket
  • Setup Manual
  • CD-ROM (Software & Documentation)
  • NEC 3 Year Parts & Labor Advanced Replacement Limited Warranty
