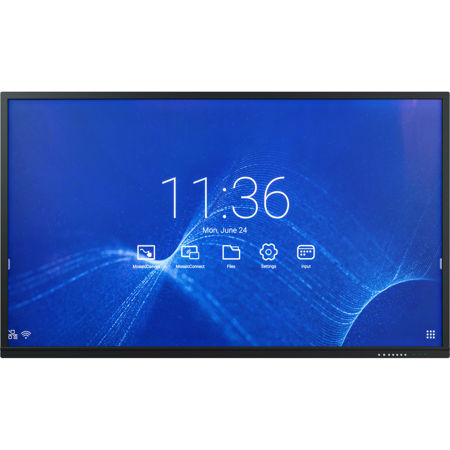

NEC CB Series CB651Q 65" 4K UHD S-IPS Collaborative Touchscreen Display with Built-In SoC and Whiteboarding & Wireless Presenting Software, Built-In Speakers

SKU: NCCB651Q

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

NEC CB651Q Specifications

LCD Module

LCD Module

Jump to...
  • Panel Technology

    S-IPS

  • Viewable Image Size

    65" (165.1cm)

  • Native Resolution

    3840 x 2160

  • Brightness

    350 cd/sq.m (typical)

  • Contrast Ratio (typical)

    1200:1

  • Viewing Angle (typical)

    178 Degree Vertical
    178 Degree Horizontal (89U/89D/89L/89R) @ CR>10

  • Aspect Ratio

    16:9

  • Displayable Colors

    Over 1.07 billion

  • Orientation

    Landscape

  • Panel Haze

    0.28

Connectivity

Jump to...
  • Input Terminals

    Digital: 3x HDMI 2.0
    Analog: VGA mini 15-Pin D-Sub
    Audio: Audio Mini-Jack, 3x HDMI Audio
    External Control: LAN (100Mb), IR Remote, RS-232C

    Data: 6x USB 2.0

  • Output Terminals

    Analog: None
    Audio: Mini-Jack, SPDIF (Optical)
    External Control: LAN

  • Touch

    Anti-glare protective glass, 10pt writing/ 20pt use IR touch, Windows 7/8/8.1/10, Android, Mac OS X, Unbuntu, Chrome

Power Consumption

Jump to...
  • On (Typ/Max Brightness/Overall Max)

    160W

  • Network Standby

    2W

  • Normal Standby

    0.5W

  • Current Rating

    4A @ 100V, 1.6A @ 240V

  • Speaker Rating

    Integrated 12W + 12W

Environmental Conditions

Jump to...
  • Operating Temperature

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Operating Humidity

    10 - 90%

  • Operating Altitude

    Operating 16404' (5000m)

Physical

Jump to...
  • Bezel Width

    0.71/0.71", 0.71/0.71" (L/R, T/B)

  • VESA Hole Configuration

    600 x 400mm M8x4

  • Dimensions (W x H x D)

    Without Stand: 58.6 x 35.31 x 3.44" (1488.4 x 896.9 x 87.4mm)

  • Weight

    Without Stand: 86.3 lbs (39.1kg)

About NEC CB651Q

NEC Collaborative Board: Interactive whiteboarding and wireless presenting running off of built in SoC
NEC's Collaborative Board is an ideal, all-in-one teaching solution utilizing a built in SoC. Preloaded with Interactive Whiteboarding and wireless presenting software that is easy to use and requires no special setup. Whether teaching a classroom of students or a training room filled with professionals, the NEC Collaborative Board offers robust functionality and durability to maximize the sharing of ideas. Intuitive software design provides the user with a natural look and feel to ensure a great experience. NEC Collaborative Board - All in one collaborative solution ideal for teaching and sharing of ideas.

Mosaic Software Suite

Mosaic Connect
• Connect is a wireless presenting tool that allows up to 4 users to connect at once
• Sharing requires connection to the Internet
• Share from any Windows 10, iOS, Android, or Chrome device
• Interface is through either the Connect App which allows for USB control of the device, or through a HTML5 browser like Chrome
• Make notations on top of shared content
• Connectivity is possible across multiple networks with Internet access

Mosaic Canvas
• With Canvas, multiple users can annotate on the display at the same time
• Keep control of your ideas, zooming in & out on the large and flexible
• whiteboard canvas and benefit from the magnifier to keep focused on your detailed working area
• Bring color to your ideas by importing image files and annotating on top of them
• Customize your tool palette and drag and drop the tools you use the most for quick and easy access

Passive Pen
• Passive pen with handy ergonomics, like a pencil
• Magnetic attachment to the front of the display
• Save replacement costs compared to active pens

Benefits
• All you need - the NEC collaborative board ships with integrated touch, SoC, and speakers
• Robust and reliable touch experience - utilizing an integrated 10pt IR touch that can use the included passive pens or finger
• Best in class visual performance - displays are available in 65", 75", and 86" sizes. All of which support UHD resolution
• Software to meet your needs - the SoC comes preloaded with interactive whiteboarding and wireless presenting software
• Versatile compatibility - the Connect wireless presenting software supports Chrome, Windows 10, iOS, and Android operating systems
• Future-proof PC option & reduced footprint - the integrated Slot-In PC using the integrated OPS option slot future-proofs your investment while reducing the product footprint and installation efforts
• Additional inputs that support HDMI 2.0 w/ USB 2.0 connectivity so that touch can be supported by simply switching inputs

NEC CB651Q Features

  • Mosaic Canvas whiteboard software
  • Integrated 10-Point IR Touch
  • Mosaic Connect wireless presentation software
  • Ethernet Control and Communication
  • RS-232 Control and Communication
  • OPS Expansion Slot
  • Fixed/Variable
  • Audio Out
  • Built-In Speakers
  • LED Backlighting

Key Features

  • Mosaic Canvas whiteboard software
  • Mosaic Connect wireless presentation software
  • Ethernet Control and Communication
  • RS-232 Control and Communication
  • OPS Expansion Slot
  • Fixed/Variable

What's in the box:

  • CB651Q 65 " 4K UHD S-IPS Collaborative Touchscreen Display
  • 3x Stylus Pen
  • Wireless Remote Control
  • 2x AAA Batteries
  • Power Cord
  • HDMI Signal Cable
  • VGA Cable
  • USB Cable
  • RS-232C Adapter
  • Clamper
  • User Manual
  • NEC 3 Year Limited Warranty
