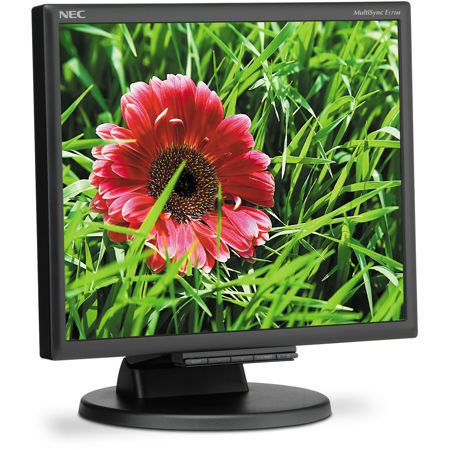

NEC MultiSync E171M 17" LED Desktop Monitor
See all NEC items

NEC MultiSync E171M 17" LED Desktop Monitor, 1280x1024 Resolution, 1000:1 Contrast Ratio, 250cd/m2 Brightness, 5ms Response Time

SKU: NCE171MBK
Be the first to review this item

This item is no longer available.

Recommended Alternatives

NEC MultiSync EA271Q: Picture 1 regular
NEC EA271Q 27" WQHD PLS LED Monitor, Integrated Speakers, SpectraViewII Software
$769.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

NEC MultiSync E171M Specifications

  • Panel Technology

    TN

  • Backlight Type

    W-LED

  • Viewable Image Size

    17"

  • Aspect Ratio

    5:4

  • Native Resolution

    1280x1024

  • Pixel Pitch

    0.26mm

  • Pixels Per Inch

    96 at native resolution

  • Brightness (typical)

    250 cd/m2

  • Contrast Ratio (typical)

    1000:1 (25,000: dynamic)

  • Viewing Angle (typical)

    170deg. Vert., 176deg. Hor. (85U/85D/88L/88R) at CR>5

  • Response Time (typical)

    5ms

  • Displayable Colors

    More than 16.7 million

  • Horizontal Synchronization

    Analog/Digital: 31.5-81.1kHz

  • Vertical Synchronization

    45-76Hz

  • Video

    Analog RGB 0.7 Vp-p/75 Ohms

  • Sync

    Separate Sync: TTL Level (Positive/Negative);
    Composite Sync: TTL Level (Positive/Negative);
    Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive)

  • Input Connectors

    DVI-D and VGA 15-pin D-sub

  • Power Consumption On (typical)

    12W

  • Power Savings Mode (typical)

    0.15W

  • Operating Temperature

    41 to 95deg. F / 5 to 35deg. C

  • Operating Humidity

    20 - 80%

  • Operating Altitude

    6562' / 2000.09m

  • Storage Temperature

    14 to 140deg. F / -10 to 60deg. C

  • Storage Humidity

    10-85%

  • Storage Altitude

    40000' / 12192m

  • ENERGY STAR

    6.0

  • TCO

    6.0

  • EPEAT

    Silver

  • RoHS

    Yes

  • Dimensions (W x H x D)

    With Stand:14.5 x 14.1-16.1 x 9.1" / 368.3 x 358.14-408.94 x 231.14mmWithout Stand:14.5 x 12.6 x 2.4 in. / 368.3 x 320.04 x 60.96mm

  • Weight

    With Stand: 9.3lbs / 4.2 kgWithout Stand: 6.6lbs / 3.0 kg

  • UPC Code

    805736052244

0 Accessories for NEC MultiSync E171M 17" LED Desktop Monitor, 1280x1024 Resolution, 1000:1 Contrast Ratio, 250cd/m2 Brightness, 5ms Response Time

About NEC MultiSync E171M

The NEC MultiSync E171M 17" Desktop Monitor boosts your productivity. It is an eco-conscious LED backlit LCD desktop monitor that enhances your computing experience. The LED backlighting of the E171M allows for lighter weight and increased power savings compared to previous generation models, a carbon footprint meter for tracking the conservation of green gas emissions and Intelligent Power Manager (IPM) system. These advantages, combined with an ergonomic design make this model ideal for corporate environments.

Rapid Response
Delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video.

Ambix
Allows up to two inputs (VGA and DVI-I) to be connected to a single monitor and for each of the three signals to be displayed with the press of a button.

XtraView
Delivers wide viewing angles of up to 176deg. horizontally and vertically (up to 88deg. up, down, left and right) without any glare, reflection or distortion.

No Touch Auto Adjust
Allows the monitor to be automatically adjusted to optimal image settings when initially turned on.

LED Backlight
Provides for industry-leading low power consumption and less hazardous materials.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • NEC MultiSync E171M 17" LED Desktop Monitor
  • Setup Sheet
  • User Manual
  • Power Cord
  • 15-Pin D-Sub Cable
  • DVI-D Cable- NEC 3 Year Backlight and Parts & Labor Limited Warranty
