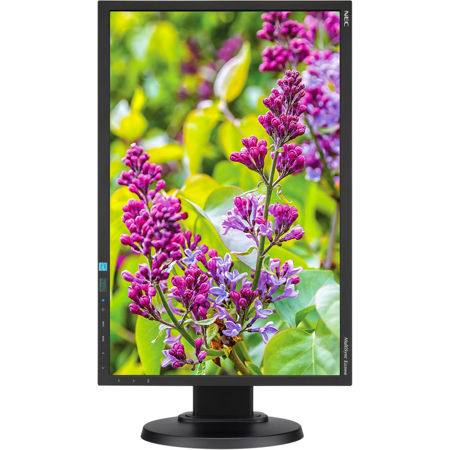

NEC MultiSync E233WMi 23" Widescreen IPS LED Desktop Monitor with Built-In Dual Speaker, 1920x1080

SKU: NCE233WMIBK

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

NEC E233WMi Specifications

  • Panel Technology

    IPS

  • Viewable Image Size

    23"

  • Aspect Ratio

    16:9

  • Native Resolution

    1920 x 1080

  • Pixel Pitch

    0.27mm

  • Pixels Per Inch

    96 at native resolutions

  • Backlight Type

    W-LED

  • Brightness (typical)

    250cd/m2

  • Contrast Ratio (typical)

    1000:1

  • Viewing Angle (typical)

    178 deg. Vert., 178 deg. Hor. (89U/89D/89L/89R) at CR>10

  • Response Time

    Typical: 14ms
    Response Improve = ON: 6ms

  • Displayable Colors

    More than 16.7 million

  • Synchronization Range

    Horizontal (Analog/Digital): 31.5-81.1 KHz
    Vertical: 56-75 Hz

  • Input Signal

    Video: Analog RGB 0.7 Vp-p/75 Ohms
    Sync: Separate Sync: TTL Level (Positive/Negative)

  • Speakers

    2x 1W

  • Input Connectors

    DisplayPort, DVI-D, VGA 15-pin D-sub

  • VESA Hole Configuration

    100 x 100mm (3.94 x 3.94")

  • Power Consumption (typical)

    On: 15W
    Power Savings Mode: 0.3W

  • Operating Temperature

    41 to 95 deg. F (5 to 35 deg. C)

  • Operating Humidity

    20-80%

  • Operating Altitude

    6562' (2000.12m)

  • Storage Temperature

    14 to 140 deg. F (-10 to 60 deg. C)

  • Storage Humidity

    10-85%

  • Storage Altitude

    40000' (12192.15m)

  • Environmental Compliance

    ENERGY STAR: 7.0
    TCO: 7.0
    RoHS: Yes

  • Additional Functions

    ECO Mode
    Carbon footprint meter
    Thin frame
    Tilt
    Swivel
    Pivot
    Height-adjustable stand
    Carrying handle
    Rapid Response
    Ambix
    XtraView
    OSD user controls
    NaViSet software
    Cable management
    VESA mount
    HDCP
    DDC/CI
    No Touch Auto Adjust
    Plug and Play (VESA DDC 1/2B)
    VESA DPMS power management
    Digital smoothing
    Digital controls
    ISO 13406-2 Class II

  • Dimensions (WxHxD)

    With stand: 21.4 x 14.7" - 19.1 x 8.4" (54.36 x 37.34cm - 48.51 x 21.34cm)
    Without stand: 21.4 x 12.7 x 2.1" (54.36 x 32.26 x 5.33cm)

  • Weight

    With stand: 12.6 lbs (5.72kg)
    Without stand: 8.2 lbs (3.72kg)

  • UPC Code

    805736065305

About NEC E233WMi

Save energy and work effectively with the 23" NEC MultiSync E233WMi, a widescreen LCD desktop monitor that looks great and is eco-friendly. The E233WMi features an IPS LED-backlit panel that provides wide viewing angles with low power consumption. NEC's exclusive ECO Mode(TM) and ambient light sensor help save power, reduce heat and extend the life of the display by automatically dimming the brightness level. These advantages, combined with an ergonomic design and a high-contrast screen, make this model ideal for enterprise environments.

• LED backlight technology uses less power than other backlight types
• 4-way ergonomic design (110mm height-adjust, pivot, tilt & swivel) fits any workspace
• DisplayPort, VGA and DVI inputs work with any computer
• Carbon footprint meter helps track and calculate the reduction of green gas emissions
• Dynamic Visual Mode enhances video and images with real-time optimization of brightness, color and contrast
• Works with NaViSet Administrator 2, which greatly eases administration and management of larger display installations

Reduced Footprint
Provides the ideal solution for environments with space constraints that still require superior image quality. The monitor's small footprint and low weight allow it to be moved or transported easily from one location to another.

Color Control Systems
Allow you to adjust the colors on your screen and customize the color accuracy of your monitor to a variety of standards.

OSD (On-Screen Display) Controls
Allow you to quickly and easily adjust all elements of your screen image via simple to use on-screen menus.

NaViSet Administrator 2 Software
Offers an expanded and intuitive graphical interface, allowing you to more easily adjust OSD display settings via network PC.

No Touch Auto Adjust (Analog input only)
Automatically adjusts the monitor to optimal settings upon initial setup.

ErgoDesign Features
Enhanced human ergonomics to improve the working environment, protect the health of the user and save money. Examples include OSD controls for quick and easy image adjustments, tilt base for preferred angle of vision, small footprint and compliance with TCO guidelines for lower emissions.

Plug and Play
The Microsoft solution with the Windows operating system facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance.

Intelligent Power Manager System
Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace.

Multiple Frequency Technology
Automatically adjusts monitor to the display card's scanning frequency, thus displaying the resolution required.

FullScan Capability
Allows you to use the entire screen area in most resolutions, significantly expanding image size.

VESA Standard Mounting Interface
Allows users to connect your monitor to any VESA standard third party mounting arm or bracket.

Environmental Impact (E233WMi)
Annual typical maximum operating carbon footprint of this monitor (world-wide average) is approximately 24.0 kg (calculated by: rated wattage x 8 hours per day x 5 days a week x 45 weeks per year x Power-to-Carbon conversion factor - conversion factor is based on OECD publication of global CO2 emissions 2008 Edition). This monitor has a manufacturing carbon footprint of approximately 50.0 kg.

DisplayPort
DisplayPort is designed to be the future-ready and scalable solution for high performance digital display connectivity. It enables the highest resolutions, the fastest refresh rates and deepest color depths over standard cables.

Low Blue Light
This monitor has a blue light reducing function. This means hazardous light from the monitor is substantially reduced and it allows to free from eyestrain.

Flicker Free
Special backlight system reduces flicker for less eyestrain.

What's in the box:

  • NEC MultiSync E233WMi 23 " Widescreen IPS LED Desktop Monitor with Built-In Dual Speaker
  • Power Cord
  • DisplayPort Cable
  • Setup Sheet
  • NEC 3 Year Parts & Labor and Backlight Limited Warranty
