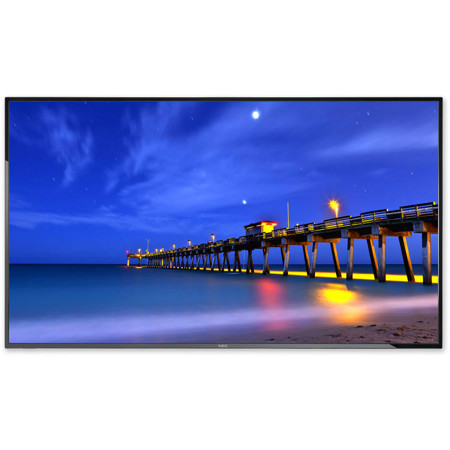

NEC E Series E326 32" S-IPS Full HD Direct-Lit Commercial-Grade LED Monitor with Integrated ATSC/NTSC Tuner & Speakers

SKU: NCE326

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

NEC E326 Specifications

  • Panel Technology

    S-IPS

  • Viewable Image Size

    32"

  • Native Resolution

    1920x1080

  • Pixel Pitch

    0.37mm

  • Backlight Type

    LED Direct-Lit

  • Brightness (typical)

    350cd/m2

  • Contrast Ratio (typical)

    1400:1

  • Viewing Angle

    176 deg. Vertical, 176 deg. Horizontal (88U/88D/88L/88R) at CR>10

  • Response Time(Gray to Gray)

    8ms

  • Refresh Rate

    60Hz

  • Aspect Ratio

    16:9

  • Active Screen Area

    27.5 x 15.5" (698.50 x 393.70mm)

  • Orientation

    Landscape

  • Displayable Colors

    More than 16.7 million

  • Horizontal (Analog/Digital)

    31-83kHz

  • Vertical

    50-75Hz

  • Input Signal: Video

    Analog RGB 0.7 Vp-p/75Ohms

  • Input Signal: Sync

    Separate Sync: TTL Level (Positive/Negative)
    Composite Sync: TTL Level (Positive/Negative)
    Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive)

  • PC Signal Compatibility

    Yes

  • Macintosh Compatibility

    Yes

  • Input Terminal: Digital

    3x HDMI

  • Input Terminal: Analog

    VGA 15-pin D-sub, RCA (Y, Cb/Pb, Cr/Pr) Component

  • Input Terminal: Audio

    HDMI Audio, Stereo Mini-Jack

  • Input Terminal: External Control

    RS-232C

  • Output Terminal: Audio

    SPDIF

  • Power Consumption: Speaker Rating

    5W x 5W

  • Power Consumption: On

    60W (typical)

  • Power Consumption: ECO Mode Standby

    <0.5W (typical)

  • Power Consumption: Current Rating

    0.9A at 120V

  • Bezel Width

    Left/Right/Top: 0.47" (11.94mm)
    Bottom: 0.63" (16mm)

  • VESA Hole Configuration

    4x M4 x 12mm (100 x 100)

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Operating Humidity

    10-80%

  • Operating Altitude

    6562' (2000m)

  • Storage Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage Humidity

    5-85%

  • Storage Altitude

    35000' (10668m)

  • Additional Functions

    Built-in NTSC/ATSC (8-VSP, Clear QAM) analog/digital tuner
    Variable picture modes (Dynamic Standard/Energy Savings/Theater/Custom)
    Advanced Video/Audio Settings
    Sleep Timer
    Built-In closed captioning
    Parental Control (V-Chip Function)
    Video Signal Wake-Up Function
    USB Port

  • Dimensions (WxHxD)

    With Stand: 28.6 x 18.2 x 10" (726.44 x 462.28 x 254mm)
    Without Stand: 28.6 x 16.7 x 3" (726.44 x 424.18 x 76.20mm)

  • Weight

    With Stand: 11.7 lbs (5.31kg)
    Without Stand: 10.6 lbs (4.81kg)

  • UPC Code

    805736063561

About NEC E326

The 32" NEC E326, a full HD, direct-lit, commercial-grade display, is ideal for education, corporate and other digital signage applications. Compared to previous generation displays, this model's LED backlighting allows for reduced power consumption, a thinner depth, a smaller bezel and lighter weight. The E326's integrated tuner and speakers allow users to enjoy high-definition broadcast capabilities. This display also features a USB player in which video, audio or JPEG picture files can be loaded and played in sequence for signage purposes.

• Integrated multimedia USB player makes digital signage simple
• LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
• Thinner bezel improves display's aesthetics
• 24-Hour On/Off timer maintains power schedules
• Full HD Resolution allows for excellent image quality
• Video signal wake-up function allows for plug and play functionality
• Built-in NTSC/ATSC analog/digital tuner allows for high-definition broadcast capabilities
• Built-in, low-profile 5W speakers enhance the experience with superior sound

1080p native resolution (1920x1080)
High resolution provides detailed display of text, graphics and images. HD video is displayed in 16:9 wide aspect ratio.

USB Viewer
Permits playback (without a PC) of presentations or display images stored as JPG files from a USB flash drive.

Built-In NTSC/ATSC (8-VSP, Clear QAM) analog/digital tuner
Allows for high-definition broadcast capabilities.

What's in the box:

  • NEC E Series E326 32" S-IPS Full HD Direct-Lit Commercial-Grade LED Monitor with Integrated ATSC/NTS
  • Power Cord
  • VGA Cable (Mini 15-Pin D-Sub)
  • Wireless Remote Control
  • 2x 1.5V AAA Battery
  • CD-ROM (User Manual)
  • NEC 3 Year Parts/Labor & Backlight Limited Warranty
