NEC 50" LED Backlit Commercial-Grade Display with Integrated ATSC/NTSC Tuner

SKU: NCE506

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

NEC Commercial-Grade Display Specifications

Display

Display

Jump to...
  • Panel Technology

    VA

  • Viewable Image Size

    50"

  • Native Resolution

    1920 x 1080

  • Pixel Pitch

    0.57mm

  • Backlight Type

    LED Direct-lit

  • Brightness (typical)

    350cd/m square

  • Contrast Ratio (typical)

    3000:1

  • Viewing Angle

    176 Degree Vertical, 176 Degree Horizontal (88U/88D/88L/88R) @ CR>10

  • Response Time (Gray to Gray)

    8ms

  • Refresh Rate

    60Hz

  • Aspect Ratio

    16:9

  • Active Screen Area

    43.1 x 24.3" (109.5 x 61.64 cm)

  • Orientation

    Landscape

  • Displayable Colors

    More than 16.7 million

Synchronization Range

Jump to...
  • Horizontal (Analog/Digital)

    31-83 kHz

  • Vertical

    56-75 Hz

Input Signal

Jump to...
  • Video

    Analog RGB 0.7 Vp-p/75 Ohms

  • Sync

    Separate sync: TTL Level (Positive/Negative)
    Composite sync: TTL Level (Positive/Negative)
    Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Connectivity

Jump to...
  • PC Signal Compatibility

    Yes

  • Macintosh Compatibility

    Yes

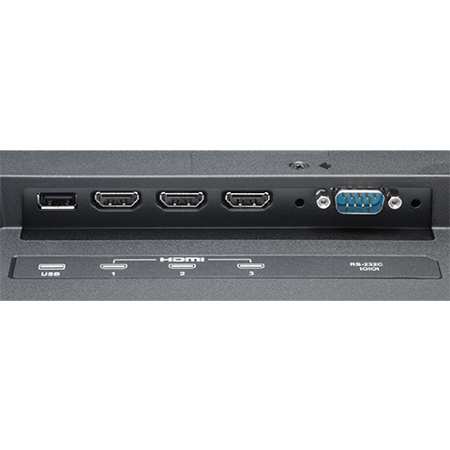

  • Input Terminal Digital

    HDMI (3)

  • Input Terminal Analog

    VGA 15-pin D-sub, Component, Composite (shared with Component)

  • Input Terminal Audio

    HDMI Audio, Stereo Mini-Jack

  • Input Terminal External Control

    RS-232C

  • Output Terminal Audio

    SPDIF

Power Consumption (typical)

Jump to...
  • On

    109W

  • ECO Mode Standby

    <0.5W

VESA Hole Configuration

Jump to...
  • VESA Hole

    4 x M6 x 15 mm (400 x 200)

Environmental Conditions

Jump to...
  • Operating Temperature

    32-104 Degree F (0-40 Degree C)

  • Operating Humidity

    10-80%

  • Operating Altitude

    6562' (2000m)

  • Storage Temperature

    32-104 Degree F (0-40 Degree C)

  • Storage Humidity

    5-85%

  • Storage Altitude

    40,000' (12,192 m)

Physical Specifications

Jump to...
  • Bezel Width (Left/Right, Top/Bottom)

    0.47"/0.47", 0.47"/0.57"; 11.9mm/11.9mm, 11.9mm/14.4mm

  • Dimensions (W x H x D)

    Without stand: 44.2 x 25.5 x 3.0" (112.36 x 64.67 x 7.7 cm)

  • Weight

    Without stand: 28.4 lb (17.5 kg)

  • UPC Code

    805736063585

About NEC Commercial-Grade Display

The 50" NEC E505, a direct-lit, commercial-grade display, is ideal for education, corporate and other digital signage applications. Compared to previous generation displays, this model's LED backlighting allows for reduced power consumption, a thinner depth, a smaller bezel and lighter weight. Full HD resolution delivers stunning image quality for a variety of content, and the E506's integrated tuner and speakers allow users to enjoy high-definition broadcast capabilities. This display also features a USB player in which video, audio or JPEG picture files can be loaded and played in sequence for signage purposes.

NEC Commercial-Grade Display Features

  • Integrated multimedia USB player makes digital signage simple
  • LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
  • Thinner bezel improves display's aesthetics
  • 24-Hour On/Off timer maintains power schedules
  • Full HD Resolution allows for excellent image quality
  • Video signal wake-up function allows for plug and play fucntionality
  • Built-in NTSC/ATSC analog/digital tuner allows for high-definition broadcast capabilities
  • Built-in, low-profile 10W speakers enhance the experience with superior sound
  • Built-in NTSC/ATSC (8-VSP, Clear QAM) analog/digital tuner
  • Variable picture modes (Dynamic Standard/Energy Savings/Theater/Custom)
  • Advanced Video/Audio Settings
  • Sleep Timer
  • Built-In closed captioning
  • Parental Control (V-Chip Function)
  • Video Signal Wake-Up Function
  • USB Port

Key Features

  • Integrated multimedia USB player makes digital signage simple
  • LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
  • Thinner bezel improves display's aesthetics
  • 24-Hour On/Off timer maintains power schedules
  • Full HD Resolution allows for excellent image quality
  • Built-in NTSC/ATSC analog/digital tuner allows for high-definition broadcast capabilities

What's in the box:

  • 50" LED Backlit Commercial-grade Display with Integrated ATSC/NTSC Tuner
  • Power Cord
  • VGA Cable (Mini 15-pin D-sub)
  • Wireless Remote Control
  • Batteries
  • CD-ROM (User Manual)
  • NEC 3 Year Warranty
