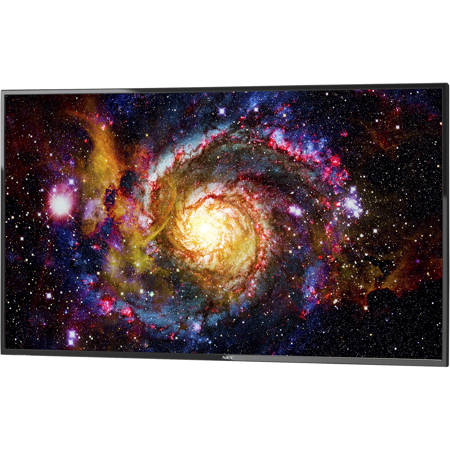

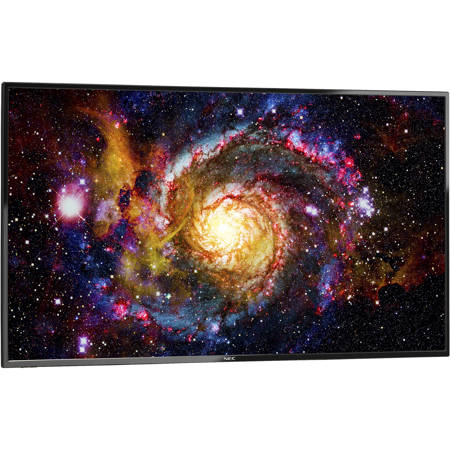

NEC E507Q 50" 4K Ultra HD Commercial LED Public Display with Built-In Speakers

SKU: NCE507Q

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

NEC E507Q Specifications

Display

Display

Jump to...
  • Screen Size (Diagonal)

    50"

  • Resolution

    3840 x 2160

  • Panel Type

    VA LCD

  • Bit Depth / Color Support

    10-Bit (1.07 Billion Colors)

  • Brightness

    350 cd/sq.m (Typical)
    300 cd/sq.m (Minimum)

  • Viewing Angle (H x V)

    178 x 178 Degree

  • Screen Area

    43.1 x 24.3" (1094.74 x 617.22mm)

  • Aspect Ratio

    16:9

  • Contrast Ratio

    4000:1

  • Response Time

    8 ms (GtG)

  • Refresh Rate

    60 Hz

  • Horizontal Frequency

    15 to 134 kHz

  • Vertical Frequency

    23 to 70 Hz

  • Dot Pitch

    0.29 x 0.29 mm

  • Backlighting Technology

    Direct LED

Connectivity

Jump to...
  • Primary Connectivity Location

    Display

  • Input Ports

    3x HDMI 2.0 Audio, Video
    1x RF Antenna Audio, Video
    1x 15-Pin VGA Video
    1x RCA Component/Composite Combo Video
    1x RCA Stereo (L/R) Audio
    1x 1/8" (3.5mm) Audio

  • Output Ports

    1x TOSLINK Optical - Audio

  • USB Ports

    1x USB (Version Unspecified) Type-A - Audio/Photo/Video
    1x USB (Version Unspecified) Type-A

  • Ethernet Ports

    1

  • Other I/O

    1x RS-232C Control Input

General

Jump to...
  • TV Tuner

    Yes - ATSC, Clear QAM

  • Display Orientation

    Landscape

  • HDCP Support

    Yes

  • Built-In Speakers

    Yes, 2x 10 W

  • Speaker Configuration

    2-Channel

Convenience

Jump to...
  • Analog Video Formats

    NTSC

  • Supported Video File Types

    AVI, H.263, H.264/AVC, MJPEG, MKV, MP4, MPEG, MPEG2, MPG, WMV

  • Supported Audio File Types

    MP3

  • Supported Photo File Types

    JPE, JPEG, JPG

  • Supported Languages

    English
    French
    Spanish

Electrical

Jump to...
  • Power Consumption

    Typical: 97.0 W
    Maximum: 150.0 W
    Standby: 0.5 W
    Network Standby: 2.0 W

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz at 0.7 to 1.7 A

Environmental

Jump to...
  • Operating Temperature

    32 to 122 Degree F (0 to 50 Degree C)

  • Storage Temperature

    14 to 140 Degree F (-10 to 60 Degree C)

  • Operating Humidity

    0 to 90%

  • Storage Humidity

    5 to 85%

  • Operating Altitude

    0.00 to 6561' (0 to 2000m)

  • Storage Altitude

    40,000' (12,192m)

  • Certifications

    ENERGY STAR

Physical

Jump to...
  • Wall Mounting

    400 x 200mm

  • Bezel Thickness

    11.9 mm (Right/Top/Left)
    14.4 mm (Bottom)

  • Battery Info

    No battery used

  • Battery Material

    -

  • Battery Quantity

    0

  • Battery Type

    -

  • Dimensions

    44.2 x 25.5 x 3.0" (112.3 x 64.8 x 7.6cm)

  • Weight

    27.3 lbs (12.38kg)

  • UPC Code

    805736069723

About NEC E507Q

The 50" NEC E507Q, a direct-lit, commercial-grade display, is ideal for education, corporate and other digital signage applications. Compared to previous generation displays, this model's 4K UHD resolution and LED direct backlighting allows for higher visual acuity, reduced power consumption and localized dimming that gives a higher dynamic contrast ratio.

The E507Q has an integrated ATSC/NTSC tuner and dual 10W speakers allow users to enjoy high-definition broadcast capabilities. This display also features a USB player in which video, audio or JPEG picture files can be loaded and played in sequence for signage purposes.

The Essentials
NEC' s new E-series, a direct-LED-lit, commercial-grade display, is ideal for education, corporate and other digital signage applications. Compared to previous generation displays, this new series' 4K UHD resolution and HDR support with direct LED backlighting allows for higher visual acuity, reduced power consumption and localised dimming that gives a higher dynamic contrast ratio. This series has an integrated LAN network function and dual 10W speakers that allow users to enjoy a wide variety of application capabilities.

These displays also feature a USB player in which video, audio or JPEG picture files can be loaded and played in a desired order.

NEC E507Q Features

  • 4K UHD resolution allows for high end visual acuity
  • Integrated multimedia USB player makes digital signage simple
  • Direct LED backlighting reduces power consumption while localised dimming gives a greater dynamic contrast ratio
  • Thinner bezel improves display's aesthetics
  • 24-Hour On/Off timer with real time clock maintains power schedules
  • Video signal wake-up function allows for plug and play functionality
  • Built-in, low-profile 10 W speakers enhance the experience with superior sound
  • NaViSet Administrator2, Crestron Room View / Crestron Control are provided as standard
  • Powered USB Ports supply devices power directly (5V / 2A max)
  • An integrated ambient light sensor manages auto dimming

Key Features

  • 4K UHD resolution allows for high end visual acuity
  • Integrated multimedia USB player makes digital signage simple
  • Thinner bezel improves display's aesthetics
  • 24-Hour On/Off timer with real time clock maintains power schedules
  • Video signal wake-up function allows for plug and play functionality
  • Built-in, low-profile 10 W speakers enhance the experience with superior sound

What's in the box:

  • NEC E507Q 50" 4K Ultra HD Commercial LED Public Display
  • Wireless Remote Control with Batteries
  • 6.6' HDMI Cable
  • 9.8' Power Cord
  • User Manual
  • NEC 3 Year Limited Warranty
