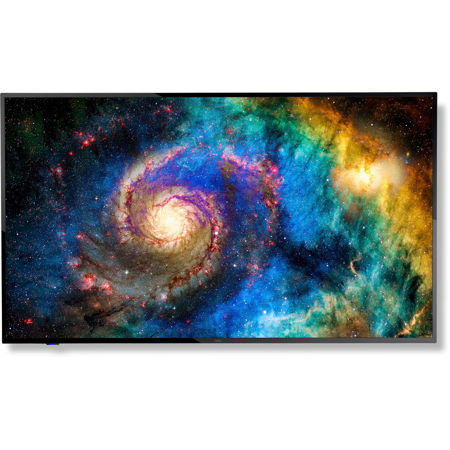

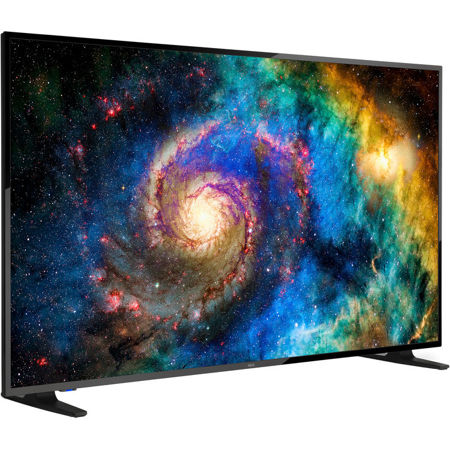

NEC E657Q 65" Class 4K UHD Commercial LED Display with Integrated ATSC/NTSC Tuner and Built-In Speakers, 3840x2160

SKU: NCE657Q

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

NEC E657Q Specifications

Display

Display

Jump to...
  • Panel Technology

    VA

  • Aspect Ratio

    16:9

  • Pixel Pitch

    0.37mm

  • Brightness (typical)

    350 cd/m2

  • Viewing Angle (typical)

    178 deg. Vert., 178 deg. Hor. (89U/89D/89L/89R) at CR>20

  • Refresh Rate

    60Hz

  • Orientation

    Landscape

  • Viewable Image Size

    65"

  • Native Resolution

    3840x2160

  • Backlight Type

    LED Direct-lit

  • Contrast Ratio (typical)

    4000:1

  • Response Time (Gray to Gray)

    8 ms

  • Active Screen Area

    56.2 x 31.6" (142.75 x 80.26cm)

  • Displayable Colors

    More than 1.07 billion

Synchronization Range

Jump to...
  • Horizontal (Analog/Digital)

    15.0 - 134.0kHz

  • Vertical

    23.0 - 70.0Hz

Signal Compatibility/Connectivity

Jump to...
  • PC Signal Compatibility

    Yes

  • Macintosh Signal Compatibility

    Yes

Input Terminals

Jump to...
  • Analog

    VGA 15-pin D-sub, Component, Composite (shared with Component)

  • Digital

    HDMI (3 x 2.0)

  • Audio

    HDMI Audio, Audio Mini-Jack, RCA Audio (L/R)

  • External Control

    RS-232C, LAN (one at a time)

  • Input Data

    USB 2.0 (Media Player), USB 2.0 (Power)

Output Terminals

Jump to...
  • Audio

    SPDIF

Power Consumption (Typical)

Jump to...
  • On

    118W

  • Power Consumption (max)

    170 W

  • ECO Mode Standby

    <0.5W

  • Input Current

    0.8 - 1.9A at 100-240V

Environmental Conditions

Jump to...
  • Operating Temperature

    32 to 122 deg. F (0 to 50 deg. C)

  • Operating Altitude

    6563' (2000.43m)

  • Storage Humidity

    5-85%

  • Operating Humidity

    0-90%

  • Storage Temperature

    14 to 140 deg. F (-10 to 60 deg. C)

  • Storage Altitude

    40,000' (12192.15m)

Environmental Compliance

Jump to...
  • ENERGYSTAR

    Yes

General

Jump to...
  • Bezel Width (Left/Right, Top/Bottom)

    0.63"/0.63", 0.63"/0.78" ; 16mm/16mm, 16mm/19.81mm

  • VESA Hole Configuration

    4 x M6 x 15mm (400 x 200)

  • Dimensions (WxHxD)

    Without stand: 57.6 x 33.9 x 3.8" (146.30 x 86.11 x 9.65cm)

  • Weight

    Without stand: 52.5 lbs (23.81kg)

  • UPC Code

    805736069761

About NEC E657Q

The 65" NEC E657Q, a direct-lit, commercial-grade display, is ideal for education, corporate and other digital signage applications. Compared to previous generation displays, this model's 4K UHD resolution and LED direct backlighting allows for higher visual acuity, reduced power consumption and localized dimming that gives a higher dynamic contrast ratio. The E657Q has an integrated ATSC/NTSC tuner and dual 10W speakers allow users to enjoy high-definition broadcast capabilities. This display also features a USB player in which video, audio or JPEG picture files can be loaded and played in sequence for signage purposes.

NEC E657Q Features

  • 4K UHD resolution allows for high end visual acuity
  • Integrated multimedia USB player makes digital signage simple
  • Direct LED backlighting reduces power consumption while localized dimming gives a greater dynamic contrast ratio
  • Thinner bezel improves display's aesthetics
  • 24-Hour On/Off timer maintains power schedules
  • Video signal wake-up function allows for plug and play functionality
  • Built-in NTSC/ATSC analog/digital tuner allows for high-definition broadcast capabilities
  • Built-in, low-profile 10W speakers enhance the experience with superior sound
  • Variable picture modes (Dynamic/Standard/Energy Savings/Theater/Game/Custom)
  • Advanced Video/Audio Settings
  • HDR Emulation
  • Variable Sound Modes (Standard/Movie/Music/News/Custom)
  • CEC Communication
  • First and Custom Detect Options
  • Sleep Timer
  • Built-In closed captioning
  • Parental Control (V-Chip Function)
  • Video Signal Wake-Up Function
  • LAN or RS232 Communication (limited)
  • USB Power Port

What's in the box:

  • NEC E657Q 65 " Class 4K UHD Commercial LED Display
  • 9.8' Power Cord
  • 6.6' HDMI Cable
  • Wireless Remote Control
  • 2x Batteries
  • User Manual
  • NEC 3 Year Parts and Labor Limited Warranty
