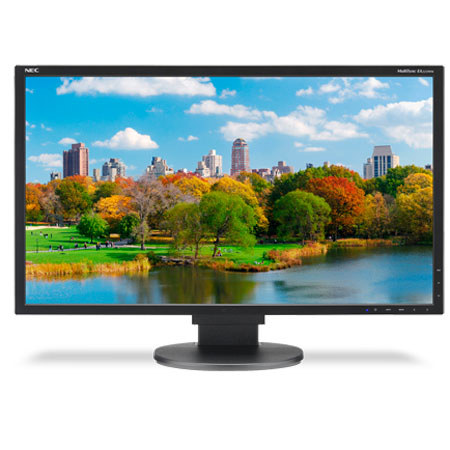

NEC EA223WM 22" LED-Backlit Desktop Monitor
See all NEC items

NEC EA223WM 22" LED-Backlit Desktop Monitor with Adjustable Stand, 1680x1050 Resolution, 250 cd/m2 Brightness, 1000:1 Contrast Ratio

SKU: NCEA223WMBK

This item is no longer available.

Recommended Alternatives

NEC AccuSync AS194Mi: Picture 1 regular
NEC AccuSync AS194Mi 19" 5:4 IPS LCD Desktop Monitor, LED Backlighting,1280x1024
$233.99
NEC MultiSync EA271Q: Picture 1 regular
NEC MultiSync EA271Q 27" WQHD Desktop PLS LED Monitor, Integrated Speakers
$635.00
NEC MultiSync EA271Q: Picture 1 regular
NEC EA271Q 27" WQHD PLS LED Monitor, Integrated Speakers, SpectraViewII Software
$769.00
See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

NEC EA223WM Specifications

  • Panel Technology

    TN

  • Viewable Image Size

    22"

  • Aspect Ratio

    16:10

  • Native Resolution

    1680 x 1050

  • Pixel Pitch

    0.28mm

  • Pixels Per Inch

    90 native resolution

  • Backlight Type

    W-LED

  • Brightness (typical)

    250cd/m2

  • Contrast Ratio (typical)

    1000:1

  • Viewing Angle (typical)

    178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) @ CR>5

  • ResponseTime (typical)

    5ms

  • Displayable Colors

    More than 16.7 million

  • Synchronization Range

    Horizontal (Analog/Digital): 31.5-82.3 kHz
    Vertical: 56-75 Hz

  • Input Signal: Video

    Analog RGB 0.7 Vp-p/75 Ohms

  • Input Signal: Sync

    Separate Sync: TTL Level (Positive/Negative)
    Composite Sync: TTL Level (Positive/Negative)
    Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive)

  • Power Consumption (typical): On

    23W

  • Power Savings Mode

    0.4W

  • VESA Hole Configuration

    100 x 100mm

  • Operating Temperature

    41-95deg.F / 5-35deg.C

  • Operating Humidity

    20-80%

  • Operating Altitude

    6562 ft. / 2000m

  • Storage Temperature

    14-140deg.F / -10-60deg.C

  • Storage Humidity

    10-85%

  • Storage Altitude

    40,000 ft. / 12,192m

  • Environmental Compliance: ENERGY STAR

    5.1

  • Environmental Compliance: TCO

    5.2

  • Environmental Compliance: EPEAT

    Silver

  • Environmental Compliance: RoHS

    Yes

  • Dimensions (W x H x D)

    With stand:19.8 x 15.1-20.2 x 8.6 in (502.92 x 383.54-513 x 218.44mm)
    Without stand: 19.8 x 13 x 2.4 in (503.5 x 330.2 x 60.96mm)

  • Weight

    With stand: 12.3 lbs (5.6 kg)
    Without stand: 7.3 lbs (3.3 kg)

  • UPC Code

    805736039757

About NEC EA223WM

Equip your desktop with high performance, advanced technologies and a full feature set with the 22" NEC MultiSync EA223WM, a widescreen, eco-friendly display ideal for corporate users. The LED backlighting of the EA223WM allows for a slimmer profile, lighter weight and increased power savings compared to previous generation models. It offers touch-sensitive controls that are integrated into the bezel, making display adjustments easier and more intuitive than ever. Smart sensing technology automatically detects your work conditions to determine the proper display brightness with ambient light and human sensors. A comprehensive input panel, including DisplayPort, DVI-D and VGA, connects users to the latest peripherals and future-proofs the investment.

NEC EA223WM Features

  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • Height-adjust, pivot, tilt and swivel capabilities add flexibility and comfort to your viewing preferences
  • Full connectivity, including DisplayPort, DVI-D and VGA inputs
  • Touch-sensitive OSD controls are integrated into the bezel, making display adjustments easier than ever
  • Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness, thereby conserving power
  • ECO Mode allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
  • ENERGY STAR 5.1, TCO 5.2 and EPEAT Silver compliance

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • ECO Mode allows you to manually adjust the display's brightness to your liking
  • Touch-sensitive OSD controls are integrated into the bezel
  • LED backlight Technology
  • Height-adjust

What's in the box:

  • NEC EA223WM 22 " LED-Backlit Desktop Monitor
  • Setup Sheet
  • User Manual
  • Power Cord
  • 15-Pin D-Sub Cable
  • DVI-D Cable
  • USB Cable
  • Audio Cable
  • ControlSync Cable
  • NEC 3 Year Parts and Labor Limited Warranty
