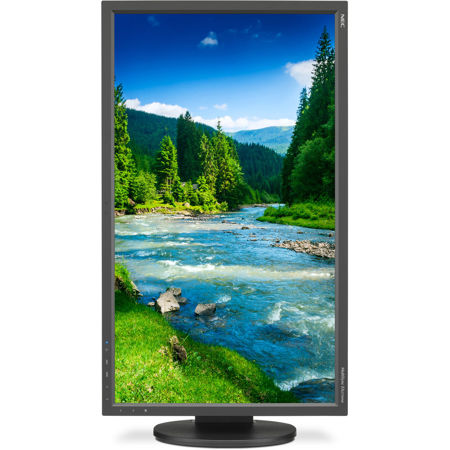

NEC EA275WMI 27" MultiSync Widescreen WQHD IPS Desktop Monitor, 2560x1440

SKU: NCEA275WMBK

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

NEC EA275WMI Specifications

  • Panel Technology

    AH-IPS

  • Viewable Image Size

    27"

  • Aspect Ratio

    16:9

  • Native Resolution

    2560 x 1440

  • Pixel Pitch

    0.23mm

  • Pixels Per Inch

    109 at native resolution

  • Backlight Type

    W-LED

  • Resolutions Supported

    720 x 400: VGA text
    640 x 480 at 60 Hz to 75 Hz
    800 x 600 at 56 Hz to 75 Hz
    832 x 624 a 75 Hz
    1024 x 768 at 60 Hz to 75 Hz
    1152 x 870 at 75 Hz
    1280 x 1024 at 60 Hz to 75 Hz
    1400 x 1050 at 60 Hz
    1440 x 900 at 60 Hz
    1920 x 1080 at 60 Hz
    2560 x 1440 at 50 Hz (DVI-I Analog)
    2560 x 1440 at 60 Hz (Digital)

  • PWM Frequency

    20KHz

  • Brightness (typical)

    350cd/m2

  • Contrast Ratio (typical)

    1000:1

  • Viewing Angle (typical)

    178 deg. Vert., 178 deg. Hor. (89U/89D/89L/89R) at CR>10

  • Response Time (typical)

    6ms

  • Displayable Colors

    16.8 million

  • Horizontal (Analog/Digital)

    31.5 KHz - 83.0 KHz / 31.5 KHz - 91.0 KHz

  • Vertical

    56.0 Hz - 75.0 Hz

  • Video

    Analog RGB 0.7 Vp-p/75 Ohms

  • Sync

    Composite sync: TTL Level (Positive/Negative) Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

  • Input Connectors

    DisplayPort, DVI-I, HDMI

  • Output Connectors

    DisplayPort 1.2 (SST / MST)

  • Power Consumption (typical)

    On: 61W
    Power Savings Mode: 0.47W

  • VESA Hole Configuration

    100 x 100mm

  • Operating Temperature

    41 to 95 deg. F (5 to 35 deg. C)

  • Operating Humidity

    20-80%

  • Operating Altitude

    16404' (5000.00m)

  • Storage Temperature

    14 to 140 deg. F (-10 to 60 deg. C)

  • Storage Humidity

    10-85%

  • Storage Altitude

    40000' (12192.15m)

  • Additional Functions

    PBP mode, PBP button, Tilt, Swivel, Pivot, Height-adjustable stand, ControlSync, Customize Setting, Integrated speakers, 3-port USB 3.0 hub, LED backlit, Auto brightness with ambient light sensor, Human sensor, ECO Mode, Carbon footprint meter, Resettable cost meter, Thin frame, Carrying handle, Rapid ResponseXtraView, Hot Key, Touch OSD controls, OSD Lock Out

  • Additional Functions (Cont.)

    Cable management, NaViSet software, VESA mount, HDCP, DDC/CI, Plug and Play (VESA DDC2B), VESA DPMS power management, Uniformity correction, UHD upscaling, Digital controls, ISO 9241-307 Class I, DICOM SIM

  • TCO

    6

  • RoHS

    Yes

  • Power Supply

    AC 100-240 V - 50/60 Hz

  • Current Rating

    1.0 - 0.5 A (with USB and Audio)

  • Practical Audio Output

    1.0 W + 1.0 W

  • Dimensions (WxHxD)

    With Stand: 25.2 x 16.5-21.6 x 9.1" (64.01 x 41.91-54.86 x 23.11cm)
    Without stand: 25.2 x 14.9 x 2.8" (64.01 x 37.85 x 7.11cm)

  • Weight

    With Stand: 19.2 lbs (8.71kg)
    Without stand: 12.8 lbs (5.81kg)

  • UPC Code

    805736056846

6 Accessories for NEC EA275WMI 27" MultiSync Widescreen WQHD IPS Desktop Monitor, 2560x1440

  • All Accessories (6)
  • Cables & Adapters (4)
  • Cleaning Accessories (2)

About NEC EA275WMI

27" Widescreen WQHD Desktop Monitor with IPS Panel
The 27" NEC MultiSync EA275WMi is a WQHD LCD designed for multiple-monitor configurations. This widescreen model features IPS panel technology with wide viewing angles (178deg. horizontal/vertical) and an LED backlight for a slimmer profile, lighter weight and increased power savings. This model also features a height-adjustable stand (130mm) and full connectivity with DisplayPort, HDMI and DVI-I inputs as well as a DisplayPort output. The EA275WMi includes touch-sensitive On Screen Display controls, a Picture by Picture (PBP) mode for two inputs onscreen at the same time, streamlined cable management and ControlSync technology, which allows users to control the settings of up to six units in a multi-monitor configuration.

• High resolution IPS panel with wide viewing angles for excellent image reproduction
• Full connectivity, including DisplayPort, HDMI AND DVI-I inputs
• Touch-sensitive OSD controls are integrated into the bezel, making display adjustments easier than ever
• Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness and conserve power
• Fully adjustable quick-release stand, including height-adjust (130mm), pivot, tilt and swivel capabilities, adds flexibility and comfort to your viewing preferences
• ECO Mode allows for up to 56% more power conservation (vs. typical power settings), reducing your energy costs
• Compatible with SpectraViewII calibration software and the SVII-EA-KIT calibration kit
• Available with SpectraViewII Entry Level Color Calibration Kit (EA275WMi-BK-SV)

Technology

Ambient Light Sensor
Automatically adjusts the backlight and power management depending on the ambient lighting brightness.

LED Backlight
Provides for industry-leading low power consumption and less hazardous materials.

Ambix
Allows up to two inputs (VGA and DVI-I) to be connected to a single monitor and for each of the three signals to be displayed with the press of a button.

Carbon Footprint Meter
Informs and motivates responsible use of the display by calculating and tracking the conservation of green gas emissions in real time.

ControlSync
Allows users to control up to six units in a multi-monitor configuration. Upon establishing one unit as the master, users will be able to control many performance attributes of the multi-monitor setup in unison through the single monitor.

Human Sensor
Monitors the presence of a user in front of the display and can go into power saving mode if the user leaves, saving up to 99% power.

No Touch Auto Adjust
Allows the monitor to be automatically adjusted to optimal image settings when initially turned on.

Rapid Response
Delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video.

XtraView+
Delivers wide viewing angles of up to 178deg. horizontally and vertically (up to 89deg. up, down, left and right) with less color shift and without any glare, reflection or distortion.

What's in the box:

  • NEC EA275WMI 27 " MultiSync Widescreen WQHD IPS Desktop Monitor
  • Power Cord
  • DisplayPort Cable
  • USB Cable
  • ControlSync Cable
  • NEC 3 Year Parts & Labor and Backlight Warranty
