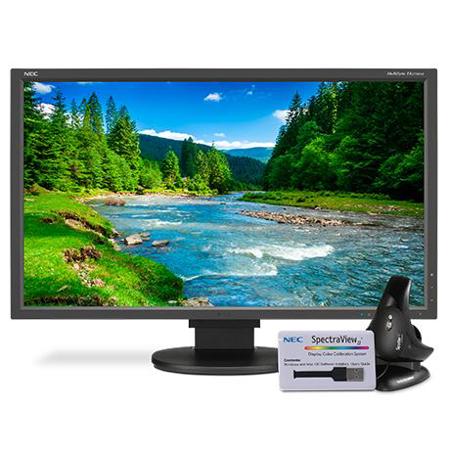

NEC EA275WMI 27" Widescreen WQHD IPS LED Monitor with SpectraView II, 2560x1440

The 27" NEC MultiSync EA275WMi with SpectraViewII is a WQHD LCD designed for color accuracy for online content development. This widescreen model features an sRGB gamut IPS panel technology with wide viewing angles (178 deg. horizontal/vertical) and an LED backlight for a slimmer profile, lighter weight and increased power savings. This model also features a height-adjustable stand (130mm) and full connectivity with DisplayPort, HDMI and DVI-I inputs as well as a DisplayPort output.

The EA275WMi includes touch-sensitive On Screen Display controls, a Picture by Picture (PBP) mode for two inputs onscreen at the same time, streamlined cable management and ControlSync technology, which allows users to control the settings of up to six units in a multi-monitor configuration. The included SpectraViewII software and Spyder5 color calibration sensor ensure that colors are rendered accurately.

• High resolution IPS panel with wide viewing angles for excellent image reproduction
• Full connectivity, including DisplayPort, HDMI AND DVI-I inputs
• Touch-sensitive OSD controls are integrated into the bezel, making display adjustments easier than ever
• Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness and conserve power
• Fully adjustable quick-release stand, including height-adjust (130mm), pivot, tilt and swivel capabilities, adds flexibility and comfort to your viewing preferences
• ECO Mode allows for up to 56% more power conservation (vs. typical power settings), reducing your energy costs
• Includes the SpectraViewII calibration software and the CC-SPYDER5 color calibration sensor

Cutting-Edge Technology
High performance AH-IPS LCD panels provide wide viewing angles of up to 178 deg. and deliver great color in every environment.

• ControlSync enables multi-monitor setups of up to six monitors and controls up to 26 settings
• Human sensor automatically dims your monitor when you're away, saving power
• Includes SpectraViewII software and Datacolor Spyder5 color sensor

A Perfect Fit For Your Workspace
Future-proof connectivity, great ergonomics and a VESA mount to fit every desk and office environment.

• DisplayPort and HDMI inputs connect to most PC and Mac computers
• Four-way ergonomic stand includes pivot, swivel, tilt and height-adjustment up to 130mm
• VESA-standard mounting holes for multi-display setups

How It Works
The SpectraViewII system uses a colorimeter to take color measurements of the display screen during calibration. The software analyzes these measurements and sends color adjustment commands directly to the display monitor. All adjustments are made in the monitor rather than in the video graphics adapter, resulting in full use of the number of colors available on the graphics adapter and a much brighter image with the maximum possible color gamut.

Since the video graphics adapter is not used at all to make any gamma or tone response curve corrections to the display, so the full color resolution and fidelity of the system is maintained and the display remains calibrated for all digital video inputs.

Multiple Calibration Targets
Different monitor calibrations can be instantly loaded, allowing quick and easy switching between different calibration settings without the need to re-calibrate the display. These calibration targets contain many settings, including luminance, contrast ratio, color gamuts and gamma curves. Each time a calibration set is loaded, the necessary monitor settings and ICC/ColorSync profiles are automatically updated.

Calibrated Display Information
At the end of each monitor calibration, an information window is displayed that includes a wealth of information about the display such as the measured color gamut, grayscale color tracking, Delta-E and luminance values as well as the model name, serial number and the total hours of use.

Monitor Profiling
After calibration, the display is automatically profiled and highly accurate ICC/ ColorSync color profiles are generated and automatically registered with the computer's color management system.

Calibration Status Validation
SpectraViewII will query each calibrated monitor to see if any controls have changed since the last calibration. If anything has changed, the previous calibrated state can be restored automatically.

Colorimeter Function
The software features a colorimeter function, which allows direct measurements to be taken by the color sensor and the results displayed in a variety of different formats.

USB & Display Data Channel Command Interface (Ddc/Ci) Communications
SpectraViewII communicates with the monitor using either USB or DDC/CI, which is a two-way communications link between the video graphics adapter and display monitor using the standard video signal cable.

Monitor Locking
Once calibrated, the On Screen Display (OSD) controls for the display monitors can be locked to prevent accidental or unauthorized adjustment, which may invalidate the calibrated state of the monitor.

NEC NaViSet Administrator Integration
SpectraViewII integrates with the NEC NaViSet Administrator network software to provide remote network access and monitoring of display monitors. NaViSet Administrator is able to read, display and log the current calibration settings and status of displays on a corporate network.

SpectraViewII Software Requirements
Apple Mac OS X v10.6 or higher. Windows 7 and Windows 8 32-bit and 64-bit versions. Suse Enterprise Desktop 10 and higher. At least one available USB port for the color sensor.

Adaptable To Every Workspace
The Essential
With a fully-featured ergonomically designed stand, the MultiSync EA Series displays rotate, tilt, pivot to portrait and extend up to 130mm. The removable stand features an integrated cable management system with cover and also includes a locking feature for easy transport.

The Extras
The MultiSync EA Series on screen display (OSD) is fully featured and touch-enabled. There is also a dedicated button for turning the Picture in Picture mode on and off and another for switching inputs.

Picture By Picture
The Essential
Picture by Picture configurations allow multiple inputs to be shown on screen simultaneously in order to improve productivity.

The Extras
The MultiSync EA Series allows for two different inputs to be shown simultaneously, which is useful for multiple computer configurations or even replacing multiple display setups.
