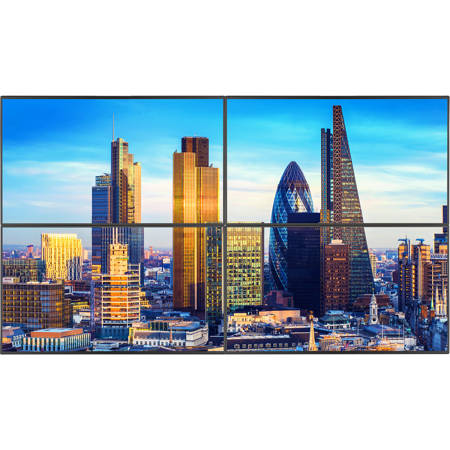

NEC MultiSync 2x2 Video Matrix Bundle with 4x EX241UN Monitor & Grommet-Mounted Desktop Stand

SKU: NCEX241VMX4G

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

NEC MultiSync 2x2 Matrix Bundle with 4x Monitor & Grommet-Mounted Stand Specifications

  • Panel Technology

    AH-IPS

  • Viewable Image Size

    47.6"

  • Aspect Ratio

    16:9

  • Native Resolution

    3840x2160 (all displays), 1920x1080 (one display)

  • Pixel Pitch

    0.2745mm

  • Pixels Per Inch

    93 at native resolutions

  • Backlight Type

    W-LED

  • Brightness (typical)

    250cd/m2

  • Contrast Ratio (typical)

    1000:1

  • Viewing Angle (typical)

    178 deg. Vert., 178 deg. Hor. (89U/89D/89L/89R) at CR>10

  • Response Time (typical)

    6ms

  • Color Gamut

    sRGB and Rec. 709 Coverage / Size: 16.7 million

  • Lookup Table

    12-bit

  • Displayable Colors

    More than 16.7 million

  • Horizontal (Analog/Digital)

    31.5 - 83.0 KHz / 31.5 - 83.0 KHz

  • Vertical

    56.0 Hz - 75.0 Hz

  • Video

    ANALOG 0.7Vp-p / 70 ohms

  • Sync

    Separate Sync: TTL Level (Positive/Negative)
    Composite Sync: TTL Level (Positive/Negative)
    Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive)

  • Input Connectors

    DisplayPort, HDMI, DVI-D, VGA

  • Output Connectors

    DisplayPort 1.2 (SST / MST)

  • Power Consumption (typical)

    On: 116W
    Power Savings Mode: 0.3W

  • VESA Hole Configuration

    100 x 100 mm

  • Additional Functions

    180 Degree Image Rotation
    ControlSync
    Customize Setting
    Integrated speakers
    3-port USB 3.0 hub
    LED backlit
    ECO Mode
    Carbon footprint meter
    Resettable cost meter
    4 side ultra-narrow bezels
    Carrying handle
    Rapid Response
    XtraView
    Hot Key
    OSD Lock Out

  • Additional Functions (Cont.)

    Cable management
    NaViSet software
    VESA mount
    HDCP
    DDC/CI
    Plug and Play (VESA DDC2B)
    VESA DPMS power management
    Uniformity correction

  • Current Rating

    0.85 - 0.45 A (with USB and Audio)

  • Power Supply

    AC 100-240 V - 50/60 Hz

  • Resolutions Supported

    720 x 400
    640 x 480 at 60 Hz to 75 Hz
    800 x 600 at 56 Hz to 75 Hz
    832 x 624 at 75 Hz
    1024 x 768 at 60 Hz to 75 Hz
    1152 x 870 at 75 Hz
    1280 x 1024 at 60 Hz to 75 Hz
    1400 x 1050 at 60 Hz to 75 Hz
    1440 x 900 at 60 Hz
    1920 x 1080 at 60 Hz

  • Practical Audio Output

    1.0 W + 1.0 W

  • Operating Temperature

    41 to 95 deg. F (5 to 35 deg. C)

  • Operating Humidity

    20-80%

  • Operating Altitude

    5000m (16404.00')

  • Storage Temperature

    14 to 140 deg. F (-10 to 60 deg. C)

  • Storage Humidity

    10-85%

  • Storage Altitude

    40000' (12192.15m)

  • RoHS

    Yes

  • Dimensions (WxHxD)

    With Stand: 43.4 x 25.4 x 5.18" (110.24 x 64.52 x 13.16cm)

About NEC MultiSync 2x2 Matrix Bundle with 4x Monitor & Grommet-Mounted Stand

A complete desktop video matrix solution in a box. The 24" NEC MultiSync EX241UN is a 4-sided ultra-narrow bezel IPS desktop monitor designed to put your image front and center. This slim, widescreen model features IPS panel technology with wide viewing angles (178deg. horizontal/vertical) and ergonomic adjustability and 0.8mm bezels around the entire display. Its settings are controlled by a 5-way control button on the back with on-screen display (OSD) indicators for easy adjustment of key settings and the included ControlSync technology allows users to control the settings for up to 25 EX241UN displays in a multi-monitor configuration.

• LED backlight technology provides for industry-leading low power consumption and less hazardous materials
• Height-adjust, pivot, tilt and swivel capabilities add flexibility and comfort to your viewing preferences
• Full connectivity, including DisplayPort, HDMI, DVI-D and VGA inputs
• 5-way control button with on screen display makes display adjustments simple
• Optional human and ambient light sensors (KT-SS1) automatically detect your work conditions to determine the proper display brightness, conserving power
• ECO Mode allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
• Dual direction pivot and the image flip feature allow users to arrange the thinnest inactive areas together for nearly seemless images
• NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
• Compatible with SpectraViewII calibration software and the SVII-EA-KIT calibration kit

Upon establishing one unit as the master, users are able to control many performance attributes of the multi-monitor setup in unison through the single monitor. Its comprehensive input panel includes HDMI, DisplayPort, DVI-D, VGA and 3-port USB 3.0 hub for connecting to the latest display sources. This bundle includes 4 MultiSync EX241UN displays, a Chief K3G220B grommet-mounted desktop stand and an ISOBAR 6 port surge suppressor.

DisplayPort
DisplayPort is designed to be the future-ready and scalable solution for high performance digital display connectivity. It enables the highest resolutions, the fastest refresh rates and deepest color depths over standard cables.

DisplayPort OUT
This monitor has a DisplayPort out connector for daisy-chain connection. Multiple monitors can be connected without complicated cable management.

HDMI
HDMI is designed to be the future-ready, scalable solution for high performance digital display connectivity. It enables the highest resolutions, the fastest refresh rates and deepest color depths over standard cables, especially for consumer audio/ video equipment.

Uniformity
This feature compensates for slight variations in the white uniformity level that may occur on the screen and improves the color and evens out the luminance uniformity of the display.

Response Improve
Improved gray to gray response.

Color Control Systems
Allow you to adjust the colors on your screen and customize the color accuracy of your monitor to a variety of standards.

sRGB Color Control
A new optimized color management standard which allows for color matching on computer displays and other peripherals. The sRGB, which is based on the calibrated color space, allows for optimal color representation and backward compatibility with other common color standards.

ErgoDesign Features
Enhanced human ergonomics to improve the working environment, protect the health of the user and save money. Examples include OSD controls for quick and easy image adjustments, tilt base for preferred angle of vision, small footprint and compliance with MPRII and TCO guidelines for lower emissions.

Plug and Play
The Microsoft solution with the Windows operating system facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance.

Intelligent Power Manager System
Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace.

Multiple Frequency Technology
Automatically adjusts monitor to the display card's scanning frequency, thus displaying the resolution required. VESA Standard Mounting Interface: Allows users to connect your MultiSync monitor to any VESA standard third party mounting arm or bracket.

Adjustable stand with pivot capability
Adds flexibility to your viewing preferences. USB hub adds excitement to your computing by connecting you to digital cameras, scanners and more.

USB Monitor Control
Allow you to adjust each item through application software by connecting an USB cable. NaViSet Software offers an expanded and intuitive graphical interface, allowing you to more easily adjust OSD display settings via mouse and keyboard.

ControlSync
Follow the steps of "DATA COPY" and copy the settings from the master monitor to the sub monitors by connecting the ControlSync cable. When the setting of the master monitor is adjusted, it is sent to the sub monitors automatically, providing easy setting controls in a multiple monitor environment.

Customize Setting
Allows to store the current settings and recover stored settings. Low Blue Light: This monitor has a blue light reducing function. This means hazardous light from the monitor is substantially reduced and it allows to free from eyestrain.

Tile Matrix, Tile Comp
Shows one image over multiple screens with accuracy while compensating for bezel width.

What's in the box:

  • NEC 4x EX241UN-H-BK Monitor
  • Chief K3G220B Grommet-Mounted Desktop Stand
  • ISOBAR 6 Surge Suppressor
  • NEC 3 Year Parts & Labor and Backlight Limited Warranty
