NEC MultiSync EX341R 34" Ultrawide Curved LED Monitor with 3-Sided Ultra-Narrow Bezel and SVA Panel

SKU: NCEX341RBK

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

NEC EX341R Specifications

  • Panel Technology

    SVA

  • Viewable Image Size

    34"

  • Aspect Ratio

    21:9

  • Native Resolution

    3440 x 1440

  • Pixel Pitch

    0.23mm

  • Pixels Per Inch

    110 at native resolutions

  • Backlight Type

    W-LED

  • Brightness (typical)

    290cd/m2

  • Contrast Ratio (typical)

    3000:1

  • Viewing Angle (typical)

    178 deg. Vert., 178 deg. Hor. (89U/89D/89L/89R) at CR>10

  • Response Time (typical)

    5ms

  • Color Gamut

    NTSC Coverage/Size: 77.50%
    sRGB Coverage/Size: 99.5%

  • Displayable Colors

    More than 16.7 million

  • Synchronization Range

    Horizontal (Analog/Digital): 31.5-95 KHz
    Vertical: 29.5 - 75 Hz

  • Speakers

    2 x 1W

  • Input Connectors

    DisplayPort 1.2, HDMI 2.0, HDMI 1.4

  • Output Connectors

    DisplayPort 1.2 (SST / MST)

  • Power Consumption (typical)

    On: 62W
    Power Savings Mode: 0.26 -> 0.29W

  • Operating Temperature

    41 to 95 deg. F (5 to 35 deg. C)

  • Operating Humidity

    20-80%

  • Operating Altitude

    16404' (5000m)

  • Storage Temperature

    14 to 140 deg. F (-10 to 60 deg. C)

  • Storage Humidity

    10-85%

  • Storage Altitude

    40,000' (12,192m)

  • Additional Functions

    Tilt, Swivel, Height-adjustable stand, ControlSync, Customize Setting, Integrated speakers, 4-port USB 3.0 hub with DisplaySync Pro, LED backlit, Auto brightness with ambient light and human sensor, ECO Mode, Carbon footprint meter, Resettable cost meter, Ultra-narrow bezel, Carrying handle, Rapid Response, Ambix, XtraView, Hot Key, Touch OSD control buttons, OSD Lock Out, Cable management

  • Additional Functions (Cont.)

    Dynamic Visual Mode (Standard, Text, Movie, Gaming, Photo, Dynamic), NaViSet software, VESA mount, HDCP, DDC/CI, Plug and Play (VESA DDC2B), VESA DPMS power management, AccuColor color control, Digital smoothing, Digital controls, ISO 9241-307 Class I, DICOM SIM for IPS models

  • VESA Hole Configuration

    100 x 100mm (3.94 x 3.94")

  • RoHS

    Yes

  • Dimensions (WxHxD)

    With stand: 31.8 x 16.5" - 21.6 x 9.1" (807.72 x 419.10mm - 548.64 x 231.14mm)
    Without stand: 31.8 x 14.3 x 4.1" (807.72 x 363.22 x 104.14mm)

  • Weight

    With stand: 23.6 lbs (10.70kg)
    Without stand: 16.8 lbs (7.62kg)

  • UPC Code

    805736063929

6 Accessories for NEC MultiSync EX341R 34" Ultrawide Curved LED Monitor with 3-Sided Ultra-Narrow Bezel and SVA Panel

  • All Accessories (6)
  • Cables & Adapters (4)
  • Cleaning Accessories (2)

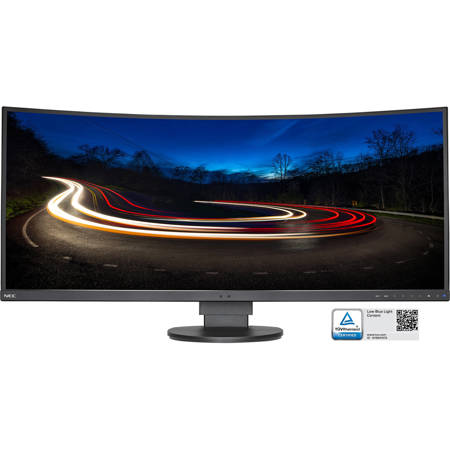

About NEC EX341R

The 34" NEC MultiSync EX341R is an 1800R curved SVA desktop monitor with 3-sided ultra-narrow bezels designed to provide a seamless, immersive workspace. This slim, ultrawide model features SVA panel technology with wide viewing angles (178deg. horizontal/vertical) ,ergonomic adjustability and 1.55mm bezels around three sides of the display. It features a touch controls for and on-screen display (OSD) indicators for easy adjustment of key settings and the included ControlSync technology allows users to control the settings for up to 25 MultiSync EA or EX Series displays in a multi-monitor configuration.

• 1800R curved SVA panel creates an immersive desktop experience
• LED backlight technology provides for industry-leading low power consumption and less hazardous materials
• Height-adjust, tilt and swivel capabilities add flexibility and comfort to your viewing preferences
• Full connectivity, including DisplayPort 1.2, HDMI 2.0 and 1.4 inputs
• Touch controls for the on screen display makes display adjustments simple
• Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness, conserving power
• ECO Mode allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
• NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
• Compatible with SpectraViewII calibration software and the SVII-EA-KIT calibration kit

Upon establishing one unit as the master, users are able to control many performance attributes of the multi-monitor setup in unison through the single monitor. Its comprehensive input panel includes HDMI 2.0, HDMI 1.4 and DisplayPort 1.2 for connecting to the latest display sources. The 4-port USB 3.0 hub also includes NEC's unique DisplaySync Pro technology, which allows two computers to be controlled with one keyboard and mouse.

Ultra Thin Design
The MultiSync EX341R features some of the industry's smallest bezels at 1.55mm on each side. In addition, the slim cabinet is only 60mm from the front of the panel to the VESA mounting plate. Front on screen display (OSD) controls have been moved to a 5-way control button on the back.

Smart Sensing Technologies
The included smart sensing technology includes ambient light and human sensors, which considerably reduce power consumption by automatically detecting your work conditions and adjusting to the proper display brightness or entering Power Saving Mode. The ambient light sensor and human sensor can reduce power by up to 87% and 95%, respectively, compared to typical energy consumption.

Comprehensive Input Panel
DisplayPort 1.2 in and out, HDMI 2.0 and 1.4 as well as a USB 3.0 hubs with DisplaySync Pro connect you to the latest peripherals and future-proofs your investment. Each EX341R features a USB 3.0 hub with two upstream connections and three downstream connections. This allows you to connect two different computers using the USB port and share a keyboard, mouse and a third device between the two computers with the push of a button.

Multiple Monitor Technologies
The ground breaking ControlSync technology allows users to control up to 25 select MultiSync EX Series units in a multi-monitor configuration. Upon establishing one unit as the master, you will be able to simultaneously control up to 26 settings of the multi-monitor setup through the master monitor. The EX341R also has a DisplayPort 1.2 input and output, allowing multiple screens to be connected through one DisplayPort input.

Curved Panel for an Immersive Workspace
The 1800R curved screen wraps around the user, providing a seamless, immersive workspace. The SVA panel provides great viewing angles so that the image looks amazing from any position.

IT-Friendly Features
Customize Setting allows both users and IT administrators to set and restore preferred settings with just one touch, contributing to a free-seating business environment. The optional NaViSet Administrator 2.0 software offers an intuitive graphical interface, allowing for easy adjustment of display settings via mouse and keyboard. NaViSet Administrator provides all the advanced control to remotely located IT professionals.

What's in the box:

  • NEC MultiSync EX341R 34 " Ultrawide Curved LED Monitor with 3-Sided Ultra-Narrow Bezel and SVA Panel
  • Power Cord
  • DisplayPort Cable
  • USB Cable
  • ControlSync Cable
  • User Manual
  • Setup Sheet
  • NEC 3 Year Limited Warranty
