Review Summary

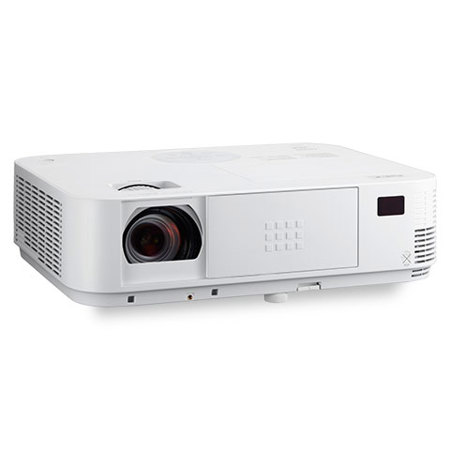

Easy to use and at the right price, M Series projectors using the latest DLP(R) technology from Texas Instruments provide all the essential features that you need to connect with your audience. The 4000-lumen, 1080p (1920 x 1080) native resolution NEC M403H is ideal for education and small-to-medium-sized business environments that need essential features, including bright images, automatic technologies and eco-friendly appeal. The M403H offers lamp life up to 8000 hours and a high contrast ratio of up to 10000:1, while Crestron Roomview aids in emergency messaging.
The versatile, color-coded connections to various sources aid in classroom and conference room use, including those in healthcare environments where its DICOM Simulation technology can be utilized. AutoSense intuitively syncs the projector with most computer signals and features one touch optimization. The environment is kept in mind with ECO Mode technology, a carbon savings meter, extended filter life and energy-saving features such as quick startup and direct power off.
Dual HDMI inputs ensure quick switching between inputs
USB Viewer allows you to present without a PC using a USB flash drive
Powerful 20W speaker provides volume needed for large rooms
ECO Mode technology helps extend lamp life and lowers power consumption with Constant Brightness which prevents the usual drop in brightness over time while maximizing lamp life.
Integrated active lens cover mutes audio and video while lowering the lamp power to 25% to conserve energy
Automatic keystone correction technology instantly projects a square image even when the projector is set up at a steep offset angle to the screen
Full 3D capability up to 1080p at 144Hz

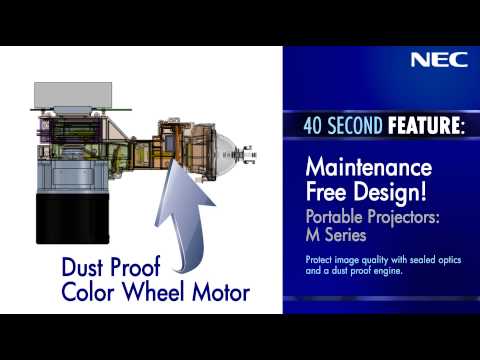

Filter free with shielded engine eliminates the hassle and time spent monitoring and/or changing filters
NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
Essential Features for Educational Facilities
Plug and Play intuitive setup and operation
Bright images easily viewed in any application
Versatile, color-coded connections to computer, video sources and external monitor
AutoSense intuitively syncs the projector with most computer signals and features one-touch image optimization
One-touch source changes and complete menu control using the intuitive projector keypad
Powerful 20-watt speaker provides volume needed for large rooms
High contrast images (10000:1) from the latest Texas Instruments DLP engine featuring BrilliantColor technology with improved color accuracy
With XGA, WXGA and 1080p native resolutions, high brightness up to 4000 lumens and patented NEC technologies, M Series projectors display impressive image quality
Designed with the Environment in Mind
Extended lamp life with ECO Mode technology increases lamp life up to 10,000 hours, while lowering power consumption
Power management enables projector to automatically turn off when an incoming signal is not detected from any of the inputs
Auto Power On via the RGB (15-pin) input connector when a signal is detected from a computer
Carbon savings meter calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy
Quick start (3 to 4 seconds) lets you begin presenting in seconds
Sleep timer can be set to automatically turn off the projector at set countdown times
Low power consumption (0.2W in stand-by mode) minimizes energy costs
Advanced Networking Capabilities
Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability)
Remote diagnostics enable the user to monitor and make adjustments to the projector remotely
PC CTL 4.0 controls the power switching input selection and other functions while managing lamp usage and a variety of other vital information over the network. Email notification and projector scheduling for better asset management is included with the software.
PC CTL 5.0 for MAC users
Control and receive important broadcast messages via Crestron Roomview
Wireless Image Utility (WIU) sends images directly from an iPad to the projector (requires wireless LAN module NP05LM1)
Simple Access Point Sending photos and documents have never been easier from a computer or iPad.
MultiPresenter enables up to 16 wireless devices to be connected to the projector simultaneously with access controlled by the moderator
20W Audio
Powerful 20-watt speaker provides volume needed for large rooms
3D Ready
When combined with active shutter glasses (NP02GL), this projector uses DLP Link technology, developed by Texas Instruments, to create 3D images.
Advanced AccuBlend
Ensures detailed images when non-native resolution sources are connected to the projector.
Auto Keystone Correction
Instantly projects a square image even when the projector is set up at a steep offset angle to the screen.
AutoSense
Intuitively syncs the projector with most computer signals and features one-touch image optimization.
Built-In Closed Captioning
Enables decoding and display of text information from a video.
Built-in Wall Color Correction
Presets provide for adaptive color tone correction to display properly on non-white surfaces.
Carbon Savings Meter
Calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy.
Crestron Roomview
Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.
DLP Technology
High contrast images (10000:1) from the latest Texas Instruments DLP engine featuring BrilliantColor technology with improved color accuracy.
Dual HDMI inputs (with HDCP)
Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers.
ECO Mode
Extends lamp life, lowers audible noise and reduces total cost of ownership.
Image Express Utility Lite with audio transfer
provides wired and wireless data transmission via peer-to-peer or over the network.
Variable Audio Out
Adjusts the volume of an external speaker system using the projector's remote control.
Virtual Remote
Used over the VGA cable to control the projector directly from a computer without the need for additional control cables.
Wired Network Connection
Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability).
Wireless LAN (Optional)
Allows you to transmit images from a PC wirelessly to the projector, eliminating the need for traditional cumbersome cables.
Direct Power Off
Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. Enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on.
