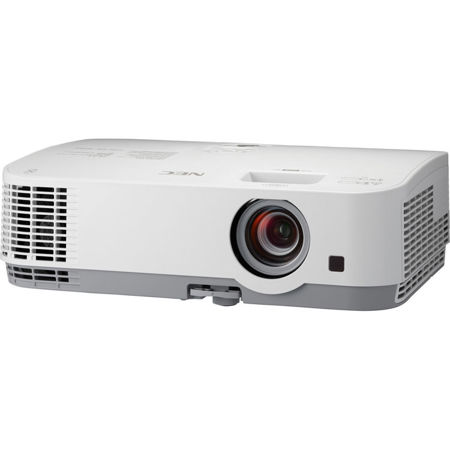

NEC NP-ME331X XGA LCD Portable Projector, 1024x768, 3300 Lumens, White

SKU: NCNPME331X

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

NEC NP-ME331X Specifications

  • Display Technology

    0.63" LCD with MLA

  • Light Output (Lumens)

    Normal: 3300
    ECO mode: Approximately 80% of normal

  • Resolution

    Native: XGA 1024 x 768
    Maximum: WUXGA 1920 x 1200

  • Contrast Ratio

    Up to 12000:1 with iris

  • Light Source (Lamp)

    ECO mode: 140W
    ECO mode off: 235W

  • Lamp Life

    Up to 4000 hours normal / 9000 hours eco

  • Screen Size (Diagonal)

    30 to 300"

  • Throw Ratio

    1.3 - 2.2:1

  • Projection Distance

    2.0 to 45.3' (0.61 to 13.81m)

  • Projector Angle

    6.5 to 6.8 deg. tele / 10.7 to 11.4 deg. wide

  • Lens

    Zoom: 1.7
    Focus: Manual
    F number, fnumber: F=1.7 to 2.1, f=17.5 to 29.0mm
    Keystone Correction: +/- 30 deg. horizontal, +/- 30 deg. vertical

  • Synchronization Range

    Horizontal (Analog): 15-100kHz
    Horizontal (Digital): 15-153kHz

    Vertical (Analog): 48-120Hz
    Vertical (Digital): 24-120Hz

  • Supported Video Standards

    NTSC, NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM

  • SD/HD Video Signal Compatibility

    Y/CB/Cr component (with optional adaptor ADP-CV1E) 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

  • PC Signal Compatibility

    VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA

  • Macintosh Compatibility

    Yes

  • Input/Output Terminals

    RGB1 (analog): VGA 15-pin D-sub
    RGB3 (digital): HDMI with HDCP
    RGB4 (digital): HDMI with HDCP
    RGB5 (digital): USB A type
    Video 1: RCA
    Audio 1: L/R RCA (shared by video sources)
    Audio 2: 1/8" stereo
    Monitor out: VGA 15-pin D-sub
    Audio out: Yes (variable)

  • Audio

    20W speaker

  • Wired LAN Port

    1x RJ45 (10 BASE-T / 100 BASE-TX)

  • External Control

    RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)

  • Sync Compatibility

    Separate Sync / Composite Sync / Sync on G

  • Power Requirements

    100-240V AC, 50/60Hz

  • Input Current

    3.4A/1.4A

  • Power Consumption

    Normal: 309W
    ECO Mode: 201W
    Standby: 1.9W
    Standby (Normal): 0.23W

  • Installation Orientation

    Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear

  • Fan Noise

    36dB normal / 29dB eco

  • Regulations

    USA: UL (UL60950-1) FCC Part15 Class B, Canada: C-UL (CSA60950-1) ICES-003 Class B, NOM

  • Operating Temperature

    41 to 104 deg. F (5 to 40 deg. C)

  • Humidity

    20-80% non-condensing

  • Storage

    -14 to 122 deg. F (-26 to 50 deg. C)

  • Additional Functions

    Keystone correction
    Wireless LAN (Optional)
    USB Viewer
    Cornerstone
    Auto power on
    ECO Mode technology
    Variable audio out
    Carbon savings meter
    Virtual Remote
    Sleep timer
    Built-in wall color correction
    Advanced AccuBlend
    AutoSense

  • Dimensions (WxDxH)

    14.5 x 11.5 x 4.3" (36.83 x 29.21 x 10.92cm)

  • Weight

    6.4 lbs (2.90kg)

  • UPC Code

    805736063868

About NEC NP-ME331X

Easy to use and at the right price, ME Series projectors using LCD technology provide all the essential features that you need to connect with your audience. The 3300-lumen, XGA (1024 x 768) native resolution NEC ME331X is ideal for education and small-to-medium-sized business environments that need essential features, including bright colorful images, automatic technologies and eco-friendly appeal. The ME331X offers lamp life up to 9,000 hours and a high contrast ratio of up to 12,000:1, while Crestron Roomview aids in emergency messaging.

• Broad 1.7x zoom range gives installers more options when choosing a mounting location
• Dual HDMI inputs ensure quick switching between inputs USB Viewer allows you to present without a PC using a USB flash drive
• Powerful 20W speaker provides volume needed for large rooms
• ECO Mode technology helps extend lamp life and lowers power consumption
• Automatic keystone correction technology instantly projects a square image even when the projector is set up at a steep offset angle to the screen
• LCD technology provides brilliant, colorful and engaging images
• Keystone, Cornerstone and Pincushion ensure the image fills the screen properly from almost any angle
• Built-in MultiPresenter functionality allows for screen sharing of up to 16 devices simultaneously via a wired or wireless connection (wireless requires NP05LM1). (Win, MAC, Android, iOS) (No Internet access or WAN required)
• NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
• DICOM Simulation enables users in medical training environments to display accurate diagnostic images
• Advanced AccuBlend ensures detailed images when non-native resolution sources are connected to the projector
• Built-in closed captioning enables decoding and display of text information from a video
• USB Viewer for sharing of content without the need to connect a PC
• USB (Type B) Input is a direct connection to PC

The versatile, color-coded connections to various sources aid in classroom and conference room use, including those in healthcare environments where its DICOM Simulation technology can be utilized. Keystone, Cornerstone and Pincushion ensure the image fills the screen properly from almost any angle. The environment is kept in mind with ECO Mode technology, a carbon savings meter, extended filter life and energy-saving features such as quick startup and direct power off. Built-in MultiPresenter functionality allows for screen sharing of up to 16 devices simultaneously via a wired or wireless connection (wireless requires NP05LM1). (Win, MAC, Android, iOS) (No Internet access or WAN required).

High Performance Portable Projector
Easy to use and at the right price, ME Series projectors provide all the essential features that you need for brilliant display in classrooms and meeting rooms while providing low cost of ownership with minimal maintenance.

Essential Features for Educational Facilities
• Powerful 20-watt speaker provides volume needed for large rooms
• Plug and Play intuitive setup and operation
• Variable audio control of external speakers using the projectors remote control
• Versatile, color-coded connections with Dual HDMI inputs, video sources and external monitor
• Automatic vertical keystone correction technology instantly projects a square image even when the projector is set up at a steep offset angle to the screen
• AutoSense intuitively syncs the projector with most computer signals and features one-touch image optimization
• One-touch source changes and complete menu control using the intuitive projector keypad
• With XGA and WXGA native resolutions, high brightness up to 4000 lumens and patented NEC technologies, ME Series projectors display impressive image quality
• Wall Color Correction for vivid images even without a screen

Designed with the Environment in Mind
• Extended lamp life with ECO Mode technology increases lamp life up to 9,000 hours, while lowering power consumption
• Power management enables projector to automatically turn off when an incoming signal is not detected from any of the inputs
• Auto Power On via the RGB (15-pin) input connector when a signal is detected from a computer
• Carbon savings meter calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy
• Quick start (3 to 4 seconds) lets you begin presenting in seconds
• Sleep timer can be set to automatically turn off the projector at set countdown times
• Low power consumption (0.23W in stand-by mode) minimizes energy costs

Advanced Functions

MultiPresenter
MultiPresenter is application software that lets you display your device's screen (PC, tablet, smart phone, etc.) on the receiver projectors via wired or wireless LAN. MultiPresenter is free and available on Windows, Mac, iOS and Android. MultiPresenter can send images from your various devices, which enables you to display real-time images with the internal camera or web pages on the smart devices in combination with a file sharing application.

Desktop Version (Win/Mac)
Computer audio and video data (audio can be transmitted only when using Windows) can be transmitted via a wireless or wired LAN.

• Easy Connection: Input a 4-digit number (PIN code) for a network connection via wireless LAN
• Multiple devices (maximum of 16 screens) can display at the same time and simultaneously display onto multiple receiving projector
• Projector control

Mobile Version (Android/iOS)
You can transmit files, photos, camera images, files of web pages and other information stored on Android or iOS devices via a wireless LAN.

• Easy Connection: Input a 4-digit number (PIN code) for a network connection via wireless LAN
• Multiple devices (maximum of 16 screens) can display at the same time and simultaneously display onto multiple receiving projectors
• Projector control

Advanced Networking Capabilities
• Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability)
• Control and receive important broadcast messages via Crestron Roomview
• MultiPresenter enables up to 16 wireless devices to be connected to the projector simultaneously with access controlled by the moderator
• Remote diagnostics enable the user to monitor and make adjustments to the projector remotely
• Simple Access Point Sending photos and documents have never been easier from a computer or iPad

Cornerstone
Enhanced keystone correction allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.

Keystone
Horizontal and vertical adjustments to square images to the screen when tilting the projector.

Pincushion
Removes the barreling effect at the edge of the image produced by the screen..

Technologies

20W Audio
Powerful 20-watt speaker provides volume needed for large rooms.

Advanced AccuBlend
Ensures detailed images when non-native resolution sources are connected to the projector.

Auto Power On
Powers on the projector as soon as it is plugged into a power outlet.

AutoSense
Intuitively syncs the projector with most computer signals and features one-touch image optimization.

Built-in Wall Color Correction
Presets provide for adaptive color tone correction to display properly on non-white surfaces.

Carbon Savings Meter
Calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy.

Cornerstone Correction
Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.

Crestron Roomview
Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.

Direct Power Off
Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. Enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on.

Dual Computer Inputs
Ensures quick switching between presentations.

Dual HDMI inputs (with HDCP)
Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers.

ECO Mode
Extends lamp life, lowers audible noise and reduces total cost of ownership.

Quick Startup and Quick Power-Off
Allows users to begin presenting within 3 to 4 seconds and allows immediate power off with no cooling required after shutdown to ensure efficient energy usage.

Variable Audio Out
Adjusts the volume of an external speaker system using the projector's remote control.

Virtual Remote
Used over the VGA cable to control the projector directly from a computer without the need for additional control cables.

Wireless LAN (Optional)
Allows you to transmit images from a PC wirelessly to the

What's in the box:

  • NEC NP-ME331X XGA LCD Portable Projector
  • Remote Control
  • 2x AA Batteries
  • Power Cord
  • RGB Signal Cable
  • Strap
  • User Manual
  • Quick Start Guide
  • CD-ROM
  • NEC 3 Year Parts and Labor Limited Warranty with InstaCare Next Business Day Exchange Upon Registration on Projector
  • NEC 1 Year or 1000 Hours (Whichever Comes First) Limited Warranty on Lamp
