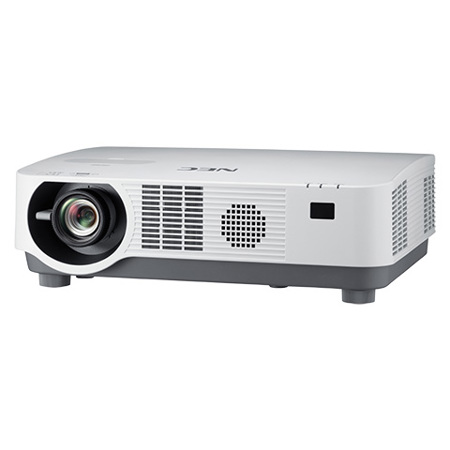

NEC P Series P502HL-2 Full HD Professional Installation Laser DLP Projector, 1920x1080, 5000 Lumens

SKU: NCNPP502HL2

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2018-04-09T08:53:03

Rated 5 out of 5

Great projector

As a professional integrator I use NEC projectors in 98% of my designs/ installations (sometimes a black case is required - NEC doesn't have this). I can't remember the last time I had a bad unit out of the box, and some of these installed units are now approaching 10-years-old, never needing more than an occasional lamp replacement to keep them going.

DAVID T.

NEC P502HL-2 Specifications

  • Display Technology

    0.65" DMD

  • Light Output

    5000 lumens normal / Eco = variable

  • Native Resolution

    1080p 1920 x 1080

  • Maximum Resolution

    WUXGA 1920 x 1200

  • Contrast Ratio

    Up to 15000:1 with auto iris

  • Lamp Type

    Laser/Phosphor

  • Lamp Life

    Up to 20000 hours

  • Diagonal Screen Size

    30 - 300" (76.20 - 762.00cm)

  • Throw Ratio

    1.24 - 2.1

  • Projection Distance

    2.6 - 47.6' (0.79 - 14.51m)

  • Projector Angle

    13.2 to 13.5 deg. tele / 21.9 to 22.9 deg. wide

  • Lens: Zoom

    Manual

  • Lens: Zoom Ratio

    1.7:1

  • Lens: Focus

    Manual

  • Lens: F-number, f-number

    F= 2.0, f= 18.2 to 31.1mm

  • Lens: Shift

    Manual +0.59 vertical, +/-28 horizontal

  • Keystone Correction

    +/- 25 deg. horizontal, +/- 30 deg. vertical

  • Scan Rate: Horizontal

    15 - 100 kHz

  • Scan Rate: Vertical

    50 - 120 Hz

  • Supported Video Standards

    NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM

  • SD/HD Video Signal Compatibility

    1080p, 1080i, 720p, 576p, 576i, 480p, 480i

  • PC Signal Compatibility

    VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA

  • Macintosh Compatibility

    Yes

  • Input/Output Terminals: RGB1 (analog)

    15 pin, Component video using ADP-CV1E adapter

  • Input/Output Terminals: RGB2 (digital)

    HDMI w/HDCP

  • Input/Output Terminals: RGB3 (digital)

    HDMI w/HDCP

  • Input/Output Terminals: RGB4 (digital)

    HDBaseT

  • Input/Output Terminals: Video

    RCA

  • Input/Output Terminals: Audio 1

    L/R RCA (shared by video sources)

  • Input/Output Terminals: Audio 2

    1/8" stereo

  • Input/Output Terminals: Audio Out

    Mini stereo (Variable audio out)

  • Input/Output Terminals: Monitor Out

    15Pin D-sub

  • 3D Sync Line

    3Pin D

  • Audio

    20W mono

  • External Control

    RS-232, IR, HDBaseT, DDC/CI, USB

  • Sync Compatibility

    Separate Sync / Composite Sync / Sync on G

  • Power Requirements

    100 - 240V AC, 50/60Hz

  • Input Current

    5.7A - 2.3A

  • Power Consumption

    464W / 362W / 2.1W / 0.5W (ECO off/ECO Mode/Standby/Standby-Power Saving)

  • Installation Orientation

    Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear

  • Fan Noise

    39 dB normal / 33 dB eco

  • Regulations

    USA: UL(UL60950-1, Laser + Lamp (IEC60825-1 Ed.3 + IEC62471-1/-5), FCC Part15 Class B

  • Operating Temperature

    41 to 104 deg. F (5 to 40 deg. C)

  • Humidity

    20-80% non-condensing

  • Storage

    -14 to 122 deg. F (-26 to 50 deg. C)

  • Additional Functions

    Manual keystone correction
    Wireless LAN
    USB Viewer
    Auto power on
    ECO Mode technology
    Closed captioning
    Variable audio out
    Carbon savings meter
    Virtual Remote
    Sleep timer
    Built-in wall color correction
    Advanced AccuBlend
    AutoSense

  • Dimensions (WxDxH)

    18.5 x 14.4 x 5.4" (46.99 x 36.58 x 13.72cm)

  • Weight

    19.4 lbs (8.80kg)

  • UPC Code

    805736064766

About NEC P502HL-2

FEATURED REVIEWS

Great projector

By DAVID T.

As a professional integrator I use NEC projectors in 98% of my designs/ installations (sometimes a black case is required - NEC doesn't have this). I can't remember the last time I had a bad unit out of the box, and some of these installed units are now approaching 10-years-old, never needing more than an occasional lamp replacement to keep them going.

The NEC P502HL-2 is the smallest footprint 5000 lumen installation projector with a laser/phosphor light source that makes it ideal for higher education classrooms, corporate boardrooms and government training rooms. With more consistent brightness, improved color fidelity and tilt-free or portrait modes these projectors will deliver in new verticals such as retail, simulation and theme park installations. Furthermore, the laser module delivers 20,000 hours of virtually maintenance-free operations, reducing your total cost of ownership! Join NEC on a journey through the state of technology in education and hear from real schools about their technology issues and solutions.

• High-brightness, lower power consumption enhance always-on capabilities of laser projection
• Ideal for new applications such as digital signage
• Lamp-less operation reduces TCO
• Eco-friendly features, minimal maintenance and cost savings mean these projectors are still great for demanding integration applications such as higher education and corporate
• Built-in HDBaseT enables simplified installations with a single cable for video, audio and control signals: LAN connection for control and asset management over the network. Dual HDMI inputs (with HDCP) ensures quick switching between presentations
• 15,000:1 Contrast Ratio creating extremely detailed images
• Powerful 20W speakers provide volume needed for large rooms
• Horizontal & Vertical lens shift enables flexible projector placement
• MultiPresenter for audio and video transmission from up to 16 sources simultaneously to the projector over the network
• NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
• Industry leading 5 year standard warranty on parts and labor! This includes the first year of InstaCare FREE!

Laser Light Module
• 20,000-plus hours of virtually maintenance-free operation
• High-brightness, lower power consumption enhances applications such as retail, digital signage and theme parks
• Ability to control brightness creating a stable image over longer time periods

Integrated and Powerful
• Project uncompressed FHD video with integrated HDBaseT
• High performance video processing/scaling creates life-like images
• Integrated software applications such as Crestron Roomview, AMX Beacon and PJ Link allow for complete interactivity and control

Flexible
• Tilt-free installation capabilities make these projector ideal for almost any install environment, including portrait orientation
• Lens shift capabilities make alignment easy: P502WL-2 (+59 vertical, +/- 28% horizontal), P502HL-2 (+62 vertical, +/- 25% horizontal)

Built-In HDBaseT Support
Simplify your installations with HDBaseT. Optimized for video applications and supporting uncompressed full HD digital video, audio, ethernet, power and various control signals. With only a single cable (up to 100m) to run, infrastructure and labor costs are reduced, installations are significantly easier and there is no cable clutter to manage. With uncompressed HD video support, images have never been more stunning. What's more, control signals are contained in the same cable

MultiPresenter
MultiPresenter is application software that lets you display your device's screen (PC, tablet, smart phone, etc.) on the receiver projectors via wired or wireless LAN. MultiPresenter is free and available on Windows, Mac, iOS and Android. MultiPresenter can send images from your various devices, which enables you to display real-time images with the internal camera or web pages on the smart devices in combination with a file sharing application.

Desktop Version (Win/Mac)
Computer audio and video data (audio can be transmitted only when using Windows) can be transmitted via a wireless or wired LAN.

• Easy Connection: Input a 4-digit number (PIN code) for a network connection via wireless LAN
• Multiple devices (maximum of 16 screens) can display at the same time and simultaneously display onto multiple receiving projectors
• Projector control

Mobile Version (Android/iOS)
You can transmit files, photos, camera images, files of web pages and other information stored on Android or iOS devices via a wireless LAN.

• Easy Connection: Input a 4-digit number (PIN code) for a network connection via wireless LAN
• Multiple devices (maximum of 16 screens) can display at the same time and simultaneously display onto multiple receiving projectors
• Projector control

Advanced Networking Capabilities
• Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability)
• Control and receive important broadcast messages via Crestron Roomview
• MultiPresenter enables up to 16 wireless devices to be connected to the projector simultaneously with access controlled by the moderator.
• Remote diagnostics enable the user to monitor and make adjustments to the projector remotely
• Simple Access Point Sending photos and documents have never been easier from a computer or iPad.

Advanced Software

Full HD 3D video (144Hz)
When combined with active shutter glasses and 3D emitter, the P Series Projectors create 3D images from a computer or Blu-ray player. The projectors utilize the 3D sync line output to connect to the 3D emitter. Optional 3D glasses and emitters by XPAND are available from NEC (X105-RF-X2 / AD025-RF-X1)

Tilt-free
The projector can be rotated freely (360deg.) to orient the image depending on the installation requirements

Portrait mode
Allows the projector to be rotated (and screen if necessary) to a vertical alignment so that portrait content can be viewed without black bars on the side when landscape mode is used.

Unique Functions
• Advanced AccuBlend ensures detailed images when nonnative resolution sources are connected to the projector
• AutoSense automatically syncs with any computer signal and features one-touch image optimization
• 64-step image magnification with location control Discreet source keys for source selection
• Remote diagnostics enable the user to monitor and make adjustments to the projector remotely
• Built-in HTTP page for control and monitoring over a LAN network. Email notification of error messages or lamp end-of-life can be sent to remote locations
• Manual keystone correction
• Wireless LAN
• USB Viewer
• Auto power on
• ECO Mode technology
• Closed captioning
• Variable audio out
• Carbon savings meter
• Virtual Remote
• Sleep timer
• Built-in wall color correction
• Advanced AccuBlend
• AutoSense

What's in the box:

  • NEC P Series P502HL-2 Full HD Professional Installation Laser DLP Projector
  • Remote Control
  • Batteries
  • Power Cord
  • RGB Signal Cable
  • User Manual
  • Quick Start Guide
  • Security Stricker
  • NEC 5 Year or 20000 Hour Parts & Labor Warranty (Whichever Comes First)
