0.64" LCD
5500 normal
Native: WXGA 1280 x 800
Maximum: Up to WUXGA (1920 x 1200) with Advanced AccuBlend
20000:1 with auto iris
330W AC
Up to 4000 hours normal / 8000 hours ECO
30 to 300"
1.2 - 2.1:1
2.6 to 44.3' (0.79 to 13.50m)
0 to 9.7 deg. tele / 0 to 16.1 deg. wide
Zoom: 1 to 1.7x
Focus: Manual
F number, fnumber F=1.7 to 2.2, f=17.4 to 29.0mm
Shift Manual: 0-55% vertical, +/-15% horizontal
Keystone Correction: Manual +/- 20 deg. horizontal, +/- 30 deg. vertical
Horizontal (Analog/Digital): 15-100kHz (RGB: 24kHz or over)
Vertical (Analog/Digital): 50-120Hz
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Yes
RGB1 (analog): VGA 15-pin D-sub
RGB2 (digital): HDMI with HDCP
RGB3 (digital): HDMI with HDCP
RGB4 (digital): HDBaseT
Video 1: RCA
Audio 1: RCA
Audio 2: Mini stereo
Monitor out: VGA 15-pin D-sub
Audio out: 1/8" stereo (Variable audio out)
RJ45 (10 BASE-T / 100 BASE-TX)
20W speaker
RS-232, IR, DDC/CI, USB, LAN
Separate Sync / Composite Sync / Sync on G
RJ-45 Monitoring
100-240VAC, 50/60Hz
5.0-1.9A
Normal: 448W
ECO Mode: 280W
Standby: 2.0W
Standby Power Saving: 0.16W
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
37dB normal / 34dB ECO
USA UL 60950-1 / FCC Part15 Class B, Canada CSA 60950-1 / ICES-003 Class B, NOM
41 to 104 deg. F (5 to 40 deg. C)
20-80% non-condensing
-14 to 122 deg. F (-26 to 50 deg. C)
Manual keystone correction
Wireless LAN
USB Viewer
Auto power on
ECO Mode technology
Closed captioning
Variable audio out
Carbon savings meter
Virtual Remote
Sleep timer
Built-in wall color correction
Advanced AccuBlend
AutoSense
16.5 x 13.0 x 5.6" (41.91 x 33.02 x 14.22cm)
10.6 lbs (4.81kg)
805736066234

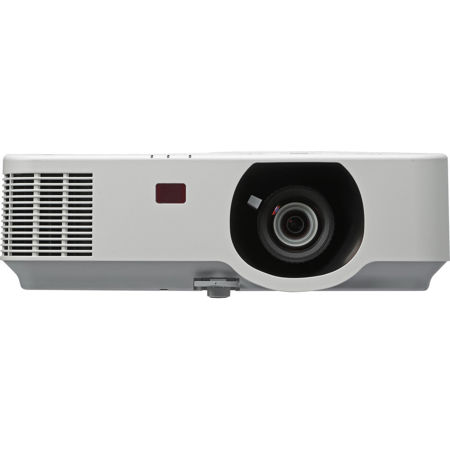

The P Series is ideal for higher education classrooms, corporate boardrooms and rental where bright, sharp images are required. The NEC P554W includes advanced installation features such as horizontal & vertical lens shift and HDBaseT connectivity that provide greater installation flexibility. Adding horizontal & vertical keystone correction along with cornerstone and pincushion adjustment ensures the image will be square on the screen even if installation challenges exist. The long life lamp reduces maintenance and lowers total cost of ownership.
Horizontal & Vertical lens shift enables flexible projector placement
Powerful 20W speakers provide volume needed for large rooms
Built-in HDBaseT enables simplified installations with a single cable for video and audio over long distances
Dual HDMI inputs (with HDCP) ensures quick switching between presentations
LAN connection for control and asset management over the network
Optional wireless display with MultiPresenter Stick
Variable audio-out allows the remote control to adjust speaker volume
20,000:1 Contrast Ratio creating extremely detailed images
8000-hour lamp (eco) drastically reduces maintenance, thereby decreasing the total cost of ownership
Eco-friendly features, minimal maintenance and cost savings mean these projectors are still great for challenging installation applications in higher education and corporate
NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
Advanced AccuBlend ensures detailed images when nonnative resolution sources are connected to the projector
AutoSense automatically syncs with any computer signal and features one-touch image optimization
64-step image magnification with location control
Discreet source keys for source selection
Remote diagnostics enable the user to monitor and make adjustments to the projector remotely
Built-in HTTP page for control and monitoring over a LAN network. Email notification of error messages or lamp end-of-life can be sent to remote locations
Integrated and Powerful
Project uncompressed FHD video with integrated HDBaseT
High performance video processing/scaling creates life-like images
Integrated software applications such as Crestron Roomview, AMX Beacon and PJ Link allow for complete interactivity and control
Flexible
Horizontal & vertical keystone adjustment along with cornerstone and pincushion provides the ability to square the image to the screen
Lens shift capabilities make alignment easy: (0-55% vertical / +/-15% horizontal)
Built-In HDBaseT Support
Simplify your installations with HDBaseT. Optimized for video applications and supporting uncompressed full HD digital video and audio. With only a single cable (up to 100m) to run, infrastructure and labor costs are reduced, installations are significantly easier and there is no cable clutter to manage. With uncompressed HD video support, images have never been more stunning.
MultiPresenter
Utilization of the optional MultiPresenter Stick provides those looking for a network connection easy connection with up to 12 devices at once. (Win, MAC, Android, iOS) Screen mirroring for Android and Win. Simple annotation software.
Lens Shift
Lens shift provides greater flexibility when determining install location.
Digital inputs
Among the P Series' wide selection of inputs are HDBaseT and 2 HDMI with HDCP for connecting to high-definition sources such as Blu-ray players, cable boxes, satellite receivers and personal computers.
Variable audio-out
This input enables the remote control to be used to adjust volume of self powered external speakers that are connected to the projector. In stand-by mode, the audio-out stays active, allowing the last input used to pass to the self powered external speakers.
Top cover lamp change
This feature provides for easy lamp changes without removal of the projector from the mount.
Wall color correction presets
These provide for adaptive color tone correction to display properly on non-white surfaces.
Input panel cover
This optional accessory creates a clean look for your installation, while hiding signal cables and the power cord.
Cornerstone
Enhanced keystone correction allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
Keystone
Horizontal and vertical adjustments to square images to the screen when tilting the projector.
Pincushion
Removes the barreling effect at the edge of the image produced by the screen.
Technologies
20W Audio
Powerful 20-watt speaker provides volume needed for large rooms.
Advanced AccuBlend
Ensures detailed images when non-native resolution sources are connected to the projector.
Auto Power On
Powers on the projector as soon as it is plugged into a power outlet.
AutoSense
Intuitively syncs the projector with most computer signals and features one-touch image optimization.
Built-in Wall Color Correction
Presets provide for adaptive color tone correction to display properly on non-white surfaces.
Carbon Savings Meter
Calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy.
Cornerstone Correction
Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
Crestron Roomview
Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.
Direct Power Off
Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. Enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on.
Dual Computer Inputs
Ensures quick switching between presentations.
Dual HDMI inputs (with HDCP)
Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers.
ECO Mode
Extends lamp life, lowers audible noise and reduces total cost of ownership.
Quick Startup and Quick Power-Off
Allows users to begin presenting within 3 to 4 seconds and allows immediate power off with no cooling required after shutdown to ensure efficient energy usage.
Variable Audio Out
Adjusts the volume of an external speaker system using the projector's remote control.
Virtual Remote
Used over the VGA cable to control the projector directly from a computer without the need for additional control cables.
Wireless LAN (Optional)
Allows you to transmit images from a PC wirelessly to the projector, eliminating the need for traditional cumbersome cables.
