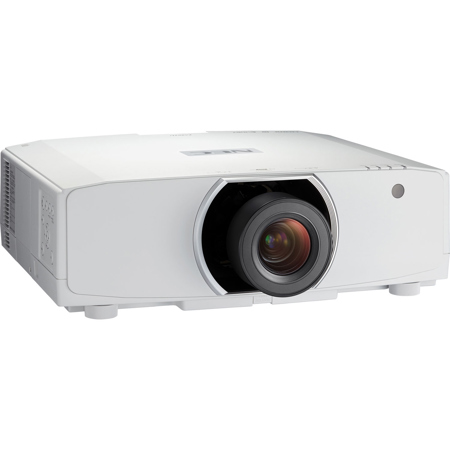

NEC NP-PA653U-41ZL Projector and Lens Bundle, 6500 Lumen

SKU: NCNPPA653UB MFR: NP-PA653U-41ZL
Earn VIP Reward Points

Key Features

  • Experience stunning visuals with 6500-lumen brightness, perfect for large venues.
  • Enjoy crystal-clear images with WUXGA resolution, ideal for detailed presentations.
  • This professional projector includes a zoom lens for flexible installation options.
  • Benefit from a long lamp life, reducing maintenance and ensuring lasting performance.
  • Extensive connectivity options, including HDMI and HDBaseT, simplify setup.
  • Manual keystone correction ensures a perfectly aligned image in any environment.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

NEC NP-PA653U + NP41ZL Specifications

Display

Display

Jump to...
  • Native Resolution

    WUXGA 1920x1200

  • Contrast Ratio (typical)

    8000:1 with auto iris

  • Maximum Resolution

    4K 4096 x 2160

Synchronization Range

Jump to...
  • Synchronization Range

    Horizontal (Analog/Digital): Analog: 15-100kHz, Digital: 15-153kHz
    Vertical: Analog: 48-120Hz, Digital: 24-120Hz

Signal Compatibility/Connectivity

Jump to...
  • Supported Video Standards

    NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM

  • PC Signal Compatibility

    VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, WQXGA

  • Sync Compatibility

    Separate Sync / Composite Sync / Sync on G

  • SD/HD Video Signal Compatibility

    480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K

  • Macintosh Signal Compatibility

    Yes

  • External Control

    RS-232, IR, HDBaseT, DDC/CI, USB

  • Input Terminals

    RGB1 (analog): VGA 15-pin D-sub
    RGB2 (digital): HDMI with HDCP (V2.2)
    RGB3 (digital): HDMI with HDCP (V2.2)
    RGB4 (digital): DisplayPort with HDCP (V1.4)
    RGB5 (digital): HDBaseT with HDCP (V2.2)
    Audio 1: Stereo Mini Jack

  • Output Terminals

    Audioout: Stereo Mini Jack
    Monitor Out: HDBaseT

Power Consumption (typical)

Jump to...
  • Power Consumption (typical)

    On 506W / 390W / 0.7W / 0.3W
    Input Current: 5.6-2.7A
    Power Requirements: 100-240V AC, 50/60 Hz

Environmental

Jump to...
  • Temperature

    Operating: 5 to 40 deg. C (41 to 104 deg. F)
    Storage: -10 to 50 deg. C (14 to 122 deg. F)

Additional Functions

Jump to...
  • Additional Functions

    4K Ready
    Powered Lenses
    Manual Keystone Correction
    3D Stereo
    Geometric Correction
    10,000 hour Filter Life
    Quick power on
    ECO Mode Technology
    DiCom Simulation
    Edge Blending
    Stacking
    Virtual Remote
    DisplayNote
    NaViSet Administrator 2
    Quick power-off
    Picture-in-Picture
    Advanced AccuBlend
    AutoSense

Optical

Jump to...
  • Display Technology

    0.76" LCD with MLA

  • Lamp Type

    370W AC

  • Screen Size (diagonal)

    40 to 500" / 1.02 to 12.7m

  • Projector Angle

    10.3 to 10.8deg. tele / 13.7 to 14.5deg. wide

  • Light Output(Lumens)

    6500 normal

  • Lamp Life (up to)

    4000 hours normal / 5000 hours eco

  • Projection Distance

    2.5 to 68.5' (0.74 to 20.9m)

  • Lens

    Zoom: Variable
    Focus: Power
    F number, fnumber: Variable

  • Keystone Correction

    +/- 40deg. horizontal, +/- 30deg. vertical

Mechanical

Jump to...
  • Installation Orientation

    Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear

  • Regulations

    USA UL60950-1: 2nd edition, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.60950-1-07,2nd Edition,2014, ICES-003 Issue6(ANSI C63.4:2014)

  • Fan Noise

    39 dB normal / 33 dB eco

General

Jump to...
  • Dimensions (WxHxD)

    19.8 x 16.2 x 6.6" (50.29 x 41.15 x 16.76cm)

  • Weight

    22.5 lbs (10.21kg)

  • UPC Code

    805736064056

1 Accessories for NEC NP-PA653U-41ZL Projector and Lens Bundle, 6500 Lumen

  • All Accessories (1)
  • Stands (1)

About NEC NP-PA653U + NP41ZL

Experience the power and versatility of NEC's PA653U, a 6500-lumen widescreen advanced professional installation projector, designed to meet the demands of higher education and corporate environments. This projector and lens bundle is equipped with a plethora of digital inputs, enabling seamless connection to any computer or high-definition device.

The PA653U stands out with its design and installation flexibility, offering a comprehensive range of optional powered lenses. These lenses provide lens shift, focus, and zoom capabilities, enhancing the user experience. Moreover, the projector supports tilt-free and portrait installation, along with built-in edge blending and stacking features, making it a versatile choice for various settings.

One of the key features of the PA653U is the HDBaseT input and separate HDBaseT loop out. These provide single connections for uncompressed full HD digital video, audio, Ethernet power, and various control signals, simplifying the setup process.

The projector also offers basic control of competitors' products, reducing the need for reprogramming of a control system. The TileMatrix feature enables 4Kx2K resolution utilizing four projectors via HDBaseT Loop Out, providing stunning visuals for presentations or video content.

For those seeking a network connection, the optional MultiPresenter Stick offers easy connectivity with up to 12 devices simultaneously, including Windows, MAC, Android, and iOS systems. Screen mirroring for Android and Windows devices is also supported, along with simple annotation software for interactive presentations.

The PA653U projector boasts high-performance video processing and scaling capabilities, creating life-like images that captivate audiences. Integrated software applications such as DisplayNote®, Crestron Roomview, AMX Beacon, Extron XTP, and PJ link allow for complete interactivity and control.

With a 6500-lumen brightness, this projector enhances images for most applications, ensuring clear and vibrant visuals. The 4K Ready feature allows for the display of stunning 4K 60P content using NEC's proprietary high-performance video processing/scaling chip, without the loss of critical details. HDR10 and BT.2020 signals from "Ultra HD Blu-ray" and "4K TV broadcasting" are supported on all digital inputs, making the PA653U a comprehensive solution for high-quality projection needs.

NEC NP-PA653U + NP41ZL Features

  • High-performance 6500-lumen widescreen projector designed for professional installations
  • Versatile digital inputs for seamless connection to any computer or high-definition device
  • Optional powered lenses with shift, focus, and zoom capabilities for enhanced user experience
  • Integrated HDBaseT input and loop out for uncompressed full HD digital video, audio, Ethernet power, and control signals
  • Features TileMatrix for 4Kx2K resolution utilizing four projectors via HDBaseT Loop Out
  • 4K Ready with support for HDR10 and BT.2020 signals from "Ultra HD Blu-ray" and "4K TV broadcasting" on all digital inputs

Key Features

  • Experience stunning visuals with 6500-lumen brightness, perfect for large venues.
  • Enjoy crystal-clear images with WUXGA resolution, ideal for detailed presentations.
  • This professional projector includes a zoom lens for flexible installation options.
  • Benefit from a long lamp life, reducing maintenance and ensuring lasting performance.
  • Extensive connectivity options, including HDMI and HDBaseT, simplify setup.
  • Manual keystone correction ensures a perfectly aligned image in any environment.

What's in the box:

  • NEC PA Series NP-PA653U 6500-Lumen WUXGA LCD Professional Installation Projector (No Lens)
  • Remote Control with Battery
  • Power Cord
  • NP41ZL 1.30-3.08 Zoom Lens for NEC PA Series Projectors
  • NEC 3 Year Parts and Labor Limited Warranty on Projector and Lens (1 Year or 500 Hour on Lamp)
