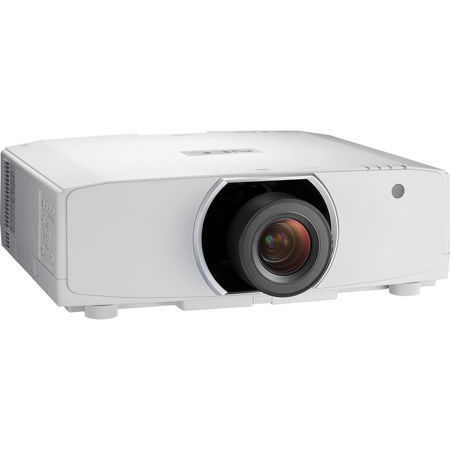

NEC PA Series PA803U WUXGA LCD Professional Installation Projector without Lens, 1920x1200, 8000 Lumens

SKU: NCNPPA803U MFR: NP-PA803U
$6,199.00
Earn VIP Reward Points

Key Features

  • Experience stunning visuals with 8000 Lumens, perfect for large venues needing brightness.
  • Enjoy detailed images with WUXGA resolution (1920x1200), ideal for professional presentations.
  • This LCD projector offers versatile connectivity options, including HDMI and HDBaseT inputs.
  • Achieve optimal image alignment with powered lens shift and keystone correction features.
  • Benefit from a long lamp life of up to 20000 hours, reducing maintenance and costs.
  • Create seamless large-scale displays with edge blending and stacking capabilities.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

NEC PA803U Specifications

  • Display Technology

    0.76" LCD with MLA

  • Light Output

    8000 Lumens (normal)

  • Native Resolution

    WUXGA 1920 x 1200

  • Maximum Resolution

    4K 4096 x 2160

  • Contrast Ratio

    Up to 2,500,000:1 with light adjust

  • Lamp Type

    Up to 20000 hours

  • Lamp Life

    50 to 500" (1.27 to 12.7m), NP40ZL, NP41ZL, NP43ZL (diagonal)

  • Screen Size

    Variable

  • Projection Distance

    2.5 to 68.5' (0.74 to 20.9m)

  • Projector Angle

    Tele: 10.3 to 10.8 deg.
    Wide: 13.7 to 14.5 deg.

  • Lens: Zoom

    Powered

  • Lens: Focus

    Power

  • Lens: F number

    Variable

  • Lens: Shift

    Mechanical -0.1 to +0.5 vertical, +/-0.3 horizontal

  • Keystone Correction

    +/- 40 deg. horizontal, +/- 40 deg. vertical

  • Synchronization Range

    Horizontal:
    Analog: 15-100kHz, Digital: 15-153kHz

    Vertical:
    Analog: 48-120Hz, Digital: 24-120Hz

  • Supported Video Standards

    NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM

  • SD/HD Video Signal Compatibility

    480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K

  • PC Signal Compatibility

    VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, WQXGA

  • Macintosh Compatibility

    Yes

  • Input/Output Terminals

    RGB1(analog): VGA 15-pin D-sub
    RGB2(digital): HDMI (V2.0) with HDCP (V1.4/2.2)
    RGB3(digital): HDMI (V2.0) with HDCP (V1.4/2.2)
    RGB4(digital): DisplayPort with HDCP (V1.4)
    RGB5(digital): HDBaseT with HDCP (V1.4/2.2)
    Audio 1: Stereo Mini Jack
    Monitor out: HDBaseT with HDCP (V1.4/2.2)
    Audio out: Stereo Mini Jack

  • External Control

    RS-232, IR, DDC/CI, USB

  • Sync Compatibility

    Separate Sync / Composite Sync / Sync on G

  • Power Requirements

    100-240V AC, 50/60 Hz

  • Input Current

    11.8- 5.2A

  • Power Consumption

    Normal: 798W
    ECO Mode: 470W
    Standby: 0.64W
    Standby Power Saving: 0.11W

  • Optional Lenses

    NP40ZL, NP41ZL, NP43ZL

  • Installation Orientation

    Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear

  • Fan Noise

    Normal: 39dB
    Eco: 33dB

  • Regulations

    USA UL60950-1: 2nd edition, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.60950-1-07,2nd Edition,2014, ICES-003 Issue6(ANSI C63.4:2014)

  • Additional Functions

    4K Ready
    Powered Lenses
    Manual Keystone Correction
    3D Stereo
    Geometric Correction
    Quick power on
    ECO Mode Technology
    DiCom Simulation
    Edge Blending
    Stacking
    Virtual Remote
    DisplayNote
    NaViSet Administrator 2
    Quick power-off
    Picture-in-Picture
    Advanced AccuBlend
    AutoSense

  • Operating Temperature

    41 to 104 deg. F (5 to 40 deg. C)

  • Storage

    -14 to 122 deg. F (-26 to 50 deg. C)

  • Humidity

    20-80% non-condensing

  • Dimensions (WxDxH)

    580 x 494 x 208mm (22.83 x 19.45 x 8.19")

  • Weight

    40.1 lbs (18.19kg)

  • UPC Code

    805736066111

1 Accessories for NEC PA Series PA803U WUXGA LCD Professional Installation Projector without Lens, 1920x1200, 8000 Lumens

  • All Accessories (1)
  • Stands (1)

About NEC PA803U

Why settle for less when you can experience the best with the PA Series PA803U WUXGA LCD Professional Installation Projector This high-quality projector is designed to meet the needs of corporate and higher education users, offering a stunning 8000-lumen brightness that ensures clear, vibrant images even in well-lit environments.

The projector boasts a WUXGA resolution of 1920x1200, delivering sharp, detailed visuals that are crucial for presentations in fields like design, architecture, or engineering. With its multitude of digital inputs, this projector offers seamless connection to any computer or high-definition device, making it a reliable choice for professional presentations.

The PA803U projector stands out with its advanced features like 4K readiness, HDR10, and BT.2020 signal support on all digital inputs, ensuring you can display stunning 4K 60P content without losing critical details. The built-in edge blending and stacking capabilities, along with the TileMatrix feature, allow for a 4Kx2K resolution utilizing four projectors via HDBaseT Loop Out, creating a seamless multi-display setup.

The projector also offers a range of integrated software applications such as DisplayNote®, Crestron Roomview, AMX Beacon, Extron XTP, and PJ link, providing complete interactivity and control. The optional MultiPresenter Stick offers easy network connection with up to 12 devices at once, supporting screen mirroring for Android and Windows devices.

The PA803U projector is also designed for flexibility and convenience. The tilt-free installation capabilities and the optional powered bayonet style lenses make it ideal for any install environment, including portrait orientation. The built-in HDBaseT support simplifies installations, supporting uncompressed full HD digital video, audio, Ethernet, power, and various control signals with a single cable.

In addition, the projector offers advanced features like 3D capabilities when combined with active shutter glasses and 3D emitter, geometric correction for projecting on non-standard surfaces, and a 10,000-hour filter life for reduced maintenance.

In conclusion, the PA Series PA803U WUXGA LCD Professional Installation Projector is a durable, advanced, and professional choice for those seeking high-quality visuals and versatile functionality in their presentations.

NEC PA803U Features

  • High-lumen projector with WUXGA 1920x1200 resolution for sharp, detailed visuals
  • Multiple digital inputs for seamless connection to computers and high-definition devices
  • 4K readiness, HDR10, and BT.2020 signal support on all digital inputs for stunning visuals
  • Integrated software applications for complete interactivity and control
  • Tilt-free installation and optional powered lenses for flexible setup
  • Built-in HDBaseT support for simplified installations with a single cable
  • Advanced 3D capabilities and geometric correction for versatile projection options
  • Long-lasting 10,000-hour filter life for reduced maintenance

Key Features

  • Experience stunning visuals with 8000 Lumens, perfect for large venues needing brightness.
  • Enjoy detailed images with WUXGA resolution (1920x1200), ideal for professional presentations.
  • This LCD projector offers versatile connectivity options, including HDMI and HDBaseT inputs.
  • Achieve optimal image alignment with powered lens shift and keystone correction features.
  • Benefit from a long lamp life of up to 20000 hours, reducing maintenance and costs.
  • Create seamless large-scale displays with edge blending and stacking capabilities.

What's in the box:

  • NEC PA Series PA803U WUXGA LCD Professional Installation Projector without Lens
  • Remote Control
  • Batteries
  • Power Cord
  • User's Manual on CD-ROM
  • Lens Hole Cap
  • Lens Anti-theft Screw
  • Security Sticker
  • Quick Start Guide
  • Product Registration Card
  • NEC 3 Year Parts and Labor Warranty with InstaCare Next Business Day Exchange Upon Registration on Projector
  • NEC 1 Year or 500 Hours (Whichever Comes First) Warranty on Lamp
