Review Summary
DLP (0.67" DMD)
10000 Lumens (normal)
WUXGA 1920 x 1200
4K 4096 x 2160
Up to 10,000:1 with dynamic contrast
Laser/Phosphor
Up to 20000 hours
40 to 300" (diagonal)
1.5 to 179.8' (0.5 to 54.8m)
Tele: 2.1 to 19.1 deg.
Wide: 3.3 to 24 deg.
Powered
Variable
Powered
Powered +0.5/-0.3 vertical, +0.2/-0.1 horizontal
1.73 - 2.27:1
F=1.64 to 1.86, f=25.7 to 33.7mm
+/- 40 deg. horizontal, +/- 40 deg. vertical
Horizontal:
Analog: 15-100kHz, Digital: 15-153kHz
Vertical:
Analog: 48-120Hz, Digital: 24-120Hz
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
VGA, SVGA, XGA, SXGA, SXGA+, WXGA, UXGA, FHD, WUXGA, 2K, QXGA, WQXGA, 4k
Yes
RGB1(analog): VGA 15-pin D-sub
RGB2(analog): 5-BNC
RGB2(digital): HDMI w/HDCP
RGB4(digital): DisplayPort w/HDCP
RGB5(digital): HDBaseT
Monitor out: HDMI
RS-232, IR, HDBaseT, Stereo Mini, PJ-45
Separate Sync / Composite Sync / Sync on G
HDBaseT, RJ-45
100-240V AC, 50/60 Hz
11.6-5.2A
Normal: 1220W
ECO Mode: 625W
Standby: 4.3W
Standby Power Saving: 0.2W
NP16FL, NP17ZL, NP18ZL, NP19ZL, NP20ZL, NP21ZL, NP31ZL, NP39ZL
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Normal: 42dB
Eco: 38dB
USA: UL(UL60950-1/IEC60825-1 Ed.2), FCC Part15 Class A Canada: C-UL(CSA60950-1/IEC60825-1 Ed.3/IEC62471-5), ICES-003 Class A
Wireless LAN
Cornerstone
Geometric Correction
Auto power on
ECO Mode technology
Virtual Remote
Sleep timer
Quick power-off
Built-in wall color correction
Advanced AccuBlend
AutoSense
41 to 104 deg. F (5 to 40 deg. C)
-14 to 122 deg. F (-26 to 50 deg. C)
20-80% non-condensing
500 x 583 x 216mm (19.69 x 22.95 x 8.50")
63.9 lbs (28.98kg)
Lens: 1.9 lbs (0.86kg)
805736063004

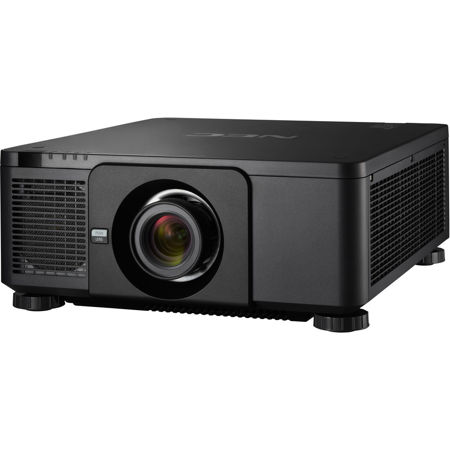

The NEC NP-PX1004UL WUXGA Professional Installation Laser Projector is a high-quality, durable, and reliable choice for businesses and educational institutions seeking advanced and innovative projection technology. This state-of-the-art projector is equipped with a laser/phosphor light source and comes bundled with the NP18ZL zoom lens, ensuring bright, consistent images with superior color fidelity.
With its impressive 10,000 lumens output, the NP-PX1004UL is capable of delivering crystal-clear, vibrant visuals even in well-lit environments, making it ideal for applications where ambient light is present. The native WUXGA resolution of 1920x1200 pixels guarantees high-definition images with an exceptional level of detail and clarity, perfect for presentations, videos, and graphics that demand precision.
Designed for versatility, the NP-PX1004UL supports tilt-free and portrait mode installations, opening up possibilities for creative displays in retail spaces, simulation setups, and theme park attractions. The included laser module boasts an impressive 20,000 hours of virtually maintenance-free operation, significantly reducing the total cost of ownership and ensuring long-term, eco-friendly performance.
This projector is equipped with TileMatrix technology, which enables 4Kx2K resolution through digital loop-through capabilities, and integrated edge blending, allowing for seamless multi-projector setups. The built-in HDBaseT simplifies installations by using a single cable for video, audio, and control signals.
The NP-PX1004UL offers a suite of advanced features, including 8 bayonet-style lenses for quick and easy lens exchange, covering projection distances between 1.5 and 179.5 feet. Advanced AccuBlend ensures compatibility with non-native resolution sources, while the built-in wall color correction presets adapt color tones for accurate displays on non-white surfaces.
Cornerstone correction provides horizontal, vertical, and diagonal image adjustments, ensuring perfectly aligned images even when the projector is positioned at an angle. Crestron Roomview allows for unified network management of multiple projectors, and the Direct Power Off feature ensures the lamp is properly cooled down even in the event of a power interruption.
Utilizing the latest Texas Instruments DLP engine with BrilliantColor technology, the NP-PX1004UL delivers high-contrast images with a 10,000:1 ratio, ensuring deep blacks and vibrant colors. Dual computer inputs facilitate quick transitions between presentations, and ECO Mode extends lamp life while reducing noise and ownership costs.
Designed for extended use, this projector is capable of operating 24x7 without compromising performance. Geometric correction enables projection on unconventional surfaces, and the landscape/portrait capability allows for distortion-free content display in various orientations. The vertical and horizontal lens shift offers flexible placement options, and the Open Pluggable Specification (OPS) slot ensures easy digital signage integration.
Additional features include PIP/POP/Side-by-Side for multi-source display, power zoom and focus for remote lens adjustment, and TileMatrix for custom video wall configurations. The tilt-free installation allows 360-degree rotation, and the Virtual Remote feature enables control over VGA without extra cables.
The NEC NP-PX1004UL WUXGA Professional Installation Laser Projector is a top-tier choice for those who require a powerful, versatile, and cost-effective projection solution for their professional environments.
