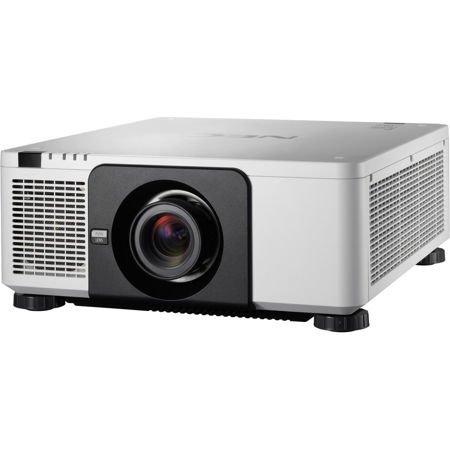

NEC NP-PX1004UL WUXGA Professional Installation Laser Projector with NP18ZL Lens, 1920x1200, 10000 Lumens, White

SKU: NCNPPX14ULWB MFR: NP-PX1004UL-W-18
$22,549.00
Earn VIP Reward Points

Key Features

  • Experience stunning visuals with 10000 Lumens, perfect for large venues needing brightness.
  • Enjoy razor-sharp detail with WUXGA resolution, ideal for detailed presentations and designs.
  • The laser projector provides up to 20000 hours of lamp life, reducing maintenance costs.
  • Achieve flexible placement with powered lens shift, ensuring a perfectly aligned image every time.
  • Connect seamlessly with HDMI, DisplayPort, and HDBaseT inputs for all your devices.
  • This professional projector delivers vibrant images with a dynamic 10,000:1 contrast ratio.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

NEC NP-PX1004UL Specifications

  • Display Technology

    DLP (0.67" DMD)

  • Light Output

    10000 Lumens (normal)

  • Native Resolution

    WUXGA 1920 x 1200

  • Maximum Resolution

    4K 4096 x 2160

  • Contrast Ratio

    Up to 10,000:1 with dynamic contrast

  • Lamp Type

    Laser/Phosphor

  • Lamp Life

    Up to 20000 hours

  • Screen Size

    40 to 300" (diagonal)

  • Projection Distance

    1.5 to 179.8' (0.5 to 54.8m)

  • Projector Angle

    Tele: 2.1 to 19.1 deg.
    Wide: 3.3 to 24 deg.

  • Lens: Zoom

    Powered

  • Lens: Zoom Ratio

    Variable

  • Lens: Focus

    Powered

  • Lens: Shift

    Powered +0.5/-0.3 vertical, +0.2/-0.1 horizontal

  • Lens: Throw Ratio

    1.73 - 2.27:1

  • Lens

    F=1.64 to 1.86, f=25.7 to 33.7mm

  • Keystone Correction

    +/- 40 deg. horizontal, +/- 40 deg. vertical

  • Synchronization Range

    Horizontal:
    Analog: 15-100kHz, Digital: 15-153kHz

    Vertical:
    Analog: 48-120Hz, Digital: 24-120Hz

  • Supported Video Standards

    NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM

  • SD/HD Video Signal Compatibility

    480i, 480p, 576i, 576p, 720p, 1080i, 1080p

  • PC Signal Compatibility

    VGA, SVGA, XGA, SXGA, SXGA+, WXGA, UXGA, FHD, WUXGA, 2K, QXGA, WQXGA, 4k

  • Macintosh Compatibility

    Yes

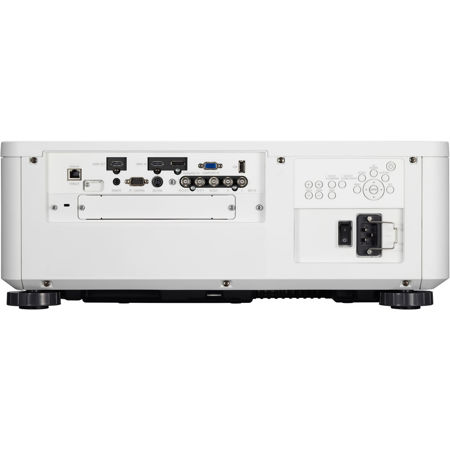

  • Input/Output Terminals

    RGB1(analog): VGA 15-pin D-sub
    RGB2(analog): 5-BNC
    RGB2(digital): HDMI w/HDCP
    RGB4(digital): DisplayPort w/HDCP
    RGB5(digital): HDBaseT
    Monitor out: HDMI

  • External Control

    RS-232, IR, HDBaseT, Stereo Mini, PJ-45

  • Sync Compatibility

    Separate Sync / Composite Sync / Sync on G

  • Networking

    HDBaseT, RJ-45

  • Power Requirements

    100-240V AC, 50/60 Hz

  • Input Current

    11.6-5.2A

  • Power Consumption

    Normal: 1220W
    ECO Mode: 625W
    Standby: 4.3W
    Standby Power Saving: 0.2W

  • Optional Lenses

    NP16FL, NP17ZL, NP18ZL, NP19ZL, NP20ZL, NP21ZL, NP31ZL, NP39ZL

  • Installation Orientation

    Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear

  • Fan Noise

    Normal: 42dB
    Eco: 38dB

  • Regulations

    USA: UL(UL60950-1/IEC60825-1 Ed.2), FCC Part15 Class A Canada: C-UL(CSA60950-1/IEC60825-1 Ed.3/IEC62471-5), ICES-003 Class A

  • Additional Functions

    Wireless LAN
    Cornerstone
    Geometric Correction
    Auto power on
    ECO Mode technology
    Virtual Remote
    Sleep timer
    Quick power-off
    Built-in wall color correction
    Advanced AccuBlend
    AutoSense

  • Operating Temperature

    41 to 104 deg. F (5 to 40 deg. C)

  • Storage

    -14 to 122 deg. F (-26 to 50 deg. C)

  • Humidity

    20-80% non-condensing

  • Dimensions (WxDxH)

    500 x 583 x 216mm (19.69 x 22.95 x 8.50")

  • Weight

    63.9 lbs (28.98kg)
    Lens: 1.9 lbs (0.86kg)

  • UPC Code

    805736062816

1 Accessories for NEC NP-PX1004UL WUXGA Professional Installation Laser Projector with NP18ZL Lens, 1920x1200, 10000 Lumens, White

  • All Accessories (1)
  • Stands (1)

About NEC NP-PX1004UL

What sets the NEC NP-PX1004UL WUXGA Professional Installation Laser Projector apart is its cutting-edge laser/phosphor light source technology, delivering a new caliber of projection performance. This high-quality, powerful projector is bundled with the NP18ZL zoom lens, offering versatility and precision in a wide range of professional settings.

Boasting a remarkable 10,000 lumens of brightness and a high contrast ratio of 2000:1, the NP-PX1004UL ensures vibrant, clear images even in well-lit environments, making it an ideal choice for business and educational applications. Its WUXGA resolution of 1920x1200 surpasses standard projectors, providing exceptional detail and clarity for high-resolution content.

The innovative design allows for tilt-free and portrait mode installations, expanding the possibilities for digital signage, simulation, and theme park applications. With an impressive 20,000 hours of virtually maintenance-free operation, this reliable and durable projector significantly reduces the total cost of ownership.

Eco-friendly and cost-effective, the NP-PX1004UL's lamp-less operation is complemented by a suite of advanced features. TileMatrix technology supports a 4Kx2K resolution through digital loop-through capabilities, while integrated edge blending ensures seamless multi-projector setups. The built-in HDBaseT simplifies installations with a single cable solution for video, audio, and control signals.

The projector's eight bayonet-style lenses support quick exchanges, catering to various projection distances for ultimate flexibility. Advanced AccuBlend technology guarantees high-quality images from non-native resolution sources, and the built-in wall color correction presets adapt to non-white surfaces for accurate color projection.

Cornerstone correction, along with vertical and horizontal lens shift, offers comprehensive image alignment, ensuring a perfectly proportioned picture even when the projector is positioned at an angle. The inclusion of Crestron Roomview allows for centralized management of multiple networked projectors, enhancing control and efficiency.

DLP technology from Texas Instruments, featuring BrilliantColor, provides high-contrast images with improved color accuracy. Dual computer inputs facilitate swift transitions between presentations, and ECO Mode extends the projector's life while minimizing noise and ownership costs.

Designed for extended use, including 24x7 operation, the NP-PX1004UL is equipped with geometric correction for projecting onto unconventional surfaces, and landscape/portrait capability for versatile content orientation. Power zoom and focus, accessible via remote control, make setup and adjustments effortless.

Stacking capabilities amplify brightness for large screens in bright settings, while TileMatrix assists in creating customized video wall configurations. The tilt-free installation feature and virtual remote control via VGA cable add to the projector's user-friendly design, ensuring it stands out as a top-tier choice for professional installations.

NEC NP-PX1004UL Features

  • High-quality WUXGA laser projector with 1920x1200 resolution for superior image clarity
  • Powerful 10,000 lumens brightness for clear visibility in well-lit environments
  • Bundled with NP18ZL zoom lens for versatile professional installations
  • Durable and reliable with 20,000 hours of virtually maintenance-free operation
  • Innovative TileMatrix technology for 4Kx2K resolution and seamless multi-projector setups
  • Eco-friendly, lamp-less operation with ECO Mode for extended projector life and reduced noise

Key Features

  • Experience stunning visuals with 10000 Lumens, perfect for large venues needing brightness.
  • Enjoy razor-sharp detail with WUXGA resolution, ideal for detailed presentations and designs.
  • The laser projector provides up to 20000 hours of lamp life, reducing maintenance costs.
  • Achieve flexible placement with powered lens shift, ensuring a perfectly aligned image every time.
  • Connect seamlessly with HDMI, DisplayPort, and HDBaseT inputs for all your devices.
  • This professional projector delivers vibrant images with a dynamic 10,000:1 contrast ratio.

What's in the box:

  • NEC NP-PX1004UL WUXGA Professional Installation Laser Projector with NP18ZL Lens
  • Remote Control
  • Batteries
  • Power Cord
  • User Manual
  • Lens Anti-theft Screw
  • Quick Start Guide
  • Product Registration Card
  • NEC 5 Year or 2000 Hours (Whichever Comes First) Parts and Labor Warranty with First year InstaCare Service
