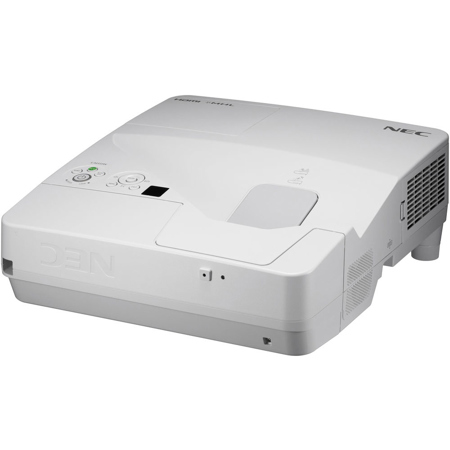

NEC NP-UM361XI-WK XGA Ultra Short Throw LCD Interactive Projector with Wall Mount, 1024x768, 3600 Lumens

SKU: NCNPUM361XIW

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

NEC NP-UM361XI-WK Specifications

  • Optical: Display Technology

    0.63" LCD with MLA

  • Optical: Light Output

    3600 (lumens)

  • Optical: Resolution

    Native: XGA 1024 x 768
    Maximum: WUXGA 1920 x 1200

  • Optical: Contrast Ratio

    6000:1 (up to)

  • Optical: Lamp Type

    255W AC

  • Optical: Lamp Life

    3000 hours normal / 6000 hours eco (up to)

  • Optical: Screen Size

    61.5 x 116.6" / 1562.1 x 2961.64mm (diagonal)

  • Optical: Throw Ratio

    0.36:1

  • Optical: Projection Distance

    17.6 x 33.6" / 447.04 x 853.44mm

  • Optical: Projector Angle

    53.1 deg.

  • Optical: Lens

    Zoom: 1 to 1.4
    Focus: Manual
    F-#, f-#: F=1.80, f=4.78mm
    Keystone Correction: +/- 10 deg. Horizontal, +/- 10 deg. Vertical

  • Scan Rate

    Horizontal: 15 to 100kHz
    Vertical: 50 to 120Hz

  • Supported Video Standards

    NTSC, NTSC4.43, PAL, PAL-M, PAL-N, PAL 60, SECAM

  • SD/HD Video Signal Compatibility

    480i, 480p, 576i, 576p, 720p, 1080i, 1080p

  • PC Signal Compatibility

    VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA

  • Macintosh Compatibility

    Yes

  • Input/Output Terminals

    RGB1 (analog): 15-pin, component video using ADP-CV1E adapter
    RGB2 (digital): HDMI /MHL w/HDCP
    RGB3 (digital): HDMI with HDCP
    RGB4 (digital): USB A Type
    Video 1: RCA
    Audio 1: 1/8" stereo
    Audio 2: L/R RCA (shared by video sources)
    Audio Out: Yes (variable)
    Monitor Out: Yes
    Microphone: 1/8" stereo
    Wireless LAN: Optional

  • Audio

    20W speaker

  • External Control

    RS-232, IR, Wired LAN, Wireless LAN (optional), USB

  • Sync Compatibility

    Separate Sync / Composite Sync / Sync on G

  • Installation Orientation

    Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear

  • Fan Noise

    39dB normal / 33dB eco

  • Regulations

    USA UL 60950-1 FCC Class B, C-UL CSA 60950-1 ICES-003 Class B

  • Input Current

    3.8A / 1.6A

  • Power Requirements

    100 to 240V AC, 50/60Hz

  • Power Consumption

    Normal Mode / ECO Mode / Standby: 337W / 221W / 8W / 0.2W

  • Operating Temperature

    41 to 104 deg. F / 5 to 40 deg. C

  • Storage Temperature

    -4 to 122 deg. F / -20 to 50 deg. C

  • Operating Humidity

    20-80% non-condensing

  • Dimensions (W x D x H)

    26.5 x 20.2 x 22.5" / 673.1 x 513.08 x 571.5mm

  • Weight

    55lbs / 24.95kg

  • UPC Code

    805736056822

About NEC NP-UM361XI-WK

The UM361xi-WK interactive projector brings collaboration to both classrooms and conference rooms alike. Together with a PC or Mac, the teaching tool will increase students' attention and interaction within the classroom, increasing their retention of subject matter. This bundle includes the 3600-lumen UM361x ultra short throw projector, NP03Wi interactive module and dual stylus pens and NP04WK1 wall mount kit.

The UM361xi-WK1 delivers an extremely short throw distance and the interactive eBeam module attaches directly to the front of the projector and uses IR to determine the pen's position within the image for accurate control and annotation. The UM361x is able to mount on the wall directly above the screen using the NP04WK1. Features of the projector include a powerful 20W speaker, closed captioning, RJ-45, wireless LAN (optional), dual HDMI, VGA and a microphone input to amplify the presenter's voice. Includes DisplayNote Free Presenter License.

NEC NP-UM361XI-WK Features

  • New interactive system utilizing dual pens and auto calibration converts a standard whiteboard into a complete interactive surface for annotation and collaboration locally or via web meetings
  • Ultra short throw lens (0.36:1 throw ratio) helps eliminate shadows on the screen along with projected light in the presenter's eyes created by traditional front projection systems
  • Comprehensive input/output panel, including dual HDMI, VGA and a microphone input
  • ECO Mode technology helps extend lamp life and lowers power consumption
  • Horizontal & Vertical Keystone adjustment or Cornerstone Correction ensures the image will fill the screen every time
  • Remote monitoring and control of projector over network saves IT employee time and reduces costs related to projector operation. Includes DisplayNote Free Presenter License
  • Microphone Input
  • USB Viewer
  • 6000 hour Filter Life
  • Auto power on
  • ECO Mode technology
  • Closed captioning
  • Variable audio out
  • Carbon savings meter
  • Virtual Remote
  • Sleep timer
  • Quick power-off
  • Built-in wall color correction
  • Advanced AccuBlend
  • AutoSense
  • Wireless Image Utility

Key Features

  • ECO Mode technology helps extend lamp life and lowers power consumption
  • Microphone Input
  • 6000 hour Filter Life
  • ECO Mode technology
  • Closed captioning
  • Variable audio out

What's in the box:

  • NEC NP-UM361XI-WK XGA Ultra Short Throw LCD Interactive Projector with Wall Mount
  • Remote Control
  • Batteries
  • RGB Cable
  • User's Manual
  • Product Registration Card
  • NEC 2 Year for Projector and 1 Year or 500 Hours for Lamp (Whichever Comes First) Limited Warranty
