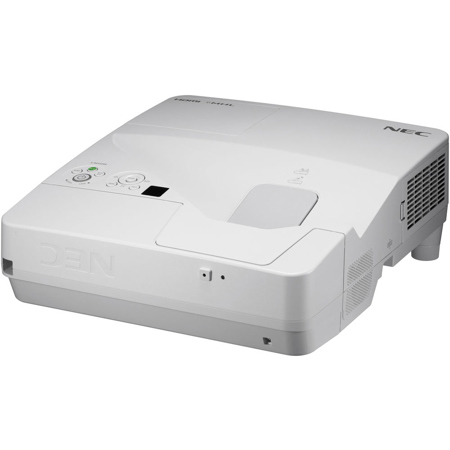

NEC NP-UM361X-WK XGA Ultra Short Throw LCD Projector with Wall Mount, 1024x768, 3600 Lumens

SKU: NCNPUM361XWK

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

NEC NP-UM361X-WK Specifications

  • Display Technology

    0.63" LCD with MLA

  • Light Output

    3600 lumens

  • Resolution

    Native: XGA 1024 x 768
    Maximum: WUXGA 1920 x 1200

  • Contrast Ratio

    Up to 6000:1

  • Lamp Type

    255W AC

  • Lamp Life

    Normal: Up to 3800 hours
    ECO: Up to 6000 hours

  • Screen Size

    61.5 to 116.6" / 1562 to 2962mm (diagonal)

  • Throw Ratio

    0.36:1

  • Projection Distance

    17.6 to 33.6" / 448 to 854mm

  • Projector Angle

    53.1 deg.

  • Lens

    Zoom: 1 to 1.4
    Focus: Manual
    Focal Length: F = 1.80 (f = 4.78mm)

  • Keystone Correction

    Horizontal: +/- 10 deg.
    Vertical: +/- 10 deg.

  • Signal Compatibility: Scan Rate

    Horizontal: 15 to 100kHz
    Vertical: 50 to 120Hz

  • Signal Compatibility: Supported Video

    NTSC, NTSC4.43, PAL, PAL-M, PAL-N, PAL 60, SECAM (Standards)

  • Signal Compatibility: SD/HD Video

    480i, 480p, 576i, 576p, 720p, 1080i, 1080p

  • PC Signal Compatibility

    VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA

  • Signal Compatibility: Macintosh

    Yes

  • Signal Connectivity: I/O Terminals

    RGB1 (analog): 15-pin, component video using ADP-CV1E adapter
    RGB2 (digital): HDMI/HML w/HDCP
    RGB3 (digital): HDMI w/HDCP
    RGB4 (digital): USB A Type
    Video 1: RCA
    Audio 1: 1/8 in. stereo
    Audio 2: L/R RCA (shared by video sources)
    Audio Out: Yes (variable
    Monitor Out: Yes
    Microphone: 1/8 in. stereo
    Wireless LAN: Optional

  • Signal Compatibility/Connectivity: Audio

    20W speaker

  • Signal Connectivity: External Control

    RS-232, IR, Wired LAN, Wireless LAN (optional), USB

  • Signal Compatibility: Sync

    Separate Sync / Composite Sync / Sync on G

  • Input Current

    3.8A / 1.6A

  • Installation Orientation

    Table/Front, Table/Rear, Ceiling/Front, Ceiling/Rear

  • Fan Noise

    Normal: 38dB / Eco: 32dB

  • Regulations

    USA UL 60950-1 FCC Class B, C-UL CSA 60950-1 ICES-003 Class B

  • Power Consumption

    337W / Normal Mode: 221W / ECO Mode: 8W / Standby: 0.2W

  • Power Requirements

    100 to 240V AC, 50 / 60Hz

  • Operating Temperature

    41 to 104 deg. F / 5 to 40 deg. C

  • Humidity

    20 to 80% non-condensing

  • Storage Temperature

    -4 to 122 deg. F / -20 to 50 deg. C

  • Dimensions (W x D x H)

    14.9 x 16.9 x 6.3" / 378.46 x 429.26 x 160.02mm

  • Weight

    12.4lbs / 5.62kg

  • UPC Code

    805736056310

About NEC NP-UM361X-WK

NEC's UM361x-WK includes the 3600-lumen UM361x ultra short throw projector and NP04WK1 wall mount kit. This model delivers an extremely short throw distance for education and corporate applications. A complete interactive projector solution can be created using the optional NP03Wi interactive system (dual pens) with auto calibration.

With its ability to be mounted to the wall directly above the screen on which it projects, this model helps eliminate the shadows and glare typically found with standard projection systems. The UM361x projector includes a powerful 20W speaker, closed captioning and RJ-45 for remote management over a network and its input panel includes dual HDMI, VGA and a microphone input to amplify the presenter's voice.

NEC NP-UM361X-WK Features

  • Ultra short throw lens (0.36:1 throw ratio) helps eliminate shadows on the screen along with projected light in the presenter's eyes created by traditional front projection systems
  • Comprehensive input/output panel, including dual HDMI, VGA and a microphone input
  • ECO Mode technology helps extend lamp life and lowers power consumption
  • Horizontal & Vertical Keystone adjustment or Cornerstone Correction ensures the image will fill the screen every time
  • Remote monitoring and control of projector over network saves IT employee time and reduces costs related to projector operation
  • Optional interactive system (dual pens) allows for annotation and collaboration on a whiteboard locally or via web meetings
  • Microphone Input
  • USB Viewer
  • 6000 hour Filter Life
  • Auto power on
  • ECO Mode technology
  • Closed captioning
  • Variable audio out
  • Carbon savings meter
  • Virtual Remote
  • Sleep timer
  • Quick power-off
  • Built-in wall color correction
  • Advanced AccuBlend
  • AutoSense
  • Wireless Image Utility

Key Features

  • ECO Mode technology helps extend lamp life and lowers power consumption
  • Microphone Input
  • 6000 hour Filter Life
  • ECO Mode technology
  • Closed captioning
  • Variable audio out

What's in the box:

  • NEC NP-UM361X-WK XGA Ultra Short Throw LCD Projector with Wall Mount
  • Remote Control
  • Batteries
  • RGB Cable
  • User's Manual
  • Product Registration Card
  • NEC 2 Year for Projector and 1 Year or 500 Hours for Lamp (Whichever Comes First) Limited Warranty
