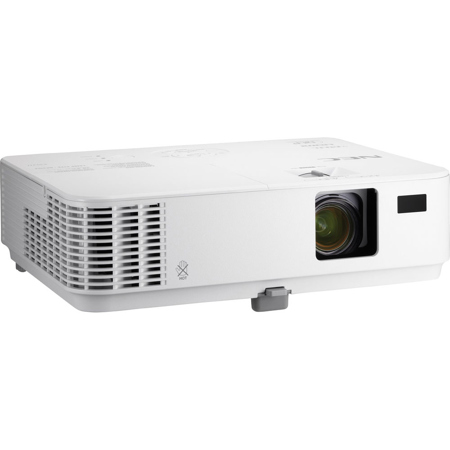

NEC NP-V302H 1080p DLP Mobile Projector
See all NEC items

NEC NP-V302H 1080p DLP Mobile Projector, 1920x1080, 3000 Lumens

SKU: NCNPV302H
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

NEC NP-V302H Specifications

  • Display Technology

    DLP (0.65" DMD)

  • Light Output(Lumens)

    3000 normal

  • Resolution

    Native: 1080p 1920 x 1080
    Maximum: 1080p 1920 x 1080

  • Contrast Ratio

    Up to 8000:1 with Dynamic Contrast

  • Lamp Type

    218W AC

  • Lamp Life

    Up to 3500 hours normal / 6000 hours eco

  • Screen Size

    40 to 300" / 1016.00 to 7620.02mm(Diagonal)

  • Throw Ratio

    1.5 to 1.8

  • Projection Distance

    4.9 x 32.8' / 1.49 x 10.00m

  • Projector Angle

    11.7 deg. tele / 14.0 deg. wide

  • Lens

    Zoom: 1 to 1.2
    Focus: Manual
    F number, fnumber: F=2.55 - 2.85, f=22.41 to 28.82mm

  • Keystone Correction

    Horizontal: /- 30 deg., Vertical: +/- 30 deg.

  • Signal Compatibility: Scan Rate

    Horizontal: 15-100 kHz, Vertical: 50-120 Hz

  • Signal Compatibility: Supported Video

    NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM

  • Signal Compatibility: SD/HD Video Signal

    480i, 480p, 576i, 576p, 720p, 1080i, 1080p

  • Signal Compatibility: PC Signal

    VGA, SVGA, XGA, SXGA, SXGA+, UXGA, 1080p

  • Signal Compatibility: Macintosh

    Yes

  • Input/Output Terminals

    RGB1(analog): VGA 15-pin D-sub, Component video using ADP-CV 1E
    RGB2(digital): HDMI(MHL) w/HDCP
    RGB3(digital): HDMI w/HDCP
    Video 1: RCA
    Audio 1: 1/8 in. stereo
    Audio 2: L/R RCA (shared by video sources)
    Monitor out: VGA 15-pin D-sub
    Audio out: Yes (variable)

  • Audio

    8W speaker

  • External Control

    RS-232, IR, DDC/CI,RJ-45

  • Sync Compatibility

    Separate Sync / Composite Sync / Sync on G

  • Input Current

    2.8A

  • Power Consumption

    Normal: 280W / ECO Mode: 217W / Standby: 3.0W / Standby Power Saving: 0.5W

  • Installation Orientation

    Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear

  • Fan Noise

    35 dB normal / 32 dB eco

  • Regulations

    USA: UL60950-1 (2) / UL, FCC Part15 Class A / FCC DoC, Canada CSA C22.2 60950-1-07 (2) / C-UL, ICES-003 Class A / DoC of Canada

  • Operating Temperature

    41 to 104 deg. F / 5 to 40 deg. C

  • Humidity

    20-80% non-condensing

  • Storage

    -14 to 122 deg. F / -26 to 50 deg. C

  • Power Requirements

    100-240V AC, 50/60 Hz AC, 50/60 Hz

  • Dimensions (W x D x H)

    12.6 x 9.8 x 4.0" / 320.04 x 248.92 x 101.60mm

  • Weight

    6.4lbs / 2.90kg

  • UPC Code

    805736057287

About NEC NP-V302H

The NEC V302H with a native 1080p resolution is designed to provide higher brightness for classrooms, meeting and conference rooms that have heavy ambient light but require a small projector. This 3000-lumen lightweight mobile model is 3D Ready and includes a 8W speaker, closed captioning and horizontal & vertical keystone correction. Enhanced connectivity, including dual HDMI (HDMI 1 supports MHL), computer, composite inputs and RJ45, are clearly color-coded and labeled on the panel.

NEC NP-V302H Features

  • Native 1080p resolution for connection to full high definition sources
  • Horizontal & Vertical Keystone adjustment to fit the screen properly when used in portable applications
  • ECO Mode technology helps extend lamp life and lowers power consumption
  • Dual HDMI input connects you to high-definition sources
  • HDMI 1 supports MHL for connection to smart phones
  • Crestron RoomView Connected provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Native 1080p resolution for connection to full high definition sources
  • ECO Mode technology helps extend lamp life and lowers power consumption
  • Dual HDMI input connects you to high-definition sources
  • HDMI 1 supports MHL for connection to smart phones

What's in the box:

  • NEC NP-V302H 1080p DLP Mobile Projector
  • Remote Control
  • Batteries
  • User Manual On CD-ROM
  • Quick Start Guide
  • Product Registration Card
  • NEC 2 Year Warranty (Excluding Consumables)
