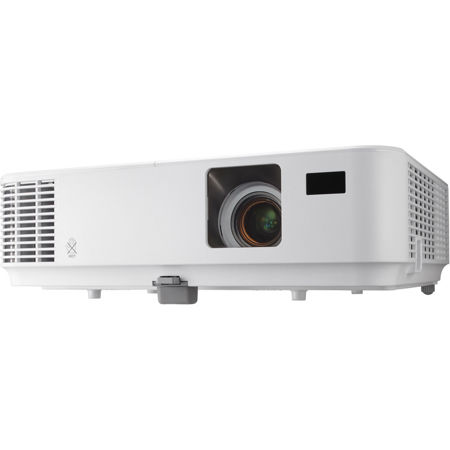

NEC NP-V332X XGA DLP Projector with Dual HDMI Input, 1024x768, 3300 Lumens, White

SKU: NCNPV332X

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

NEC NP-V332X Specifications

  • Display Technology

    DLP (0.55" DMD)

  • Light Output

    3300 Lumens (normal)

  • Native Resolution

    XGA 1024x768

  • Maximum Resolution

    1080p 1920x1080

  • Contrast Ratio

    10000:1 with Dynamic Contrast

  • Lamp Type

    218W AC
    ECO mode: 170W

  • Lamp Life

    3500 hours normal / 6000 hours eco

  • Screen Size

    30 to 300" / 76.20 to 762.00cm (diagonal)

  • Throw Ratio

    1.95 to 2.15

  • Projection Distance

    3.94 to 39.4' / 1.20 to 12.01m

  • Projector Angle

    Tele: 12.8 deg.
    Wide: 14.0 deg.

  • Lens Zoom

    1 to 1.1

  • Lens Focus

    Manual

  • Lens F number, fnumber

    F=2.41 - 2.55, f=21.8 to 24.0mm

  • Keystone Correction

    Horizontal: +/- 30 deg.
    Vertical: +/- 30 deg.

  • Horizontal Scan Rate

    15-100 kHz

  • Vertical Scan Rate

    50-120 Hz

  • Supported Video Standards

    NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM

  • SD/HD Video Signal Compatibility

    480i, 480p, 576i, 576p, 720p, 1080i, 1080p

  • PC Signal Compatibility

    VGA, SVGA, XGA, SXGA, SXGA+, UXGA, 1080p

  • Macintosh Compatibility

    Yes

  • Input/Output

    RGB1(analog): VGA 15-pin D-sub, Component video using ADP-CV 1E
    RGB2(digital): HDMI with HDCP
    RGB3(digital): HDMI with HDCP
    Video 1: RCA
    Audio 1: 1/8" stereo
    Audio 2: L/R RCA (shared by video sources)
    Monitor out: VGA 15-pin D-sub
    Audio out: Yes (variable)

  • Wired LAN port

    1x RJ- 45 (10BASE-T / 100BASE-TX)

  • Control terminals

    1x D-sub 9 pin

  • USB port

    1x Service

  • Audio

    8W speaker

  • External Control

    RS-232, IR, DDC/CI,RJ-45

  • Sync Compatibility

    Separate Sync / Composite Sync / Sync on G

  • Power Requirements

    100-240V AC, 50/60Hz

  • Input Current

    2.8A

  • Power Consumption

    Normal: 277W
    ECO Mode: 215W
    Standby: 3.0W
    Standby Power Saving: 0.5W

  • Additional Functions

    Filter Free Design
    Horizontal & Veritcal Keystone
    3D Ready, PC frame sequential at 120Hz
    Direct power on/off
    ECO Mode technology
    Closed captioning
    Virtual Remote
    Sleep timer
    Quick power-off
    Built-in wall color correction
    Advanced AccuBlend
    AutoSense

  • Installation Orientation

    Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear

  • Fan Noise

    35dB normal / 32dB eco

  • Regulations

    USA: UL60950-1 (2) / UL, FCC Part15 Class A / FCC DoC, Canada CSA C22.2 60950-1-07 (2) / C-UL, ICES-003 Class A / DoC of Canada

  • Operating Temperature

    41 to 104 deg. F / 5 to 40 deg. C

  • Storage Temperature

    14 to 122 deg. F / -10 to 50 deg. C

  • Humidity

    20-80% non-condensing

  • Dimensions (W x D x H)

    12.6 x 9.8 x 4.0" / 320.04 x 248.92 x 101.60mm

  • Weight

    6.2lbs / 2.81kg

  • UPC Code

    805736057294

About NEC NP-V332X

Mobility and high brightness are the focus of NEC's V332x. This model touts unrivaled affordability and helps you deliver presentations with high-contrast brilliance. The V332x, which displays bright images from the latest DLP engine, is compact, lightweight, easy-to-use and sets up quickly, making it ideal for use in meeting and conference rooms.

• Quick startup/cooling/shutdown minimizes projector setup and teardown between meetings
• Horizontal and vertical keystone correction
• ECO Mode technology helps extend lamp life and lowers power consumption
• Dual HDMI input connects you to high-definition sources
• Crestron RoomView Connected provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network
• Discreet source keys on remote for quick changes

Essential Features
• Bright images can be easily viewed in most applications
• Horizontal and vertical keystone correction ensures that a square image is displayed
• High contrast images from the latest Texas Instruments DLP engine featuring BrilliantColor technology with improved color accuracy
• Intuitive remote control provides one-touch source changes and complete menu control
• Integrated RJ45 connection for quick connection to the LAN 10/100 base-T capability
• Remote diagnostics enable the user to monitor and make adjustments to the projector remotely

Environmentally-Conscious
• Extended lamp life with ECO Mode technology increases lamp life up to 6000 hours, while lowering power consumption
• Power management enables projector to automatically turn off when an incoming signal is not detected from any of the inputs
• Quick start (3 to 4 seconds) lets you begin presenting in seconds while quick shutdown (immediate power off with no cooling required after shutdown) ensures efficient energy usage

Versatile and Powerful
• Native XGA, WXGA and 1080p resolution projectors quickly and accurately sync with non-native resolution computer signals
• Powerful 8-watt speaker provides volume needed for large rooms
• Built-in wall color correction presets provide for adaptive color tone correction to display properly on non-white surfaces
• Plug and Play setup and operation optimizes images displayed from computers and video sources
• Flexible input panel, color-coded and clearly labeled connects to computers, Blu-ray players and other sources using the VGA, Dual HDMI and composite inputs
• Compact size and lightweight design simplifies transport of projector
• AV mute and video image freeze allows you to control the presentation and focus audience attention
• Virtual Remote Tool corresponds to the VGA or RS-232 and allows users to utilize virtual remote functionality from a connected PC
• Supports 3D content viewing, 3D HDMI up to 144Hz, computer up to 120Hz.
• Share video and audio from a connected smart phone via MHL input

3D Ready
When combined with active shutter glasses (NP02GL), this projector uses DLP Link technology, developed by Texas Instruments, to create 3D images.

Advanced AccuBlend
Ensures detailed images when non-native resolution sources are connected to the projector.

AutoSense
Intuitively syncs the projector with most computer signals and features one-touch image optimization.

Built-In Closed Captioning
Enables decoding and display of text information from a video.

Built-in Wall Color Correction
Presets provide for adaptive color tone correction to display properly on non-white surfaces.

Crestron Roomview
Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.

ECO Mode
Extends lamp life, lowers audible noise and reduces total cost of ownership.

Variable Audio Out
Adjusts the volume of an external speaker system using the projector's remote control.

Virtual Remote
Used over the VGA cable to control the projector directly from a computer without the need for additional control cables.

Wired Network Connection
Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability).

Dual HDMI inputs (with HDCP)
Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers.

What's in the box:

  • NEC NP-V332X XGA DLP Projector with Dual HDMI Input
  • Remote Control
  • Batteries
  • Power Cord
  • RGB Cable
  • User manual On CD-ROM
  • Quick Start Guide
  • Important Information
  • Lens Cap
  • Security Sticker
  • NEC 2 Year for Projector (First Year Instacare Service) Limited Warranty
  • NEC 1 Year or 500 Hours for Lamp (Whichever Comes First) Limited Warranty
