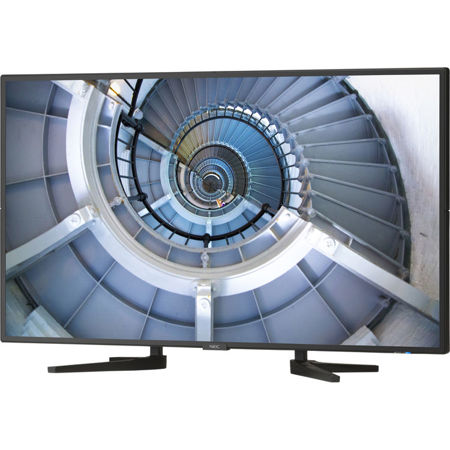

NEC 40" P-Series LED Commercial-Grade OPS PC Bundle

SKU: NCP404PC3

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

NEC 40" P-Series LED Commercial-Grade OPS PC Bundle Specifications

Display

Display

Jump to...
  • Panel Technology

    SPVA (P-DID)

  • Viewable Image Size

    40"

  • Native Resolution

    1920 x 1080

  • Supported Resolutions

    640 x 480, 800 x 600, 1024 x 768, 1280 x 720, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1400 x 1050, 1440 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 1920 x 2160, 3840 x 2160, 4096 x 2160

  • Pixel Pitch

    0.53mm

  • Backlight Type

    LED Edge-lit

  • Pixels Per Inch

    55@ native resolution

  • Brightness (typical)

    500cd/m square

  • Brightness (maximum)

    700cd/m square

  • Contrast Ratio (typical)

    4000:1

  • Viewing Angle

    178 Degree Vertical, 178 Degree Horizontal (89U/89D/89L/89R) @ CR>10

  • Response Time (Gray to Gray)

    8ms

  • Refresh Rate

    60Hz

  • Aspect Ratio

    16:9

  • Active Screen Area

    35.1 x 19.8" (88.56 x 49.81 cm)

  • Orientation

    Landscape/Portrait/Face Up/Face Down

  • Displayable Colors

    More than 1.08 billion (10-bit)

Synchronization Range

Jump to...
  • Horizontal (Analog/Digital)

    15.625/15.734/31.5 - 91.1KHz

  • Vertical

    50.0 - 85.0Hz (Analog), 24.0-85.0Hz (Digital)

Input Signal

Jump to...
  • Video

    Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS / DisplayPort

  • Sync

    Separate sync: TTL Level (Positive/Negative)
    Composite sync: TTL Level (Positive/Negative)
    Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Connectivity

Jump to...
  • PC Signal Compatibility

    Yes

  • Macintosh Compatibility

    Yes

  • Input Terminal Digital

    DisplayPort (1.2 with HDCP), HDMI (2.0 x 2 with HDCP), DVI-D (with HDCP)

  • Input Terminal Analog

    VGA 15-pin D-sub

  • Input Terminal Audio

    3.5mm Mini-Jack x2, DisplayPort Audio, HDMI Audio x2

  • Input Terminal External Control

    RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote)

  • Output Terminal Audio

    3.5mm Mini-Jack, External Speaker Jack (2)

  • Output Terminal Digital

    DisplayPort

  • Output Terminal External Control

    LAN (100Mb)

Power Consumption (typical)

Jump to...
  • On

    90W

  • ECO Mode Standby

    <0.5W

  • Power Consumption (typical)

    3.0 W

Power Consumption

Jump to...
  • Power Consumption (max brightness) On

    115W

  • Input Current

    2.9A - 1.2A @ 100V - 240V

VESA Hole Configuration Specifications

Jump to...
  • VESA Hole

    300 x 300mm (M6 x 4-hole)

Environmental Conditions

Jump to...
  • Operating Temperature

    32-104 Degree F / 0-40 Degree C

  • Operating Humidity

    20-80%

  • Operating Altitude

    9843' (3000 m)

  • Storage Temperature

    -4 - 140 Degree F / -20 - 60 Degree C

  • Storage Humidity

    10-90%

  • Storage Altitude

    40,000' (12,192 m)

Physical Specifications

Jump to...
  • Bezel Width (Left/Right, Top/Bottom)

    0.5"/0.5", 0.5"/0.5" ; 13.2mm/13.2mm, 13.2mm /13.2mm

  • Dimensions (W x H x D)

    With stand: 36.1 x 22.1-22.9 x 10.5" (91.8 x 56.06-58.06 x 26.77cm)
    Without stand: 36.1 x 20.9 x 2.2" (91.8 x 53.1 x 5.47cm)

  • Weight

    Without stand: 31.5 lb (14.3 kg)

  • UPC Code

    805736059014

About NEC 40" P-Series LED Commercial-Grade OPS PC Bundle

NEC's Digital Signage Solutions provide a complete bundled product for customers that need a professional-grade display and computer to source content. The P404-PC3 bundle includes a 40" P404 display and OPS-APIS-PS computer seamlessly integrated utilizing the expansion slot of the display. This built-in functionality allows for a clean, hidden integration while reducing the bill of materials needed for installation. The NEC P series boasts 700 cd/m2 brightness along with a new anti-glare surface that allows for efficient readability in higher ambient light situations and is ideal for 24/7 signage in airports, quick-serve restaurants, financial institutions and command and control.

• Stylish and sleak design allows for easy and unobtrusive integration into any environment
• 700 cd/m squarebrightness combined with full HD resolution and new anti-reflective screen surface will capture the attention of the audience while allowing for clear visibility in higher ambient light conditions
• Future proof modular expansion options including the ability to integrate Open Pluggable Specification (OPS) or a Raspberry Pi Compute Modules seamlessly into the display
• SpectraView Engine allows for complete color, intensity, gamma or uniformity control for the ultimate imaging performance
• Integrated Media Player allows for audio, video or image playback via USB or SD card that is also upgradeable via LAN
• Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for hassle-free 24/7 operation

NEC 40" P-Series LED Commercial-Grade OPS PC Bundle Features

  • Raspberry Pi Compute Module Compatible
  • SpectraView Engine Color Control (Including Uniformity Adjustment)
  • Out-of-box Uniformity Calibration
  • Integrated Temperature Sensors and Cooling Fans
  • On-Screen Key Guide
  • Ethernet Control and Communication
  • RS-232 Control and Communication
  • Landscape/Portrait/Face Up/Face Down Capable
  • Image Flip
  • TileMatrix (10 x 10)
  • Carbon footprint meter
  • 24/7 Scheduler with Real Time Clock
  • Holiday Settings
  • Screen saver function
  • Multi-Picture Mode
  • 25% haze panel
  • Ambient light sensor (AmbiBright)
  • Screen saver function
  • Optional human sensor
  • Intelligent Wireless Data (Near Field Communications)
  • Metal rear cabinet
  • Variable picture modes
  • Advanced video settings (Noise Reduction, Adaptive Contrast)
  • Input labeling
  • Backlight adjust
  • Aspect ratio control
  • Built-in 10W x 2 speakers
  • LED edge-lit backlighting
  • NaViSet Administrator Compatible
  • Auto ID/IP Address Control
  • Crestron RoomView Support
  • AMX Beacon
  • PJLInk Support
  • 10-bit color over HDMI
  • OPS/Expansion slot

Key Features

  • Raspberry Pi Compute Module Compatible
  • SpectraView Engine Color Control (Including Uniformity Adjustment)
  • Out-of-box Uniformity Calibration
  • Integrated Temperature Sensors and Cooling Fans
  • On-Screen Key Guide
  • Ethernet Control and Communication

What's in the box:

  • 40 " P-Series Commercial-Grade OPS PC Bundle
  • 3m Power Cord
  • 1.8m DVI-D Cable
  • Wireless Remote Control
  • Batteries
  • CD-ROM (User Manual)
  • SD Card Cover Slot
  • Screws
  • NEC 5 Year Limited Warranty on Display and 3 Year Limited Warranty on PC
