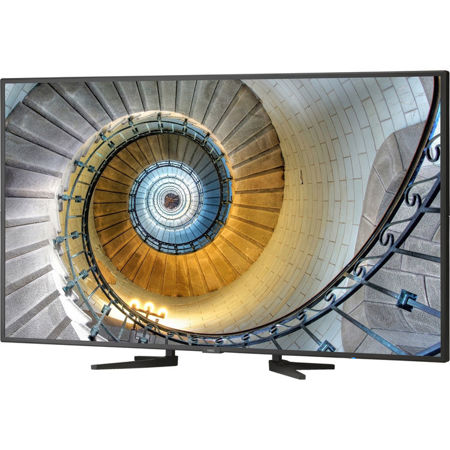

NEC 55" P-Series LCD Commerical-Grade Display

SKU: NCP554

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

NEC P-Series Display Specifications

Display

Display

Jump to...
  • Panel Technology

    S-IPS (P-DID)

  • Viewable Image Size

    55"

  • Native Resolution

    1920 x 1080

  • Supported Resolutions

    640 x 480, 800 x 600, 1024 x 768, 1280 x 720, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1400 x 1050, 1440 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 1920 x 2160, 3840 x 2160, 4096 x 2160

  • Pixel Pitch

    0.53mm

  • Backlight Type

    LED Edge-lit

  • Pixels Per Inch

    40@ native resolution

  • Brightness (typical)

    500cd/m square

  • Brightness (maximum)

    700cd/m square

  • Contrast Ratio (typical)

    1200:1

  • Viewing Angle

    178 Degree Vertical, 178 Degree Horizontal (89U/89D/89L/89R) @ CR>10

  • Response Time (Gray to Gray)

    8ms

  • Refresh Rate

    60Hz

  • Aspect Ratio

    16:9

  • Active Screen Area

    47.6 x 26.8" (120.96 x 68.04cm)

  • Orientation

    Landscape/Portrait/Face Up/Face Down

  • Displayable Colors

    More than 1.08 billion (10-bit)

Synchronization Range

Jump to...
  • Horizontal (Analog/Digital)

    Analog: 15.625/15.734/26.97./28.125/31.5-91.1 kHz Digital: 15.0 - 91.1 KHz

  • Vertical

    Analog: 24/25/30/50-85 Hz Digital: 24.0 - 85.0 Hz

Input Signal

Jump to...
  • Video

    Analog RGB 0.7 Vp-p/75 Ohms Digital TMDS / DisplayPort

  • Sync

    Separate sync: TTL Level (Positive/Negative)
    Composite sync: TTL Level (Positive/Negative)
    Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Connectivity

Jump to...
  • PC Signal Compatibility

    Yes

  • Macintosh Compatibility

    Yes

  • Input Terminal Digital

    DisplayPort (1.2 with HDCP), HDMI (2.0 x 2 with HDCP), DVI-D (with HDCP)

  • Input Terminal Analog

    VGA 15-pin D-sub

  • Input Terminal Audio

    3.5mm Mini-Jack x2, DisplayPort Audio, HDMI Audio x2

  • Input Terminal External Control

    RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote)

  • Output Terminal Audio

    3.5mm Mini-Jack, External Speaker Jack (2)

  • Output Terminal Digital

    DisplayPort

  • Output Terminal External Control

    LAN (100Mb)

Power Consumption (typical)

Jump to...
  • On

    125W

  • ECO Mode Standby

    <0.5W

  • Power Consumption (typical)

    3.0 W

Power Consumption

Jump to...
  • Power Consumption (max brightness) On

    175W

  • Input Current

    3.6A - 1.5A @ 100V - 240V

VESA Hole Configuration Specifications

Jump to...
  • VESA Hole

    300 x 300mm (M6 x 4-hole)

Environmental Conditions

Jump to...
  • Operating Temperature

    32-104 Degree F (0-40 Degree C)

  • Operating Humidity

    20-80%

  • Operating Altitude

    9843' (3000m)

  • Storage Temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Storage Humidity

    10-90%

  • Storage Altitude

    40,000' (12,192m)

Physical Specifications

Jump to...
  • Bezel Width (Left/Right, Top/Bottom)

    0.6"/0.6", 0.6"/0.6"; 14.2mm/14.2mm, 14.2mm /14.2mm

  • Dimensions (W x H x D)

    With stand: 49.0 x 29.3-30.1 x 10.5" (124.4 x 74.48-76.48 x 26.77cm)
    Without stand: 49.0 x 28.1 x 2.5" (124.4 x 71.4 x 6.29cm)

  • Weight

    Without stand: 54.2 lb (26.6 kg)

  • UPC Code

    805736059021

About NEC P-Series Display

Create maximum visual impact through seamless simplicity with the new professional NEC P series products. New contemporary and slim mechanical design with focused aesthetics allows for the smooth and stylistic integration into any type of environment. Their full metal chassis coupled with real-time temperature sensors and integrated cooling fans maintain the professional quality necessary for commercial environments. With a wide range of the latest connectivity interfaces including resolution support up to Ultra High Definition at 60Hz, these displays offer the future-proofing necessary for the investment. These displays also include expandability options such as the Open Pluggable Specification (OPS) and Raspberry Pi Compute Module slots for source integration directly into the display. The NEC P series boasts 700 cd/m2 brightness along with a new anti-glare surface that allows for efficient readability in higher ambient light situations and is ideal for 24/7 signage in airports, quick-serve restaurants, financial institutions and command and control.

• Stylish and sleak design allows for easy and unobtrusive integration into any environment
• 700 cd/m square brightness combined with full HD resolution and new anti-reflective screen surface will capture the attention of the audience while allowing for clear visibility in normal ambient light conditions
• Future proof modular expansion options including the ability to integrate Open Pluggable Specification (OPS) or a Raspberry Pi Compute Modules seamlessly into the display
• SpectraView Engine allows for complete color, intensity, gamma or uniformity control for the ultimate imaging performance
• Integrated Media Player allows for audio, video or image playback via USB or SD card that is also upgradeable via LAN
• Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for hassle-free 24/7 operation
• Full 5 year commercial warranty to allow for peace of mind and protection of this investment

NEC P-Series Display Features

  • Raspberry Pi Compute Module Compatible
  • SpectraView Engine Color Control (Including Uniformity Adjustment)
  • Out-of-box Uniformity Calibration
  • Integrated Temperature Sensors and Cooling Fans
  • On-Screen Key Guide
  • Ethernet Control and Communication
  • RS-232 Control and Communication
  • Landscape/Portrait/Face Up/Face Down Capable
  • Image Flip
  • TileMatrix (10 x 10)
  • Carbon footprint meter
  • 24/7 Scheduler with Real Time Clock
  • Holiday Settings
  • Screen saver function
  • Multi-Picture Mode
  • 25% haze panel
  • Ambient light sensor (AmbiBright)
  • Screen saver function
  • Optional human sensor
  • Intelligent Wireless Data (Near Field Communications)
  • Metal rear cabinet
  • Variable picture modes
  • Advanced video settings (Noise Reduction, Adaptive Contrast)
  • Input labeling
  • Backlight adjust
  • Aspect ratio control
  • Built-in 10W x 2 speakers
  • LED edge-lit backlighting
  • NaViSet Administrator Compatible
  • Auto ID/IP Address Control
  • Crestron RoomView Support
  • AMX Beacon
  • PJLInk Support
  • 10-bit color over HDMI
  • OPS/Expansion slot

Key Features

  • Raspberry Pi Compute Module Compatible
  • SpectraView Engine Color Control (Including Uniformity Adjustment)
  • Out-of-box Uniformity Calibration
  • Integrated Temperature Sensors and Cooling Fans
  • On-Screen Key Guide
  • Ethernet Control and Communication

What's in the box:

  • 55 " P-Series LCD Commerical-Grade Display
  • 3m Power Cord
  • 1.8m DVI-D Cable
  • Wireless Remote Control
  • Batteries
  • CD-ROM (User Manual)
  • SD Card Cover Slot
  • Screws
  • NEC 5 Year Limited Warranty
