NEC 30" Widescreen LED Backlit LCD Color Accurate Desktop Monitor, 16:10 Aspect Ratio, 340cd/m2 Brightness, 1000:1 Contrast Ratio, 2560x1600, Black

SKU: NCPA302WBK

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2017-12-06T03:31:24

Rated 4 out of 5

Perfect for Lightroom/Photoshop workflow

This monitor replaced my trusty Apple Thunderbolt Display, and far exceeded expectations. The expanded onscreen controls, superior color, and the additional pixels from the 2560 x 1600 size make it an ideal monitor for Lightroom/Photoshop workflow. I was happy to discover it is compatible with the i1 calibration tools. The only cons for me were losing the speakers, camera, and Apple-specific ports, but this monitor's purpose is accurate color, and it excels at that.

Michael S.

NEC PA302W Specifications

  • Panel Technology

    IPS

  • Viewable Image Size

    29.8"

  • Aspect Ratio

    16:10

  • Native Resolution

    2560 x 1600

  • Pixel Pitch

    0.25mm

  • Pixels Per Inch

    101 at native resolution

  • Backlight Type

    GB-R LED

  • PWM Frequency

    49 KHz

  • Brightness (typical)

    340cd/m2

  • Contrast Ratio (typical)

    1000:1

  • Viewing Angle (typical)

    178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) at CR>10

  • Response Time (typical)

    6ms

  • Color Gamut

    Adobe RGB Coverage/Size: 99.3% / 108.6%
    NTSC Coverage/Size: 94.8% / 103.7%
    sRGB Coverage/Size
    146.4% / 100%

  • Lookup Table

    14-bit (3D)

  • Displayable Colors

    1.07 billion out of 4.3 trillion

  • Horizontal (Analog/Digital)

    31.5-98.7 kHz (Digital only)

  • Vertical

    50-85 Hz

  • Input Connectors

    DisplayPort, Mini DisplayPort, HDMI, DVI-D Dual Link, USB hub (2 up/ 3 down) with DisplaySync Pro

  • Power Consumption (typical)

    On: 87W
    Power Savings Mode: 1.4W

  • Operating Temperature

    41-95deg.F / 5-35deg.C

  • Operating Humidity

    20-80%

  • Operating Altitude

    16,404 ft. / 5000m

  • Storage Temperature

    14-140deg.F / -10-60deg.C

  • Storage Humidity

    10-85%

  • Storage Altitude

    40,000 ft. / 12,192m

  • VESA Hole Configuration

    100 x 100mm, 200 x 100mm

  • Dimensions (W x H x D)

    With Stand: 27.1 x 18.4-24.3 x 11.9" (688.3 x 466.4-617.2 x 302.3mm)
    Without Stand: 27.1 x 17.6 x 3.2" (688.3 x 447.0 x 81.3mm)

  • Weight

    With Stand: 37.5lbs (17.0kg)
    Without Stand: 23.6lbs (10.7kg)

  • UPC Code

    805736048131

7 Accessories for NEC 30" Widescreen LED Backlit LCD Color Accurate Desktop Monitor, 16:10 Aspect Ratio, 340cd/m2 Brightness, 1000:1 Contrast Ratio, 2560x1600, Black

  • All Accessories (7)
  • Cables & Adapters (7)

About NEC PA302W

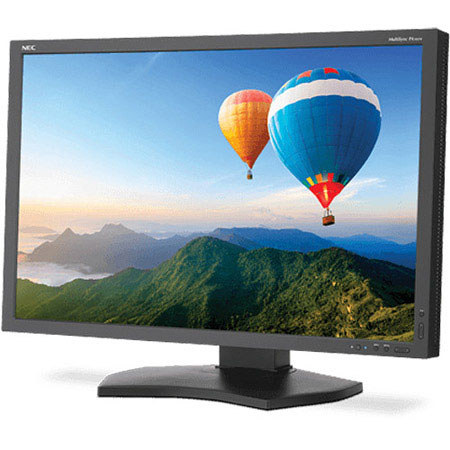

The NEC 30" Widescreen LED Backlit LCD Color Accurate Desktop Monitor provides some of the most accurate color representations available with 99.3% coverage of the AdobeRGB color space. Along with enhanced color accuracy, you also benefit from reduced power consumption through the integrated GB-R LED backlight. The display supports a 2560x1600 resolution, a 1,000:1 contrast ratio, 340cd/m2 brightness rating and 1.07 billion displayable colors.

This color accurate monitor comes equipped with DisplayPort, Mini DisplayPort, HDMI and Dual Link DVI-D display input connectors allowing you to set up this monitor for use in a variety of PC configurations. Along with display input connectors, you also benefit from an integrated USB hub consisting of 2 upstream and 3 downstream ports complete with DisplaySync Pro allowing you to control two computers simultaneously. Mount the VESA compatible monitor to the wall or utilize the included stand and take advantage of the enhanced 178deg. horizontal and vertical viewing angles.

NEC PA302W Features

  • GB-R LED backlight consumes 44% less power than a comparable CCFL backlight
  • 99.3% coverage of AdobeRGB color space
  • Superior screen performance (1000:1 contrast ratio, 2560x1600 native resolution, 340cd/m2 brightness)
  • 14-bit 3D internal programmable lookup tables (LUTs) for calibration
  • Five completely customizable picture modes
  • MultiProfiler software provides complete control over the five picture modes, including the loading of any ICC profile directly into the monitor for optimal color space matching
  • DisplaySync Pro controls two computers with only one keyboard and mouse
  • Wide connectivity includes both regular and Mini DisplayPort with 10-bit support, 10-bit HDMI, a DVI-D input as well as a USB hub
  • DisplayPort cable compatibility notice
  • NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations

Key Features

  • Superior screen performance
  • NaViSet Administrator 2

What's in the box:

  • NEC 30" Widescreen LED Backlit LCD Color Accurate Desktop Monitor
  • Power Cable
  • Mini DisplayPort to DisplayPort Cable
  • DVI Cable
  • USB Cable
  • Mounting Screws
  • NEC 4 Years Parts & Labor Limited Warranty
