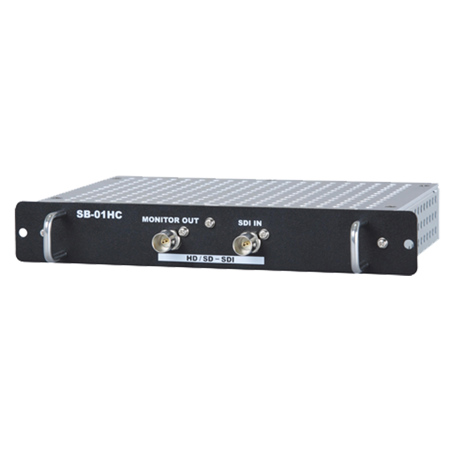

NEC SB-01HC Internal HD-SD/SDI Input Card for Large Screen LCD Displays and Installation Projectors, HD/SD-SDI Input & Loop Output

SKU: NCSB01HC MFR: SB-01HC
Earn VIP Reward Points

Key Features

  • Enhance your display with HD-SDI input using this NEC internal component card.
  • Enjoy seamless video processing with 24-bit, 4:4:4 color for superior image clarity.
  • Loop output feature ensures active, equalized, and reclocked HD-SDI signal for displays.
  • Extract digital audio via a stereo channel from your SD/HD-SDI sources easily.
  • Wide compatibility: Works with NEC large screen LCD displays & installation projectors.
  • Supports multiple HD-SDI formats, ensuring versatile connectivity for various setups.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

NEC SB-01HC Specifications

  • Compatibility

    Displays: NEC V422, V462, V551, V651, P402, P462, X461S, X551S, X551UN
    Projectors: PX750U, PH1000U

  • Video Input

    1x BNC: SD-SDI (SMPTE 272M @ 270 Mb/s) or HD-SDI (SMPTE 299M @ 1.485 Gb/s)

  • Video Processing

    24-bit, 4:4:4

  • Video Output

    1x BNC: HD-SDI (active looping signal, equalized & reclocked)

  • Digital Audio Extraction

    1x stereo channel for SD/HD-SDI

  • Sample Rate (Audio)

    32 kHz, 44.1 kHz, 48 kHz

  • Input & Output Signal

    480i SD-SDI @ 60 Hz Input: 1440 x 480 interlace DVI-D or HDMI output @ 60Hz
    576i SD-SDI @ 50 Hz Input: 1440 x 576 DVI-D or HDMI output @ 50Hz
    720p HD-SDI @ 24/25/30/50/60 Hz Input: 720-line progressive DVI-D or HDMI output @ same frame rate as input
    1080p HD-SDI @ 24/25/30 Hz or 24 PsF Input: 1080-line progressive DVI-D or HDMI output @ same frame rate as input

  • Operating Temperature

    41 - 95deg.F / 5 - 35deg.C

  • Humidity

    10% - 80%

  • Storage Temperature

    32 - 140deg.F / 0 - 60deg.C

  • Regulatory Approvals

    USA: FCC Part15 Class B, Canada: ICES-003 Class B

  • Dimensions (W x H x D)

    7.9 x 5.7 x 1.2 in. / 200 x 144.7 x 30.48 mm

  • Weight

    0.75 lbs. / 0.34 kg

  • UPC Code

    805736038989

About NEC SB-01HC

The NEC SB-01HC Internal HD/SD-SDI Option Card adds an SD-SDI or HD-SDI input plus loop output for several of NEC's large-screen displays and installation projectors. With loop output, the SDI signal can be shared with another display so they can be daisy-chained.

With SDI input, suddenly your NEC flat-screen display or projector is compatible with high-end video sources such as decks and digital cinema recorders, for applications such as client approval and digital dailies.

The SB-01HC follows the Open Pluggable Specification (OPS) for easier installation. The option card is compatible with NEC's V422, V462, V551, V651, P402, P462, x461S, x551S & x551UN large-screen displays and NEC's PX750U & PH1000U installation projectors.

Key Features

  • Enhance your display with HD-SDI input using this NEC internal component card.
  • Enjoy seamless video processing with 24-bit, 4:4:4 color for superior image clarity.
  • Loop output feature ensures active, equalized, and reclocked HD-SDI signal for displays.
  • Extract digital audio via a stereo channel from your SD/HD-SDI sources easily.
  • Wide compatibility: Works with NEC large screen LCD displays & installation projectors.
  • Supports multiple HD-SDI formats, ensuring versatile connectivity for various setups.

What's in the box:

  • NEC SB-01HC Internal HD-SDI Input Card
  • Installation Guide
  • Ferrite Core x2
  • NEC 3 Year Parts and Labor Limited Warranty
