Just Reduced

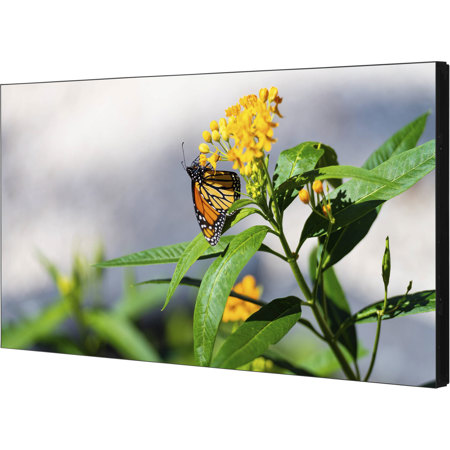

NEC UN492S-TMX9P 49" Ultra Narrow Bezel S-IPS Full HD LED-Backlit 3x3 Video Wall Bundle, 500/700 cd/sq.m

SKU: NCU492STMX9P MFR: UN492S-TMX9P
Earn VIP Reward Points

Key Features

  • Create a stunning 3x3 video wall with nine 49" NEC commercial displays.
  • Experience vibrant Full HD resolution and superior image quality on each monitor.
  • Enjoy seamless visuals with ultra-narrow bezels for immersive presentations.
  • Benefit from reliable performance with S-IPS panel technology and LED backlighting.
  • Easily connect various devices using multiple HDMI and DisplayPort inputs.
  • Ideal for command centers, digital signage, and collaborative workspaces with this bundle.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

NEC UN492S-TMX9P Specifications

Display

Display

Jump to...
  • Panel Technology

    S-IPS

  • Viewable Image Size

    147" (373.3cm)

  • Aspect Ratio

    16:9

  • Native Resolution

    1920 x 1080

  • Pixel Pitch

    0.5mm

  • Pixels Per Inch

    45 @ native resolution

  • Backlight Type

    LED Direct-lit

  • Brightness

    500 cd/sq. m (typical)
    700 cd/sq. m (maximum)

  • Contrast Ratio (typical)

    1100:1

  • Viewing Angle (typical)

    178 Degree Vert., 178 Degree Hor. (89U/89D/89L/89R) @ CR>10

  • Response Time (Gray to Gray)

    8ms

  • Refresh Rate

    60Hz

  • Active Screen Area

    40.1 x 22.5" (1018.1 x 572.7mm)

  • Orientation

    Landscape/Portrait

  • Displayable Colors

    More than 1.07 billion

Synchronization Range

Jump to...
  • Horizontal (Analog/Digital)

    Analog: 15.625/15.734/Approx. 31.5-Approx. 91.1 kHz, Digital: Approx. 25.0 - Approx. 91.1-Approx. 134.0KHz

Input Signal

Jump to...
  • Video

    Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS / DisplayPort

  • Sync

    Separate sync: TTL Level (Positive/Negative)
    Composite sync: TTL Level (Positive/Negative)
    Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Calibration

Jump to...
  • Factory Calibration

    RGB, White Point, Intensity, Gamma, Uniformity

  • Sensor Calibration (through USB)

    PC-less calibration with USB Sensor MDSVSENSOR3, White Copy available post self-calibration

  • Calibration with Software

    RGB, White Point, Intensity, Gamma, Corner Uniformity, Update Uniformity Correction, Update Factory Calibration

  • Calibration Software

    NEC Display Wall Calibrator

Signal Compatibility/Connectivity

Jump to...
  • PC Signal Compatibility

    Yes

  • Macintosh Signal Compatibility

    Yes

  • Video

    Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS / DisplayPort

  • Sync

    Separate sync: TTL Level (Positive/Negative)
    Composite sync: TTL Level (Positive/Negative)
    Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

  • Input Terminals

    Analog: VGA 15-pin D-sub
    Digital: DisplayPort 1.1/1.2 x2, HDMI 1.4/2.0 x2, DVI-D
    Audio: Audio Mini-Jack x2, DisplayPort Audio, HDMI Audio
    External Control: RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote)
    Data: microSD (Media Player), USB 2.0 (Media Player, USB (Service), USB Type-B (Upstream), USB x 2 (Both for Compute Module, 1 x 5V/2A Powered)

  • Output Terminals

    Digital: DisplayPort (Output DisplayPort1 and OPTION (DP)), HDMI (Outputs HDMI1, DVI and OPTION (TMDS))
    Audio: 3.5mm Mini-Jack, External Speaker Jack (2)
    External Control: LAN (100Mb)

Power Consumption (typical)

Jump to...
  • On

    120W (per single monitor)

  • ECO Mode Standby

    <0.5W

  • Power Consumption (max)

    1485W (Brightness Max), 2880W (All Functions Maxed)

  • Input Current

    3.6A @ 100V, 1.5A @ 240V

Environmental Conditions

Jump to...
  • Temperature

    Operating: 41-104 Degree F (5-40 Degree C)
    Storage: -4-140 Degree F (-20-60 Degree C)

  • Humidity

    Operating: 20-80%
    Storage: 10-90%

  • Altitude

    Operating: 9843' (3000m)
    Storage: 40,000' (12,192m)

Accessories

Jump to...
  • Optional

    Display Wall Calibrator Kit (KT-LFD-CC2)
    Human/IR Sensor Accessory (KT-RC3)
    Table Top Stand (ST-322)
    Overframe Bezel Kit (KT-49UN-OF)

Physical

Jump to...
  • Bezel Width

    0.04" (0.9mm)/0.04" (0.9mm), 0.04" (0.9mm)/0.04" (0.9mm) (Left/Right, Top/Bottom)

  • VESA Hole Configuration

    300 x 300mm (4-hole, M6)

  • Dimensions (W x H x D)

    Without Stand: 84.8 x 47.8 x 4.1" (3227.7 x 1817.7 x 99mm)

  • Weight

    With Stand): 75 lbs (34kg)

  • UPC Code

    805736071436

About NEC UN492S-TMX9P

Where high-tech meets sleek design, the NEC UN492S-TMX9P 49" Ultra Narrow Bezel S-IPS Full HD LED-Backlit 3x3 Video Wall Bundle stands out. This all-in-one, easy-to-configure solution is perfect for dynamic digital signage, information display, and command & control applications. It's not just a video wall; it's a complete visual experience that captivates audiences with its 147" display and 1080 Full HD resolution.

The modern and innovative design of the NEC UN492S, combined with the full adjustment capabilities of the Peerless DS-VW775 mount, makes this video wall bundle a game-changer. The ultra-narrow bezel design and exclusive TileMatrix, TileComp, and TileCut technologies ensure a near-seamless video wall without the need for additional third-party equipment.

This 3x3 video wall bundle is not only easy to configure and install, but it also offers full-service capabilities and 6-axis adjustment for perfect alignment. The SpectraView Engine exclusive color processing delivers an unparalleled level of color control, uniformity, accuracy, and stability, making your images come alive.

With a panel brightness of 700cd/sq. m, this stylish video wall bundle is designed to capture the attention of your audience. Its industrial-strength, premium-grade panel features additional thermal protection, internal temperature sensors with self-diagnostics, and fan-based technology, allowing for 24/7 operation.

The HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution, providing a high level of detail and clarity in its images. The new TileCut function added to the TileMatrix functionality allows for ultimate adjustment of the imagery in the wall.

For consistency from display to display, this video wall bundle offers uniformity calibration of each display for gamma, intensity, and RGB. It is compatible with NEC Display Wall Calibrator, MultiProfiler, SpectraViewII, and NaViSet Administrator 2 software, ensuring you have all the tools you need for a perfect display.

NEC UN492S-TMX9P Features

  • Advanced thermal capabilities
  • Ethernet Control and Communication
  • RS-232 Control and Communication
  • Landscape/portrait capable
  • Carbon footprint meter
  • SpectraView Engine Capabilities
  • Scheduler (w/ Real-Time Clock and Holiday mode)
  • Self Calibration to external color sensor
  • White Copy Function
  • Screen saver function
  • 4K UHD Daisy Chain capabilities
  • Optional human sensor
  • Intelligent Wireless Data (Near Field Communications)
  • Raspberry Pi Compute Module Slot
  • Expanded daisy chain (DP 1.2/HDMI 2.0)
  • 6-axis color adjustment
  • Metal rear cabinet
  • Handles
  • Variable picture modes
  • Advanced video settings (Noise Reduction, Adaptive Contrast)
  • Input labeling
  • Backlight adjust
  • Frame Comp Capabilities
  • Internal Media Player via microSD or USB
  • HDR Emulation
  • Aspect ratio control
  • LED direct-lit backlighting
  • OPS/Expansion slot

Key Features

  • Create a stunning 3x3 video wall with nine 49" NEC commercial displays.
  • Experience vibrant Full HD resolution and superior image quality on each monitor.
  • Enjoy seamless visuals with ultra-narrow bezels for immersive presentations.
  • Benefit from reliable performance with S-IPS panel technology and LED backlighting.
  • Easily connect various devices using multiple HDMI and DisplayPort inputs.
  • Ideal for command centers, digital signage, and collaborative workspaces with this bundle.

What's in the box:

  • 9x UN492S 49 " Ultra Narrow Bezel S-IPS Full HD LED-Backlit Display
  • 9x Pull-Out Mount
  • 9x Power Cord (9.8')
  • 9x DisplayPort Cable (6.5')
  • 9x HDMI Cable (6.5')
  • 9x LAN Cable
  • 9x SD Card Cover
  • Long LAN Cable
  • 9x Clamp
  • NEC 3 Year Limited Warranty
