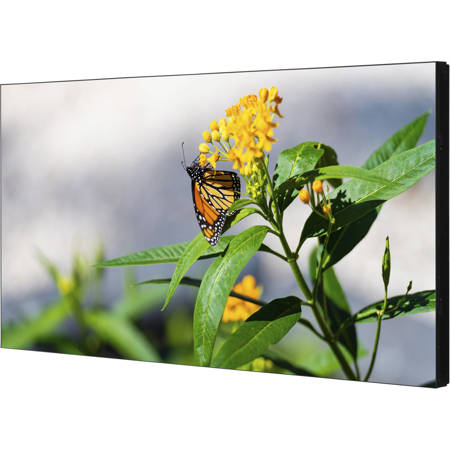

NEC UN492S 49" S-IPS Full HD Ultra-Narrow Bezel Professional-Grade Video Wall LED Display, 1920x1080, 700 cd/m2 Max Brightness

SKU: NCUN492S MFR: UN492S
Earn VIP Reward Points

Key Features

  • Create stunning video walls with this 49" NEC professional display.
  • Enjoy vivid imagery with the S-IPS panel, offering superior image quality.
  • Experience seamless visuals with ultra-narrow bezel design for video walls.
  • This reliable commercial monitor is perfect for digital signage solutions.
  • Benefit from versatile connectivity with HDMI and DisplayPort inputs.
  • Ensure long-lasting performance with NEC's 3-year parts and labor warranty.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

NEC UN492S Specifications

Display

Display

Jump to...
  • Panel Technology

    S-IPS

  • Aspect Ratio

    16:9

  • Pixel Pitch

    0.5mm

  • Backlight Type

    LED Direct-lit

  • Contrast Ratio (typical)

    1100:1

  • Response Time (Gray to Gray)

    8 ms

  • Active Screen Area

    40.1 x 22.5" (1018.1 x 572.7mm)

  • Displayable Colors

    More than 1.07 billion

  • Viewable Image Size

    49"

  • Native Resolution

    1920x1080

  • Pixels Per Inch

    45 at native resolution

  • Brightness (maximum)

    700 cd/m2

  • Viewing Angle (typical)

    178 deg. Vertical, 178 deg. Horizontal (89U/89D/89L/89R) at CR>10

  • Refresh Rate

    60Hz

  • Orientation

    Landscape/Portrait

Synchronization Range

Jump to...
  • Horizontal (Analog/Digital)

    Analog: 15.625/15.734/31.5 - 91.1 kHz (Approx.)
    Digital: 25.0 - 91.1-134.0KHz (Approx.)

Input Signal

Jump to...
  • Video

    Analog RGB 0.7 Vp-p/75 Ohms, Digital TMDS / DisplayPort

  • Sync

    Separate sync: TTL Level (Positive/Negative)
    Composite sync: TTL Level (Positive/Negative)
    Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Signal Compatibility/Connectivity

Jump to...
  • PC Signal Compatibility

    Yes

  • Video

    Analog RGB 0.7 Vp-p/75 Ohms, Digital TMDS / DisplayPort

  • Macintosh Signal Compatibility

    Yes

  • Sync

    Separate sync: TTL Level (Positive/Negative)
    Composite sync: TTL Level (Positive/Negative)
    Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

  • Input Terminals

    Digital: DisplayPort 1.1/1.2 x2, HDMI 1.4/2.0 x2, DVI-D
    Audio: Audio Mini-Jack x2, DisplayPort Audio, HDMI Audio
    External Control: RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote)

  • Output Terminals

    Digital: DisplayPort (Output DisplayPort1 and OPTION (DP)), HDMI (Outputs HDMI1, DVI and OPTION (TMDS))
    Audio: 3.5mm Mini-Jack, External Speaker Jack (2)
    External Control: LAN (100Mb)

Power Consumption (Typical)

Jump to...
  • On

    120W

  • Power Consumption (max)

    165W (Brightness Max), 320W (All Functions Maxed)

  • ECO Mode Standby

    <0.5W

  • Input Current

    3.6A at 100V, 1.5A at 240V

Environmental Conditions

Jump to...
  • Operating Temperature

    41 to 104 deg. F (5 to 40 deg. C)

  • Operating Altitude

    9843' (3000m)

  • Storage Humidity

    10-90%

  • Operating Humidity

    20-80%

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Storage Altitude

    40,000' (12,192m)

General

Jump to...
  • Bezel Width (Left/Right, Top/Bottom)

    0.035" / 0.035", 0.035" / 0.035" (0.9mm / 0.9mm, 0.9mm / 0.9mm)

  • VESA Hole Configuration

    300 x 300mm (4-hole, M6)

  • Dimensions (WxHxD)

    Without Stand: 42.4 x 23.9 x 4.1" (107.70 x 60.71 x 10.41cm)

  • Weight

    With Stand: 75 lbs (34.02kg)

  • UPC Code

    805736067415

About NEC UN492S

With the NEC UN492S 49" S-IPS Full HD Ultra-Narrow Bezel Professional-Grade Video Wall LED Display, you can experience superior color reproduction in high-definition video wall environments. This professional-grade display features Direct LED backlighting and factory calibration for intensity, gamma, and RGB, ensuring optimal panel uniformity and a seamless out-of-the-box experience.

Integrated with NEC's proprietary SpectraView Engine, this display offers ultimate color control and enhanced color calibration capabilities. These include white copy, self-calibration to an external sensor, and manual CIE chromaticity adjustment, providing maximum control when color accuracy is paramount.

The UN492S is equipped with both DisplayPort and HDMI Out connections, enabling daisy chaining signals up to 4K UHD. This latest generation display boasts a full chassis upgrade, a 1.8mm bezel gap, faster processing times, improved daisy chain performance, and new TileMatrixing capabilities.

Additional features include advanced thermal capabilities, Ethernet and RS-232 Control and Communication, landscape/portrait capability, a carbon footprint meter, and a scheduler with Real-Time Clock and Holiday mode. The display also offers a self-calibration feature to an external color sensor, a white copy function, a screen saver function, and 4K UHD Daisy Chain capabilities.

Optional features include a human sensor, Intelligent Wireless Data (Near Field Communications), a Raspberry Pi Compute Module Slot, expanded daisy chain (DP 1.2/HDMI 2.0), 6-axis color adjustment, a metal rear cabinet, handles, variable picture modes, advanced video settings (Noise Reduction, Adaptive Contrast), input labeling, backlight adjust, Frame Comp Capabilities, an internal media player via microSD or USB, HDR Emulation, aspect ratio control, LED direct-lit backlighting, and an OPS/Expansion slot.

Experience the high-resolution, professional-grade quality of the NEC UN492S 49" S-IPS Full HD Ultra-Narrow Bezel Professional-Grade Video Wall LED Display, designed for use in professional settings where image and video clarity matter most.

NEC UN492S Features

  • SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability
  • 700cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience
  • Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
  • HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution
  • New TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall
  • Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display
  • NEC Display Wall Calibrator, MultiProfiler, SpectraViewII and NaViSet Administrator 2 software compatible

Key Features

  • Create stunning video walls with this 49" NEC professional display.
  • Enjoy vivid imagery with the S-IPS panel, offering superior image quality.
  • Experience seamless visuals with ultra-narrow bezel design for video walls.
  • This reliable commercial monitor is perfect for digital signage solutions.
  • Benefit from versatile connectivity with HDMI and DisplayPort inputs.
  • Ensure long-lasting performance with NEC's 3-year parts and labor warranty.

What's in the box:

  • NEC UN492S 49 " S-IPS Full HD Ultra-Narrow Bezel Professional-Grade Video Wall LED Display
  • 3.0m Power Cord
  • 2.0m DisplayPort Cable
  • 2.0m HDMI Cable
  • LAN Cable
  • SD Card Cover
  • Clamp for Power Cable
  • Setup Manual
  • Contents Sheet
  • NEC 3 Year Parts and Labor Limited Warranty
