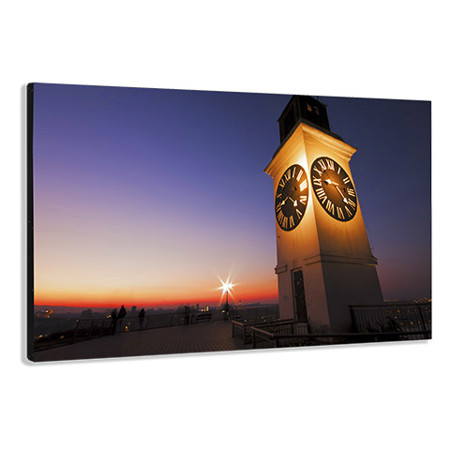

NEC UN551VS 55" Ultra-Narrow Bezel 400 Nits S-IPS LED Direct-lit Video Wall Display, 1920x1080

SKU: NCUN551VS

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

NEC UN551VS Specifications

  • Panel Technology

    S-IPS (P-DID)

  • Viewable Image Size

    55"

  • Native Resolution

    1920 x 1080

  • Pixel Pitch

    0.63mm

  • Backlight Type

    LED Direct-lit

  • Pixels Per Inch

    47 at native resolution

  • Brightness (typical)

    400cd/m2

  • Brightness (maximum)

    500cd/m2

  • Contrast Ratio (typical)

    1200:1 (500,000:1 Dynamic)

  • Viewing Angle

    178 deg. Vertical 178 deg. Horizontal (89U/89D/89L/89R) at CR>10

  • Response Time(Gray to Gray)

    8ms

  • Refresh Rate

    60Hz

  • Aspect Ratio

    16:9

  • Active Screen Area

    1209.6 x 680.4mm (47.62 x 26.79")

  • Orientation

    Landscape/Portrait

  • Displayable Colors

    More than 1.07 Billion

  • Horizontal (Analog/Digital)

    15.625 / 15.734 / 31.5-91.1kHz

  • Vertical

    50.0-85.0 Hz (Analog), 24.0 - 85.0Hz (Digital)

  • Input Signal: Video

    Analog RGB 0.7 Vp-p/75Ohms (Analog), TMDS (Digital)

  • Input Signal: Sync

    Separate sync: TTL Level (Positive/Negative)
    Composite Sync on Green: (0.3Vp-p negative)

  • PC Signal Compatibility

    Yes

  • Macintosh Compatibility

    Yes

  • Input Terminal: Digital

    DisplayPort, HDMI, DVI-D

  • Input Terminal: Analog

    VGA 15-pin D-sub

  • Input Terminal: Audio

    Audio Mini-Jack, DisplayPort Audio, HDMI Audio

  • Input Terminal: External Control

    RS-232C, LAN, DDC/CI

  • Output Terminal: Audio

    Audio Mini-Jack, External Speaker Jack (2), HDMI Audio (through DP Out), DisplayPort Audio

  • Output Terminal: Digital

    DisplayPort (DisplayPort, HDMI, DVI-D or Option Signals out of this port)

  • Output Terminal: External Control

    LAN

  • Power Consumption: On

    140W (typical)

  • Power Consumption: ECO Mode Standby

    <0.5W (typical)

  • Input Current

    4.4A at 100-120V / 1.6A at 220-240V

  • Bezel Width (Left/Right, Top/Bottom)

    0.9mm inactive border along all sides of display

  • VESA Hole Configuration

    400 x 400mm (4-hole)

  • Operating Temperature

    41 to 104 deg. F (5 to 40 deg. C)

  • Operating Humidity

    20-80%

  • Operating Altitude

    13780' (4200.20m)

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Storage Humidity

    10-90%

  • Storage Altitude

    40000' (12192.15m)

  • Additional Functions

    S-IPS Panel Technology
    Direct LED Backlighting
    Advanced thermal capabilities
    UHD Daisy Chain Capabilities up to 100 displays
    10-bit color panel
    Ethernet Control and Communication
    RS-232 Control and Communication
    Landscape/portrait capable
    Carbon footprint meter
    Plug and Play (DDC/CI, DDC2B)
    Scheduler (with real-time clock)
    Screen saver function
    Ambient light sensor
    Screen saver function
    Optional human sensor

  • Additional Functions (Cont.)

    Intelligent Wireless Data (Near Field Communications)
    OPS Expansion Slot
    Interface Expansion Slot
    6-axis color adjustment
    Metal rear cabinet
    POP
    Side-by-Side
    Handles
    Variable picture modes
    Advanced video settings (Noise Reduction, Adaptive Contrast)
    Input labeling
    Backlight adjust
    Aspect ratio control
    10-bit color over HDMI

  • Dimensions (WxHxD)

    With Stand: 47.7 x 28.6 x 15.7" (121.16 x 72.64 x 39.88cm)
    Without Stand: 47.7 x 26.9 x 3.9" (121.16 x 68.33 x 9.91cm)

  • Weight

    With Stand: 60.4 lbs (27.40kg)
    Without Stand: 57.3 lbs (25.99kg)

About NEC UN551VS

The 55" NEC UN551VS utilizes S-IPS panel technology to provide a superior signage solution for building video walls. With excellent off-angle viewing and far less color shift than traditional video wall panels, this display is ideal for broadcast, retail and command and control applications. On top of that, these displays are designed for the rigors of 24/7 operation with advanced heat management capabilities in which internal temperature sensors automatically activate fan-based cooling if excess heat builds up within the unit.

Other advanced technologies of this model include direct LED backlighting with localized dimming for improved brightness uniformity and higher dynamic contrast ratio. These displays are also capable of daisy-chaining UHD (3840 x 2160) resolution so that the entire video wall can be 4x that of FHD regardless of the size of the wall. With these features, an even smaller area between neighboring displays and commercial brightness of 500 nits, this display clearly showcases NEC's vast experience in the video wall market.

NEC UN551VS Features

  • S-IPS panel technology allows for excellent off-angle viewing and less color shift compared to other technologies
  • A mere 0.9mm inactive border allows for an even more homogenous image across the entire wall
  • Auto ID feature reduces install time in the single press of a button
  • Expanded daisy chain options with UHD pass-through via DisplayPort enables UHD resolution across the entire wall
  • OPS slot technology allows for the integration of single board computers and interface expansion slot allows for legacy equipment connectivity
  • 500cd/m2 max brightness combined with full HD resolution will capture the attention of the audience
  • Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for 24/7 operation
  • Input Switching Speed Minimizes downtime between source transitions
  • Human Sensor Accessory ensures digital signage is directed at a targeted audience
  • Near field communication capabilities for setup and service
  • NaViSet Administrator 2: Free software solution that greatly eased administration and management of larger display device installations
  • Video daisy chain limitations apply when High-bandwidth Digital Content Protection (HDCP) is utilized

What's in the box:

  • NEC UN551VS 55" Ultra-Narrow Bezel 400 Nits S-IPS LCD Video Wall Display
  • Power Cord
  • 3m DP Cable
  • LAN Cable
  • CD-ROM (User Manual)
  • Screws
  • Thumbscrews
  • 3x Clamp
  • 3x Screw with Washer (M4 x 10)
  • Screw with Washer (M3 x 10)
  • 4x Spacer
  • 4x Pin
  • NEC 3 Year Parts/Labor & Backlight Limited Warranty
