Just Reduced

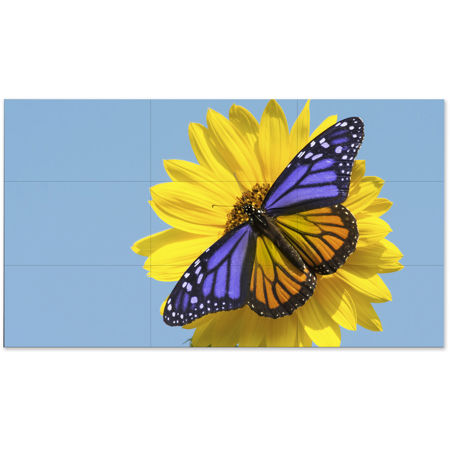

NEC MultiSync UN552V 55" 16:9 Full HD S-IPS Ultra Narrow Bezel Video Wall LCD LED Display with Direct LED Backlights, 3.5mm Bezel Gap HDMI/DP Daisy Chain, SpectraView Engine

SKU: NCUN552V MFR: UN552V
Earn VIP Reward Points

Key Features

  • Create stunning video walls with the NEC UN552V's ultra-narrow 3.5mm bezel.
  • Experience vibrant visuals on this 55" commercial monitor with Full HD resolution.
  • Enjoy consistent color with the S-IPS panel, perfect for critical viewing applications.
  • Rely on 24/7 operation for digital signage, presentations, and information displays.
  • Connect multiple devices via HDMI, DisplayPort, and other versatile connectivity options.
  • Manage displays remotely with LAN control and automated email alerts for efficient use.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

NEC MultiSync UN552V Specifications

Display

Display

Jump to...
  • Panel Technology

    S-IPS with Direct LED backlights

  • Active Screen Area (W x H)

    47.6 x 26.7" (1209.6 x 680.3mm)

  • Screen Size

    55" (138.8mm)

  • Aspect Ratio

    16:9

  • Pixel Pitch

    0.630mm

  • Brightness

    500 cd/sq m

  • Contrast Ratio (typ.)

    >1700:1

  • Viewing Angle

    178 / 178 Degree (at contrast ratio > 10:1)

  • Response Time (typ.)

    8ms (gray-to-gray)

  • Panel Refresh Rate

    60Hz

  • Haze Level

    Pro (28%)

  • Supported Orientation

    Landscape; Portrait

Synchronisation Rate

Jump to...
  • Horizontal Frequency

    26 - 134kHz

  • Vertical Frequency

    23 - 86Hz

Resolution

Jump to...
  • Native Resolution

    1920 x 1080

  • Supported on DisplayPort and HDMI

    3840 x 2160;
    1920 x 1080;
    1600 x 1200;
    1360 x 768;
    1280 x 1024;
    1280 x 768;
    1080i;
    1080p;
    1024 x 768;
    800 x 600;
    720p (50/60 Hz);
    640 x 480

  • Supported on HDMI only

    4096 x 2160

Connectivity

Jump to...
  • Input Video Analogue

    1x VGA; Composite (RCA)

  • Input Video Digital

    1x DVI-D (with HDCP); 1x OPS Slot; 2x DisplayPort (with HDCP); 2x HDMI 1.3 (with HDCP)

  • Input Audio Analogue

    2x 3.5mm jack

  • Input Audio Digital

    2x DisplayPort; 2x HDMI

  • Input Control

    1x Remote Control (3.5mm jack); 1x RS232; 2x LAN 100Mbit

  • Input Data

    1x microSD (MediaPlayer); 1x USB 1.0 (Downstream); 1x USB 1.0 (MediaPlayer); 1x USB 2.0 (Upstream); 2x USB 1.0 (Compute Module, 1x 5V/2A powered)

  • Output Video Digital

    1x DisplayPort (loop through: DisplayPort, OPS slot-in PC); 1x HDMI (loop through: HDMI, OPS slot-in PC, Mediaplayer)

  • Output Audio Analogue

    1x 3.5mm jack

  • Output Control

    LAN 100Mbit

Calibration

Jump to...
  • Factory Calibration

    Gamma; Intensity; RGB; Uniformity; White Point

  • Sensor Calibration (through USB)

    PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration)

  • Calibration with Software

    Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; Update Uniformity Correction; White Point

  • Calibration Software

    NEC Display Wall Calibrator

Open Modular Intelligence

Jump to...
  • OPS Slot

    Slot Technology: Open pluggable specification (NEC / Intel OPS standard)

  • OPS Max. Current / Power Consumption

    3.6A / 58W

  • Compute Module Slot

    Slot Technology: Compute Module Slot (NEC proprietary standard)

Sensors

Jump to...
  • Human Sensor

    Optional, external, 4-5m range, triggered actions programmable

  • NFC Sensor

    Integrated, 2cm range, free NEC Android App required

Electrical

Jump to...
  • Power Consumption Eco/max.

    110W shipping; 315 (max.)

  • Power Savings Mode

    < 0.5; < 2 (Networked Standby)

Environmental Conditions

Jump to...
  • Operating Temperature

    +0 to +35 Degree c

  • Operating Humidity

    20 to 80%

  • Storage Humidity

    10 to 90%

  • Storage Temperature

    -20 to 60 Degree C

Mechanical

Jump to...
  • Bezel Width

    1.2mm bottom/right; 2.3mm top/left; 3.5mm

  • VESA Mounting

    4 holes; 400 x 400mm (FDMI); M6

  • Dimensions (W x H x D)

    Without stand: 83.2 x 26.9 x 4" (2113.4 x 684.2 x 103.8mm)

  • Weight

    Without Stand: 56.2 lbs (25.5kg)

Mediaplayer

Jump to...
  • Supported Image Formats

    JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000

  • Supported Video Formats

    MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz

  • Supported Audio Formats

    MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling

Available Options

Jump to...
  • Accessories

    Calibration kit (KT-LFD-CC2); Feet (ST-5220); Overframe kit (KT-55UN-OF5); Remote control kit (KT-RC3); Speaker (SP-TF1); Wall mount (PD02VWM MFS 46-55 L/P; PD02VW QR 46-55 L/P; CK02XUN MFS 55 L/P)

  • Compute Module Slot

    Raspberry Pi Compute Module 1 and 3

  • OPS Slot

    Intel Atom, Celeron and Core i3, i5, i7 Slot-in PCs

Green Features

Jump to...
  • Energy Efficiency

    Annual energy consumption: 217 kWh (based on 4 operating hours per day); Carbon savings meter; Energy efficiency class: B; Human Sensor; LED backlight

Additional Features

Jump to...
  • Special Characteristics

    Auto ID assignment; Auto tiling function; Automatic Alarm E-Mails; DICOM Simulation; Frame Comp; HTTP Server; Image flip; Intelligent Wireless Data (based on NFC); NaViSet Administrator 2; TileMatrix; USB Media Player; User input priority definition; User readable log function

  • Color Versions

    Black Front Bezel, Black Back Cabinet

  • Safety and Ergonomics

    BSMI; CE; EAC; FCC; PSB; RCM; REACH; RoHS; SASO; T V GS; T V S; UL/C-UL; VCCI

  • Pixel Failure Class

    ISO 9241-307, Class 2

  • Audio

    Optional Speakers (15 W + 15 W)

  • Plug and Play

    VESA DDC/CI

  • Operating Hours

    24/7

  • UPC Code

    805736067460

About NEC MultiSync UN552V

An epitome of advanced video wall technology, the MultiSync UN552V 55" 16:9 Full HD S-IPS Ultra Narrow Bezel Video Wall LCD LED Display with Direct LED Backlights is a testament to Adorama's commitment to high-quality, reliable electronics. This stunning display module is designed with a minimal 3.5mm bezel gap, creating a vibrant, high-resolution video wall with barely visible image gaps for a seamless viewing experience.

Engineered for 24/7 operation, this display offers perfect picture quality and high product reliability, ensuring your message is delivered with clarity and precision. With a high brightness level of 500 cd/m2, this eye-catching display ensures effortless readability, even in the brightest ambient light conditions, making it an ideal choice for commercial and residential settings alike.

The MultiSync UN552V is equipped with an advanced set of intelligent features that simplify installation and operation while significantly reducing maintenance requirements. Its 55" display size is optimally designed to create expansive screen surfaces, perfect for fixed installations and for mid to longer viewing distances.

NEC's vast experience in the video wall market is reflected in the design of the MultiSync UN552V. It features a SpectraView Engine for enhanced color accuracy, and HDMI and DP inputs for versatile connectivity. Whether it's for control rooms, broadcast studios, transport installations, or the rental market, this display is designed to reduce costs, ease installation, and enhance the visual impact of your content. Experience the difference with the MultiSync UN552V 55" 16:9 Full HD S-IPS Ultra Narrow Bezel Video Wall LCD LED Display with Direct LED Backlights.

NEC MultiSync UN552V Features

  • Easy installation - effortlessly set up you wall display with Auto TileMatrix and out-of-the-box calibrations. Save time by plugging in ready-to-use image presets for predefined application scenarios
  • Enhanced imaging performance - advanced settings of all relevant visual parameters allow full control of brightness, color, gamma and uniformity via the SpectraView Engine for precise, natural images
  • Lifelike and consistent color - expect color reproduction that feels true to life with IPS panel technology, the top choice when it comes to color consistency. The S-IPS panel ensures that perfect visibility is maintained in landscape and portrait mode and at extreme viewing angles as viewers pass by
  • Secure Reliability and Longevity of Video Walls - unique NEC heat management system enables the user to monitor and control the heat inside the display
  • Cost Saving Device Management - save effort whilst managing all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool

Key Features

  • Create stunning video walls with the NEC UN552V's ultra-narrow 3.5mm bezel.
  • Experience vibrant visuals on this 55" commercial monitor with Full HD resolution.
  • Enjoy consistent color with the S-IPS panel, perfect for critical viewing applications.
  • Rely on 24/7 operation for digital signage, presentations, and information displays.
  • Connect multiple devices via HDMI, DisplayPort, and other versatile connectivity options.
  • Manage displays remotely with LAN control and automated email alerts for efficient use.

What's in the box:

  • MultiSync UN552V 55 " 16:9 60Hz Full HD S-IPS Ultra Narrow Bezel Video Wall LCD LED Display
  • DisplayPort Cable
  • HDMI Cable
  • LAN Cable (RJ45)
  • Power Cable
  • NEC 3 Year Limited Warranty
