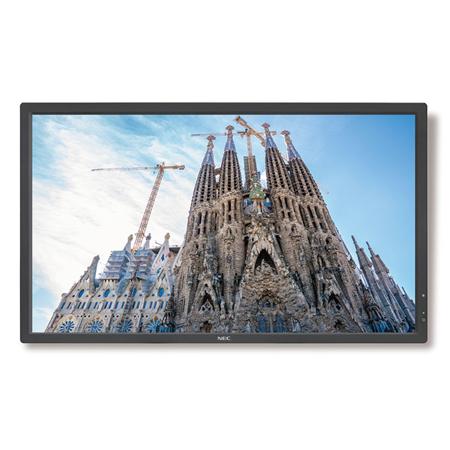

NEC V323-3 32" High-Performance LED-Backlit Commercial-Grade HD Display

SKU: NCV3233

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

NEC V323-3 Specifications

Display

Display

Jump to...
  • Panel Technology

    S-IPS

  • Viewable Image Size

    32" (81.28cm)

  • Aspect Ratio

    16:9

  • Native Resolution

    1920x1080

  • Pixel Pitch

    0.36 mm

  • Backlight Type

    LED Edge-lit

  • Brightness (typical)

    320 cd/sq. m

  • Brightness (maximum)

    450 cd/sq. m

  • Contrast Ratio (typical)

    1300:1

  • Viewing Angle (typical)

    178 Degree Vert., 178 Degree Hor. (89U/89D/89L/89R) @ CR>10

  • Refresh Rate

    60Hz

  • Active Screen Area

    27.5 x 15.5" (698.4 x 392.9mm)

  • Orientation

    Landscape/Portrait

  • Displayable Colors

    More than 16.7 million

Synchronization Range

Jump to...
  • Horizontal (Analog/Digital)

    Analog: 15.625 / 15.734 / 31.5 - 91.1 KHz, Digital: 31.5 - 91.1KHz

Input Signal

Jump to...
  • Video

    Analog RGB 0.7 Vp-p/75 Ohms
    Digital TMDS / DisplayPort

  • Sync

    Analog: Separate sync: TTL Level (Positive/Negative), Sync on green: (0.3Vp-p negative), Digital: TMDS / DisplayPort

Signal Compatibility/Connectivity

Jump to...
  • PC Signal Compatibility

    Yes

  • Macintosh Signal Compatibility

    Yes

  • Video

    Analog RGB 0.7 Vp-p/75 Ohms Digital TMDS / DisplayPort

  • Sync

    Analog: Separate sync: TTL Level (Positive/Negative), Sync on green: (0.3Vp-p negative), Digital: TMDS / DisplayPort

  • Input Terminals

    Analog: VGA 15-pin D-sub (shared S-Video, Video, Component, RGB)
    Digital: DisplayPort, HDMI, DVI-D
    Audio: Stereo Mini-Jack, HDMI Audio, DisplayPort Audio
    External Control: RS-232C, Ethernet (RJ45), IR Remote

  • Output Terminals

    Digital: DVI-D
    Audio: Stereo Mini-Jack
    External Control: RS-232C

Power Consumption (Typical)

Jump to...
  • On

    48W

  • ECO Mode Standby

    <1W

Environmental Conditions

Jump to...
  • Operating Temperature

    41-104 Degree F (5-40 Degree C)

  • Operating Humidity

    20-80%

  • Operating Altitude

    9843' (3000m)

  • Storage Temperature

    -4-140 Degree F (-20-60 Degree C)

  • Storage Humidity

    10-90%

  • Storage Altitude

    40000' (12192m)

Physical

Jump to...
  • VESA Hole Configuration

    200 x 200mm (4-hole)

  • Bezel Width (Left/Right, Top/Bottom)

    0.9" / 0.9", 0.9" / 0.9" (24mm / 24mm, 24mm / 24mm)

  • Dimensions (W x H x D)

    With stand: 29.5 x 19.6 x 9.4" (750 x 497.1 x 240mm)
    Without stand: 29.5 x 17.5 x 2.4" (750 x 444.5 x 60.8mm)

  • Weight

    Weight (with stand): 23.8 lb (10.8kg)
    Weight (without stand): 20.9 lb (9.5kg)

  • UPC Code

    805736071023

About NEC V323-3

NEC's 32" V323-3 high-performance large-screen display utilizes LED backlighting to deliver both environmental and functional benefits for digital signage. The V323-3's commercial-grade panel is capable of displaying brilliant imagery and capturing the audience's attention.

This full HD model features a brand new mechanical design as well as an Open Pluggable Specification (OPS)-compliant expansion slot, which future-proofs the display and allows for the seamless integration of a computer or other NEC/third-party component. Because video, RS-232 control and power are passed internally from the display to the computer, additional cabling is not required, thereby simplifying installations.

With integrated temperature sensors and fans, this display is ideal in applications that require extended use, including retail stores, restaurants, indoor venues, training facilities and airports.

• Slimmer cabinet depth and bezel dimensions enhanced with aesthetic mechanical design
• 1920 x 1080 Resolution allows for incredibly clear imagery
• LED backlighting technology further reduces power consumption
• Built-in expansion slot supports the Open Pluggable Specification (OPS), which is the industry's first standardization option slot that simplifies digital signage installations
• Full 1080p high-definition resolution provides stunning detail
• Commercial-grade LCD panel and components enable extended run time
• Expanded connectivity with digital loop-through
• NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations

NEC V323-3 Features

  • Advanced thermal capabilities
  • Advanced cooling system
  • TileMatrix (10x10)
  • TileComp
  • Separate group/Monitor ID function
  • Ethernet Control and Communication
  • RS-232 Control and Communication
  • Carbon footprint meter
  • Plug and Play (DDC/CI, DDC2B)
  • Scheduler (with real-time clock)
  • Screen saver function
  • POP
  • Side-by-Side
  • Touch- and protective screen-ready
  • Variable picture modes
  • Input labeling
  • Backlight adjust
  • Aspect ratio control
  • Built-in speaker
  • OPS-Compliant slot

Key Features

  • Advanced thermal capabilities
  • Advanced cooling system
  • TileMatrix (10x10)
  • TileComp
  • Separate group/Monitor ID function
  • Ethernet Control and Communication

What's in the box:

  • V323-3 32 " High-Performance LED-Backlit Commercial-Grade HD Display
  • NEC 3 Year Limited Warranty
