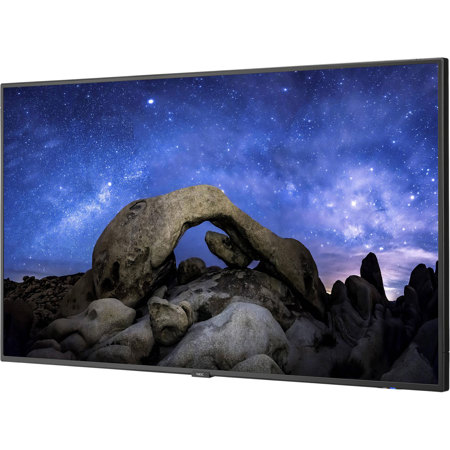

NEC V554Q 55" S-IPS 4K Ultra HD LED Professional Display with Built-In Speakers, 3840x2160

SKU: NCV554Q

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

NEC V554Q Specifications

Display

Display

Jump to...
  • Panel Technology

    S-IPS

  • Aspect Ratio

    16:9

  • Viewable Image Size

    55"

  • Native Resolution

    3840x2160

  • Supported Resolutions

    DisplayPort: V1.2 (HDCP 1.3) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p at 50Hz/60Hz, 576p at 50Hz, 480p at 60Hz, 3840 x 2160 (24Hz/30Hz/25Hz/60Hz (DisplayPort 1.2)) HDMI: (HDCP 1.4/2.2) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p at 50Hz/60Hz, 576p at 50Hz, 480p at 60Hz, 576i at 50Hz, 480i at 60Hz, 3840 x 2160 (24Hz/30Hz/25Hz/60Hz (MODE2)), 4096 x 2160 (30Hz, 24Hz, 25Hz, 60Hz (MODE2))

  • Pixel Pitch

    0.32mm

  • Pixels Per Inch

    80 PPI

  • Contrast Ratio (typical)

    4000:1 (without local dimming)

  • Response Time (typical)

    8 ms

  • Orientation

    Landscape/Portrait

  • Displayable Colors

    More than 1.07 billion

  • Brightness (maximum)

    500 cd/m2

  • Viewing Angle (typical)

    178 deg. Vertical, 178 deg. Horizontal (89U/89D/89L/89R) at CR>10

  • Refresh Rate

    60Hz

  • Dimming Capability

    No

Synchronization Range

Jump to...
  • Horizontal (Analog/Digital)

    26kHz - 135.0kHz

Signal Compatibility/Connectivity

Jump to...
  • PC Signal Compatibility

    Yes

  • Macintosh Signal Compatibility

    Yes

  • Input Terminals

    Digital: HDMI 2.0 (3), DisplayPort 1.2 (2)
    Audio: Audio Mini-Jack, DisplayPort Audio, HDMI Audio
    External Control: RS-232C, LAN, IR Remote

  • Output Terminals

    Digital: DisplayPort (Outputs DisplayPort1 or Option)
    Audio: Audio Mini-Jack, External Speaker Out (2), DisplayPort Audio
    External Control: LAN

Power Consumption (Typical)

Jump to...
  • On

    120W

  • ECO Mode Standby

    0.5W

  • Network Standby

    2W

  • Power Consumption (max)

    170W (Brightness Max), 300W (All Functions Maxed)

  • Input Current

    3.4A at 100V
    1.6A at 240V

Environmental Conditions

Jump to...
  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Operating Altitude

    9843' (3000m)

  • Storage Humidity

    10-90%

  • Operating Humidity

    20-80%

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Storage Altitude

    40,000' (12,192m)

General

Jump to...
  • VESA Hole Configuration

    300 x 300mm (M6 x 12mm)

  • Bezel Width (Left/Right, Top/Bottom)

    0.47" / 0.47", 0.47" / 0.61" (11.9mm/11.9mm, 11.9mm/15.5mm)

  • Dimensions (WxHxD)

    With Stand: 48.8 x 28.1 x 2.7" (123.95 x 71.37 x 6.86cm)
    Without Stand: 48.8 x 28.1 x 2.7" (123.95 x 71.37 x 6.86cm)

  • Weight

    Without Stand: 59.1 lbs (26.81kg)

  • UPC Code

    805736070316

About NEC V554Q

With industry leading experience in superior design and customer focus, the 55" NEC V554Q allows for clear, detailed imagery for unobtrusive digital signage. New contemporary and slim mechanical design with focused aesthetics allows for the smooth and stylistic integration into any type of environment while the full metal chassis coupled with real-time temperature sensors and integrated cooling fans maintain the professional quality necessary for commercial environments.

With a wide range of the latest connectivity interfaces including HDMI 2.0 x3 and DisplayPort 1.2 x2/daisy chain option, these displays offer the future-proofing necessary for the investment. These displays also include expandability options such as the Open Pluggable Specification (OPS) and Raspberry Pi Compute Module slots for source integration directly into the display. The V554Q series boasts a 500 cd/m2 brightness along with a new anti-glare surface that allows for efficient readability when ambient light is present and is ideal for 24/7 signage in Retail environments as well as when used for presentation purposes in Corporate or Educational institutions.

Additional Features
• Raspberry Pi Compute Module Compatible
• SpectraView Engine Color Control (Including Uniformity Adjustment)
• Integrated OPS Option Slot
• On-Screen Key Guide
• Ethernet Control and Communication
• USB Upstream/Downstream
• RS-232 Control and Communication
• CEC Communication
• HDCP 1.4 and 2.2 support through HDMI
• HDCP 1.3 support through DisplayPort
• Firmware via USB/Network
• Landscape/Portrait Capable
• Image Flip
• TileMatrix (10 x 10)
• Carbon footprint meter
• 24/7 Scheduler with Real Time Clock
• Holiday Settings
• Screen saver function
• Multi-Picture Mode
• 28% haze panel
• Ambient light sensor
• Screen Saver Function
• Optional Human Sensor
• Intelligent Wireless Data (Near Field Communications)
• Metal rear cabinet
• Carrying Handles
• Variable picture modes
• Advanced video settings (Noise Reduction, Adaptive Contrast)
• Input labeling
• Backlight adjust
• Aspect ratio control
• Built-in 10W x 2 speakers
• Powered USB
• NaViSet Administrator Compatible
• Auto ID/IP Address Control
• Crestron RoomView Support
• AMX Beacon
• PJLInk Support
• HDMI and DisplayPort Cable Included

NEC V554Q Features

  • Stylish and sleek design allows for easy and unobtrusive integration into any environment
  • 500 cd/m2 brightness combined with UHD resolution and new anti-reflective screen surface will capture the attention of the audience while allowing for clear visibility in higher ambient light conditions
  • Future proof modular expansion options including the ability to integrate Open Pluggable Specification (OPS) or a Raspberry Pi Compute Modules seamlessly into the display
  • SpectraView Engine allows for complete color, intensity, gamma or uniformity control for the ultimate imaging performance
  • Integrated Media Player allows for audio, video or image playback via USB or SD card
  • Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for hassle-free 24/7 operation
  • Full 3 year commercial warranty to allow for peace of mind and protection of this investment

What's in the box:

  • NEC V554Q 55 " S-IPS 4K Ultra HD LED Professional Display
  • Power Cord
  • 2.0m DisplayPort Cable
  • 2.0m HDMI Cable
  • Wireless Remote Control
  • Batteries
  • CD-ROM
  • Setup Manual
  • Clamps
  • Screws
  • SD Card Cover
  • Eyebolt Bracket
  • Setup Manual
  • CD-ROM (Software & Documentation)
  • NEC 3 Year Parts and Labor Advanced Replacement Limited Warranty
