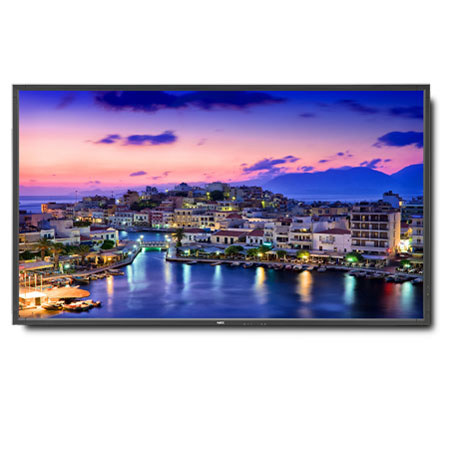

NEC V801 80" High-Performance LED Edge-Lit Commercial-Grade Display Monitor
See all NEC items

NEC V801 80" High-Performance LED Edge-Lit Commercial-Grade Display Monitor with Integrated Speakers, 1920x1080, HDMI

SKU: NCV801

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

NEC V801 Specifications

  • Panel Technology

    UVA

  • Viewable Image Size

    80" / 203.2cm

  • Native Resolution

    1920x1080

  • Pixel Pitch

    0.92mm

  • Backlight Type

    LED Edge-lit

  • Brightness (typical)

    320cd/m2

  • Brightness (maximum)

    460cd/m2

  • Contrast Ratio (typical)

    5000:1

  • Viewing Angle

    178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) at CR>10

  • Refresh Rate

    60Hz

  • Aspect Ratio

    16:9

  • Active Screen Area

    69.7x39.2" / 1771.2x996.3mm

  • Orientation

    Landscape/Portrait

  • Displayable Colors

    More than 1 billion

  • Horizontal (Analog/Digital)

    31.5-91.1 kHz

  • Vertical

    50-85 Hz

  • Input Signal: Video

    Analog RGB 0.7 Vp-p/75 Ohms

  • Sync

    Separate sync: TTL Level (Positive/Negative)
    Composite sync: TTL Level (Positive/Negative)
    Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

  • PC Signal Compatibility

    Yes

  • Macintosh Compatibility

    Yes

  • Input Terminals: Digital

    DisplayPort, HDMI, DVI-D

  • Input Terminals: Analog

    VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD or Video), BNC Composite, S-Video

  • Input Terminals: Audio

    Audio Mini-Jack, DisplayPort Audio, HDMI Audio

  • Input Terminals: External Control

    RS-232C, LAN, DDC/CI RS-232C, LAN, DDC/CI

  • Output Terminals: Audio

    Audio Mini-Jack, External Speaker Jack (2)

  • Output Terminals: Digital

    DVI-D

  • Output Terminals: External Control

    RS-232C

  • Power Consumption (typical): On

    230W

  • ECO Mode Standby

    <2W

  • Bezel Width (Left/Right, Top/Bottom)

    1.2"/1.2", 1.2"/1.2"; 29.7mm/29.7mm, 29.7mm /29.7mm

  • VESA Hole Configuration Specifications

    400 x 400mm

  • Operating Temperature

    41-104deg.F / 5-40deg.C

  • Operating Humidity

    20-80%

  • Operating Altitude

    9843ft / 3000m

  • Storage Temperature

    -4-140deg.F / -20-60deg.C

  • Storage Humidity

    10-90%

  • Storage Altitude

    40000ft / 12192m

  • Dimensions (WxHxD)

    Without Stand: 72.3x41.8x3.4" / 183.64x106.17x8.6cm

  • Weight

    Without Stand: 132.3lbs / 60.01kg

  • UPC Code

    805736047653

About NEC V801

The NEC V801 80" High-Performance LED Edge-Lit Commercial-Grade Display Monitor with Integrated Speakers is ideal for applications requiring considerable screen size such as education facilities, corporate lobbies, board rooms and retail. This display utilizes LED-backlighting to deliver a slim depth and low power consumption while a full high-definition panel delivers brilliant imagery.

NEC V801 Features

  • LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
  • Built-in expansion slot supports the Open Pluggable Specification (OPS), which is the industry's first standardization option slot that simplifies digital signage installations
  • Full 1080p high-definition resolution provides stunning detail
  • Commercial-grade LCD panel and components
  • Expanded connectivity with digital loop-through
  • TileMatrix allows you to create video walls up to 10x10

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • LED backlighting technology
  • Full 1080p high-definition resolution provides stunning detail
  • Commercial-grade LCD panel & components
  • Expanded connectivity with digital loop-through
  • TileMatrix allows you to create video walls up to 10x10

What's in the box:

  • NEC V801 80" LED Edge-Lit Commercial-Grade Display Monitor with Integrated Speakers
  • Power Cord
  • 1.8m DVI-D Cable
  • Wireless Remote Control
  • Batteries
  • CD-ROM (User Manual)
  • Option Board Slot Cover
  • Screws
  • Thumbscrews
  • NEC 3 Year Parts and Labor Limited Warranty
