NewTek TalkShow VS 4000 Multi Channel Video Calling
See all NewTek items

NewTek TalkShow VS 4000 Multi Channel Video Calling

SKU: NE001394R001
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

Can the TalkShow VS 4000 connect with multiple guests at the same time?

Yes, the TalkShow VS 4000 Multi Channel Video Calling system is designed to connect you with up to four remote guests simultaneously, regardless of their location.

What kind of video quality does the TalkShow VS 4000 deliver?

The TalkShow VS 4000 delivers broadcast-quality HD content. It also features NewTek's proprietary, real-time video processing engine that incorporates superb scaling, format conversion, aspect and color correction routines.

Does the TalkShow VS 4000 support audio over IP?

Yes, in addition to audio over IP via NDI, TalkShow includes fully integrated Dante audio support, interfacing with other audio devices utilizing the Dante networking protocol from Audinate.

Can the TalkShow VS 4000 be integrated into IP video workflows?

Yes, the TalkShow VS 4000 integrates into IP video workflows via NDI, NewTek's innovative Network Device Interface technology.

Does the TalkShow VS 4000 allow control of the entire video calling workflow?

Yes, the TalkShow VS 4000 provides complete control of the entire video calling workflow - before, during and after the show.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

NewTek TalkShow VS 4000 Specifications

  • Hardware Video Input

    4x HD-SDI with embedded audio

  • Hardware Video Output

    4x HD-SDI with embedded audio

  • Hardware Audio Input

    4x embedded SDI audio
    2x Balanced XLR (Line)

  • Hardware Audio Output

    4x embedded SDI audio
    2x Balanced XLR (Line)

  • IP Networking

    Integrated NewTek Network Device Interface (NDI) technology enabling transmission of A/V input and output signals over IP between TalkShow and other supported systems, including TriCaster, 3Play and a range of third-party solutions

  • Dante Audio Networking

    Integrated Dante audio support, enabling TalkShow to interface with other audio devices utilizing the Dante networking protocol from Audinate

  • Call Recording

    Supports full-bandwidth recording of call video and audio (optionally including return audio on separate channels) to external USB 3.0 or SAN storage

  • Video Configuration

    Fully configurable color correction settings for each incoming Skype video signal, including white balance, proc amp controls and auto color
    Freely selectable video source for return to each Skype caller

  • Audio Configuration

    Fully configurable settings for each incoming Skype audio signal, including gain control, seven-band equalizer, compressor/limiter and noise gate
    Freely selectable audio source and mix-minus channel control for return to each Skype caller

  • Talk Back

    Supports direct, off-air communication between operator and remote callers individually or as a group via headset (optionally configurable for control via external GPI trigger)

  • Call Management

    Supports multi-channel Skype TX call management locally or over IP via Skype TX controller application
    Local production control supporting per-channel configuration of call video and audio and Talk Back communication via TalkShow user interface
    Direct mouse and keyboard USB interface required

  • Local Monitoring

    DVI and HDMI ports for connecting external monitors
    Stereo 1/4" phone jack for local audio monitoring
    Full-motion input and output video previews within user interface, including optional picture-in-picture overlay of return video for each call monitor
    Configurable multi-view workspace, including selectable layouts and optional overlays including title safe, 4:3 safe, center cross and VU meters
    Audio VU metering

  • Output Video Formats

    Configurable call video output resolution and frame rate, with support for NTSC and PAL formats
    1080i - 25, 29.97, 30
    1080p - 23.98, 24
    720p - 50, 59.94, 60
    576i (16:9 or 4:3) - 25
    480i (16:9 or 4:3) - 29.97

  • Return Video Formats

    Configurable return video input resolution and frame rate, with support for NTSC and PAL formats (available selections vary depending on output video format selected)
    1080i - 29.97, 25
    1080p - 30, 30 PsF, 24, 24 (Telecine), 25, 25 PsF
    720p - 30, 25, 24
    576i (16:9 or 4:3) - 25
    480i (16:9 or 4:3) - 29.97

  • Watermark

    Optionally supports Skype logo watermark on output

  • Tally

    Supports hardware tally via HD15 GPI connector or network tally via NewTek NDI

  • GPI

    HD15 GPI connector

  • Reference

    Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
    +4dBU audio reference level

  • Signal Monitoring

    Integrated Waveform and Vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 601 and 709

  • Software

    Microsoft Windows 10 OS, Skype TX 4 software, Skype TX controller application and TalkShow control software

  • CPU

    4th Generation i7 Quad-Core

  • Graphics

    Intel HD4600 GPU

  • Memory

    8GB

  • Storage

    120GB internal SSD

  • Processing

    Video: 4:4:4:4, 32-bit Floating Point
    Audio: 4 channels, 96 kHz, 32-bit Floating Point

  • Standards

    HD-SDI video conforms to SMPTE 292M
    SD-SDI video conforms to SMPTE 259M

  • Network

    Dual gigabit Ethernet NIC supporting Skype TX call transmission, NDI transmission to and from supported systems, Dante audio networking and local network traffic

  • Fail-Safe

    Multi-tiered fail-safe system
    Automatic failover to audio transmission with caller snapshot when bandwidth falls below operator-defined preset value
    Comprehensive system restore operation

  • Rack Mount

    1RU with 180W power supply (110-220V external; 12V internal)

  • Dimensions

    19.0 x 1.75 x 16.75" / 482.60 x 44.45 x 425.45mm with rack ears attached

  • Weight

    15lbs / 6.80kg

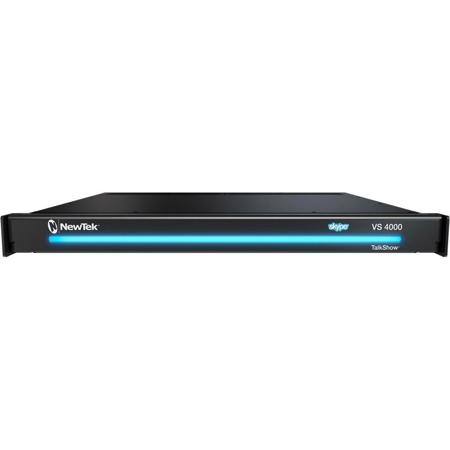

About NewTek TalkShow VS 4000

Make professional, high-quality video calls with the innovative TalkShow VS 4000 Multi Channel Video Calling system. This advanced piece of technology is designed to connect you with up to four remote guests simultaneously, regardless of their location, providing distraction-free, broadcast-quality HD content with complete production control.

The TalkShow VS 4000 is a state-of-the-art video calling system that allows you to reach over 300 million monthly Skype users. It features four concurrent Skype video channels, four-in, four-out HD-SDI connections, and integrated NDI technology that supports input and output over IP. This sophisticated system also includes an NDI Webserver, tally notification on all call channels, and the most complete audio and video capabilities.

Designed for live streaming and video calling, this high-tech system allows you to go live to the field or to anyone in the world you can reach online, immediately. It delivers live, production-ready Skype video calls for both SDI and IP live production workflows.

The TalkShow VS 4000 transforms regular Skype calls into broadcast-style video with automatic aspect ratio conversions and balanced audio, without requiring a scan converter. It also features NewTek's proprietary, real-time video processing engine that incorporates superb scaling, format conversion, aspect and color correction routines.

This advanced system offers built-in video quality checks, SDI I/O output, multiple simultaneous Skype calls, and access to anyone with a Skype account. It also provides complete control of the entire video calling workflow - before, during and after the show.

The TalkShow VS 4000 integrates into IP video workflows via NDI, NewTek's innovative Network Device Interface technology. It also supports multi-channel audio on input for signals coming into the system over the network or SDI. In addition to audio over IP via NDI, TalkShow includes fully integrated Dante audio support.

This sophisticated system also offers signal monitoring, system restore, on-air talk back, color correction, preview monitoring, tally support, professional audio tools, configurable monitoring, minimal latency, independent control interfaces, group or queue callers, IP networking, advanced audio, pristine live video, and real-time call monitoring.

The TalkShow VS 4000 Multi Channel Video Calling system is a product of Newtek, a reputable brand known for producing high-quality video equipment. This wireless system offers greater flexibility and ease of use compared to a wired system, making it a top choice for professionals in the field of live streaming and video calling.

NewTek TalkShow VS 4000 Features

  • Advanced multi-channel video calling system for professional live streaming and video calling
  • Connects with up to four remote guests simultaneously in real-time, delivering broadcast-quality HD content
  • Integrated NDI technology supporting input and output over IP, with four-in, four-out HD-SDI connections
  • Features NewTek's proprietary, real-time video processing engine for superb scaling, format conversion, and color correction
  • Includes fully integrated Dante audio support and extensive management of network audio signals
  • Offers complete control of the entire video calling workflow - before, during, and after the show

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Advanced multi-channel video calling system for professional live streaming and video calling
  • Includes fully integrated Dante audio support and extensive management of network audio signals
  • Offers complete control of the entire video calling workflow - before, during, and after the show

What's in the box:

  • NewTek TalkShow VS 4000 Multi Channel Video Calling
  • NewTek 1 Year Warranty
