8x resolution-independent IP video inputs via NDI
4x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates
1080p: 59.94, 50, 29.97, 25
1080i: 59.94, 50
720p: 59.94, 29.97, 25
576i 50
480i 59.94
2x session-format video outputs, with simultaneous delivery via IP and SDI
2x session-format IP video outputs via NDI
2x 3G/HD/SD-SDI connections. 4 BNC connectors that can be either
3G-SDI Output A
3G-SDI Output B or
1x UHD 2160p output via quad-link - Output B
1x DVI user interface with multiviewer
1x HDMI multiviewer
1x DisplayPort multiviewer
8x simultaneous recording channels
QuickTime SpeedHQ (4:2:2 encoding, 32-bit audio)
10TB internal drive (capacity varies by format, resolution and file specification)
Grab full-resolution, deinterlaced still images from inputs and outputs
Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
1x DSK channel per output, with independent source selection and transition
Supports custom transitions between output channels and playlist clips
Integrated NDI Telestrator Pro technology supporting real-time telestration and transport control from compatible devices over the network
Asset management system supporting metadata entry, tagging, filtering, organization, navigation, bookmarking, and integration with compatible MAM platforms
4x SDI embedded
1x Balanced XLR stereo pair (Line)
3x Balanced 1/4" stereo pairs (Line)
4x SDI embedded
1x Balanced XLR stereo pair
1x Balanced 1/4" stereo pair
1x Stereo 1/4" (phones)
Native support for network audio input and output via NDI
Video: Floating Point YCbCr +A 4:4:4:4
Audio: Floating Point, 96 kHz
3G-SDI video conforms to SMPTE 424M (Level A)
HD-SDI video conforms to SMPTE 292M
SD video conforms to SMPTE 259M and ITU-R BT.656
Analog audio levels conform to SMPTE RP-155
Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
Record, store, edit, and automate commands and user-configured operation sequences including support for cross-platform automation between supported systems
Supports Advanced Media Protocol for remote control via compatible third-party production systems
Supports GPI signals via JLCooper Electronics eBox GPI interface
Support for standard MIDI protocol enabling third-party device control
5x 2TB SSD configured in RAID 0
Capacity: 10 TB
1x 10 GbE NIC & 1x 1 Gigabit NIC
2RU chassis with 400W PSU and multi-tiered hardware and software fail-safe
With rack ears attached: 19.0 x 3.5 x 19.57" (48.3 x 8.9 x 49.7cm)
26 lbs (12kg)
Surface: 12.7 x 1.0 x 11.64" (32.3 x 2.6 x 29.6cm)
Base: 12.7 x 2.0 x 10.64" (32.3 x 5.1 x 27.0cm)
If you're seeking a superior sports replay solution, look no further than the 3Play 3P2 4K IP Instant Video Replay System with Control Surface, 2RU Chassis. This state-of-the-art system, developed by NewTek, offers native IP replay in breathtaking 4K resolution, ensuring that no thrilling sports moment goes unnoticed.
The 3Play 3P2 system is a game-changer in the realm of sports broadcasting, offering unmatched connectivity and efficiency across the entire production workflow. This integrated system boasts an unrivaled set of real-time capabilities, making it a comprehensive, cost-effective solution for IP-based live event production when combined with NewTek's live production systems.
With the 3Play 3P2, you can capture more channels and moments, ensuring every second of action is recorded. This system promotes better teamwork beyond the game, offering unparalleled connectivity and collaboration with industry-leading tools.
Quality is never compromised with the 3Play 3P2. This system ensures that you never drop the ball on quality, capturing all the action without any compromise. When combined with NewTek's industry-leading live production systems and control surfaces, the 3Play 3P2 offers the most complete, cost-effective, end-to-end IP-based live event production workflow ever available from a single solution supplier.
The 3Play 3P2 is a complete, cost-effective, IP-based live event production and replay system that leverages software-driven video technology and modern networking. This system provides users with comprehensive capabilities, increased scalability, and flexibility, elevating your sports production power.
For the first time, the 3Play 3P2 offers stunning 4K resolution, along with an array of new features that ensure the quality of your production never suffers. This 10-channel replay solution offers a mix of 8 inputs via NDI, 4 inputs of SDI, and 2 outputs of SDI or NDI. A single quadlink SDI output is also available for 2160p UHD output, providing championship-level connection with any workflow.
The 3Play 3P2 is a true team player, allowing 3P2 and TriCaster devices to access shareable playlists. Operators can easily sync entire playlists on the network, which can be tagged with player names or numbers.
With the 3Play 3P2, operators can zoom in and out of replays to enrich the playback during live fast action games. The system also offers automatic session clean-up, allowing operators to manage their storage space by auto exporting marked clips and deleting unprotected sessions.

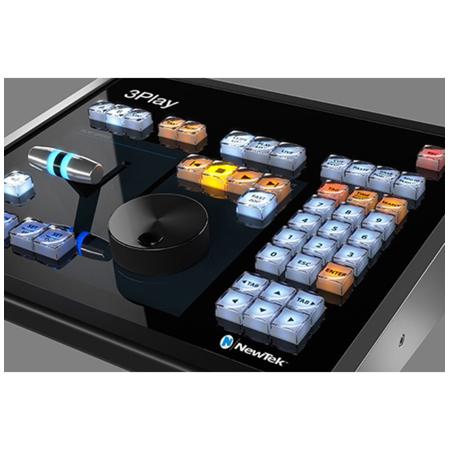

The 3Play 3P2 also comes with a control surface that provides comprehensive control of live sports production, instant replay, and official review. This hardware control is ready for action with innovative, user-focused control of recording, replay, live video switching, highlights publishing, and asset management.
In conclusion, the 3Play 3P2 4K IP Instant Video Replay System with Control Surface, 2RU Chassis is a comprehensive solution for sports broadcasters seeking to capture every thrilling moment in stunning 4K resolution.
