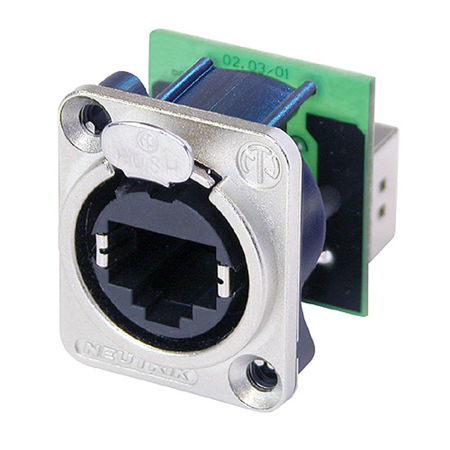

Neutrik NE8FDP etherCON Series RJ45 Feedthrough Receptacle, Silver
See all Neutrik items

Neutrik NE8FDP etherCON Series RJ45 Feedthrough Receptacle, Silver

SKU: NE8FDP MFR: NE8FDP
Be the first to review this itemAsk a Question
$11.23
Earn VIP Reward Points

Key Features

  • Ensure reliable data connections with this Neutrik CAT 5e RJ45 feedthrough receptacle.
  • Achieve optimal performance with a frequency range of 1-100 MHz in your network setup.
  • Built to last: This durable etherCON connector withstands over 1000 mating cycles easily.
  • Maintain signal integrity with gold over nickel plating on RJ45 connector contacts.
  • Securely mount this RJ45 feedthrough in panels up to 4 mm thick for robust connectivity.
  • Trust in Neutrik's quality: This silver RJ45 receptacle offers exceptional build & performance.
See More Product Details
Temporarily On Backorder?Expected Availability: 01/2026Request assistance or get notified
Add to List

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NE8FDP Specifications

General

General

Jump to...

  • Color

    Silver

  • Gender

    Female

Electrical

Jump to...

  • Contact resistance

    < 10 m Ohm

  • Dielectric strength

    1 kVdc

  • Frequency range

    1 - 100 MHz

  • Insulation resistance

    > 0.5 G Ohm

  • Rated current per contact

    1.5 A

  • Rated voltage

    < 50 V

  • Transmission performance

    CAT 5e

  • Standard compliance

    TIA/EIA 586B, IEC11801

Mechanical

Jump to...

  • Insertion force

    <= 20 N

  • Withdrawal force

    <= 20 N

  • Lifetime

    > 1000 mating cycles

  • Panel thickness

    max. 4 mm 0.16'

  • Wiring

    Feedthrough

  • Locking device

    Latch lock

  • Chassis shape

    D

Material

Jump to...

  • Contact plating

    0.2 microm Au over Ni plating

  • Contacts

    Bronze (CuSn8)

  • Insert

    PBTP 15 % GR

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Nickel

Environmental

Jump to...

  • Flammability

    UL 94 V-0

  • Temperature range

    -22 to 176 Degree F (-30 to +80 Degree C)

About Neutrik NE8FDP

RJ45 feedthrough receptacle, D-shape metal flange with the latch lock, mounting screws included

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Neutrik NE8FDP Features

  • Accommodates NE8MC or any standard RJ45 plug
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure reliable data connections with this Neutrik CAT 5e RJ45 feedthrough receptacle.
  • Achieve optimal performance with a frequency range of 1-100 MHz in your network setup.
  • Built to last: This durable etherCON connector withstands over 1000 mating cycles easily.
  • Maintain signal integrity with gold over nickel plating on RJ45 connector contacts.
  • Securely mount this RJ45 feedthrough in panels up to 4 mm thick for robust connectivity.
  • Trust in Neutrik's quality: This silver RJ45 receptacle offers exceptional build & performance.

What's in the box:

  • NE8FDP etherCON Series RJ45 Feedthrough Receptacle
  • Neutrik 6 Month Limited Warranty
