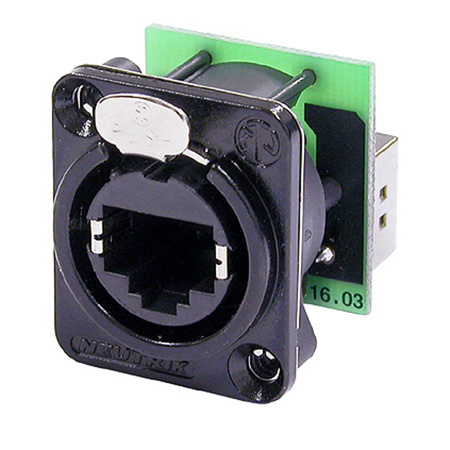

Neutrik NE8FDP-B etherCON Series RJ45 Feedthrough Receptacle, Black

SKU: NE8FDPB

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the intended use of the NE8FDP-B etherCON Series RJ45 Feedthrough Receptacle?

The NE8FDP-B etherCON Series RJ45 Feedthrough Receptacle is intended to provide a feedthrough receptacle for Ethernet connections. It is designed to be mounted in a panel or enclosure and is suitable for professional audio, video, and lighting network applications.

What makes the NE8FDP-B etherCON Series RJ45 Feedthrough Receptacle user-friendly?

The NE8FDP-B etherCON Series RJ45 Feedthrough Receptacle is user-friendly due to its easy installation process. The package includes mounting screws, making it straightforward to secure in place.

What is the significance of the D-shape metal flange in the NE8FDP-B etherCON Series RJ45 Feedthrough Receptacle?

The D-shape metal flange in the NE8FDP-B etherCON Series RJ45 Feedthrough Receptacle ensures a secure and stable connection. It also features a latch lock for added security.

How is the NE8FDP-B etherCON Series RJ45 Feedthrough Receptacle optimized for the entertainment industry?

The NE8FDP-B etherCON Series RJ45 Feedthrough Receptacle is designed to fit seamlessly into standardized panels commonly found in the entertainment industry, making it an ideal choice for professional audio, video, and lighting network applications.

What is the D-Series in the etherCON series?

The D-Series is the most rugged design within the etherCON series. Products within this series, like the NE8FDP-B etherCON Series RJ45 Feedthrough Receptacle, are ideal for panel mount applications and the installer market.

Reviews about this item

Review Summary

Neutrik NE8FDP-B Specifications

General

General

Jump to...
  • Color

    Black

  • Gender

    Female

Electrical

Jump to...
  • Contact resistance

    < 10 m Ohm

  • Dielectric strength

    1 kVdc

  • Frequency range

    1 - 100 MHz

  • Insulation resistance

    > 0.5 G Ohm

  • Rated current per contact

    1.5 A

  • Rated voltage

    < 50 V

  • Transmission performance

    CAT 5e

  • Standard compliance

    TIA/EIA 586B, IEC11801

Mechanical

Jump to...
  • Insertion force

    <= 20 N

  • Withdrawal force

    <= 20 N

  • Lifetime

    > 1000 mating cycles

  • Panel thickness

    max. 4 mm 0.16'

  • Wiring

    Feedthrough

  • Locking device

    Latch lock

  • Chassis shape

    D

Material

Jump to...
  • Contact plating

    0.2 microm Au over Ni plating

  • Contacts

    Bronze (CuSn8)

  • Insert

    PBTP 15 % GR

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Black chromium

Environmental

Jump to...
  • Flammability

    UL 94 V-0

  • Temperature range

    -22 to 176 Degree F (-30 to +80 Degree C)

About Neutrik NE8FDP-B

For professionals seeking a robust and reliable solution for their audio, video, and lighting network applications, the NE8FDP-B etherCON Series RJ45 Feedthrough Receptacle, in sleek black, is an exceptional choice. This product, crafted by the reputable brand Neutrik, is renowned for its high-quality and innovative design.

This durable receptacle features a black D-shape metal flange with a secure latch lock, ensuring a stable and secure connection. The package includes mounting screws for easy installation, making it a user-friendly option for both professionals and enthusiasts alike.

The etherCON Series is a ruggedized and lockable RJ45 connector system, specifically optimized for professional audio, video, and lighting network applications. The design of these chassis connectors is tailored to fit seamlessly into standardized panels commonly found in the entertainment industry.

The NE8FDP-B etherCON Series RJ45 Feedthrough Receptacle is part of the D-Series, the most rugged design within the etherCON series. This makes it an ideal choice for panel mount applications and the installer market. Its versatility extends to a variety of applications, including networking and telecommunications, thanks to its RJ45 feedthrough receptacle.

In summary, the NE8FDP-B etherCON Series RJ45 Feedthrough Receptacle is a high-quality, reliable, and durable solution for all your Ethernet connection needs. Its innovative design and user-friendly features make it a standout choice in the market.

Neutrik NE8FDP-B Features

  • Accommodates NE8MC or any standard RJ45 plug
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard

Key Features

  • Ensure reliable data connections with this Neutrik RJ45 feedthrough receptacle.
  • Achieve CAT 5e transmission performance with a frequency range of 1-100 MHz.
  • This etherCON series RJ45 connector offers robust bronze contacts with gold plating.
  • Withstand harsh conditions; temperature range: -22 to 176 Degree F.
  • Enjoy a long-lasting connection with a lifetime exceeding 1000 mating cycles.
  • Securely mount with a latch lock & standard D chassis shape for easy integration.

What's in the box:

  • NE8FDP-B etherCON Series RJ45 Feedthrough Receptacle
  • 2x Screws
  • Neutrik 6 Month Limited Warranty
