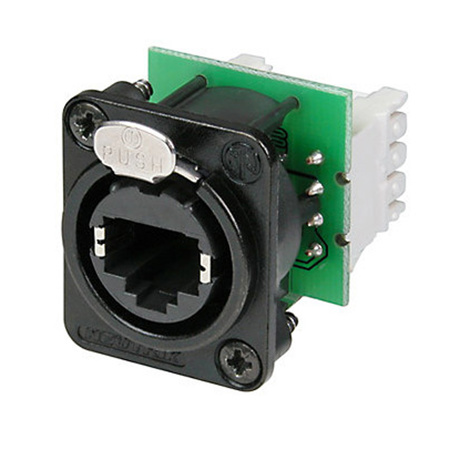

Neutrik NE8FDV-Y110-B etherCON Panel Mount Receptacle, IDC 100 Down Terminal
See all Neutrik items

Neutrik NE8FDV-Y110-B etherCON Series Panel Mount Receptacle with IDC 100 Punch Down Terminal, Black

SKU: NE8FDV110B
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the IDC 100 punch down terminal in the NE8FDV-Y110-B etherCON Series Panel Mount Receptacle used for?

The IDC 100 punch down terminal is used for easy and efficient termination of ethernet cables. It's a feature that makes this receptacle a convenient and time-saving option for professionals in the audio and video industry.

What makes the D-Series of the etherCON series unique?

The D-Series offers the most robust design of the etherCON series. It's perfectly suitable for panel mount applications and is highly favored in the installer market.

What is the purpose of the latch lock on the NE8FDV-Y110-B etherCON Series Panel Mount Receptacle?

The latch lock on the black D-shape metal flange ensures secure connections, making it reliable in even the most demanding environments.

Is the NE8FDV-Y110-B etherCON Series Panel Mount Receptacle suitable for all types of panels?

The receptacle is designed to fit seamlessly into standardized panels typically used in the entertainment industry. It can accommodate a maximum panel thickness of 4mm.

Who is the manufacturer of the NE8FDV-Y110-B etherCON Series Panel Mount Receptacle?

The NE8FDV-Y110-B etherCON Series Panel Mount Receptacle is manufactured by Neutrik, a reputable brand known for producing high-quality audio and video connectivity products.

Reviews about this item

Review Summary

Neutrik NE8FDV-Y110-B Specifications

General

General

Jump to...

  • Color

    Black

  • Gender

    Female

Electrical

Jump to...

  • Contact resistance

    < 10 m Ohm

  • Dielectric strength

    1 kVdc

  • Frequency range

    1 - 100 MHz

  • Insulation resistance

    > 0.5 G Ohm

  • Rated current per contact

    1.5 A

  • Rated voltage

    < 50 V

  • Transmission performance

    CAT 5e

  • Standard compliance

    TIA/EIA 586B, IEC11801

Mechanical

Jump to...

  • Insertion force

    <= 20 N

  • Withdrawal force

    <= 20 N

  • Lifetime

    > 1000 mating cycles

  • Panel thickness

    max. 4 mm 0.16'

  • Wiresize

    0.14 - 0.5 sq. mm
    26 - 20 AWG

  • Wiring

    IDC 110 punch down terminals

  • Locking device

    Latch lock

  • Chassis shape

    D

Material

Jump to...

  • Contact plating

    0.2 microm Au over Ni plating

  • Contacts

    Bronze (CuSn8)

  • Insert

    PBTP 15 % GR

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Black chromium

  • Strain relief

    CuZn35Pb2, Tin plated

Environmental

Jump to...

  • Flammability

    UL 94 V-0

  • Temperature range

    -22 to 176 Degree F (-30 to +80 Degree C)

About Neutrik NE8FDV-Y110-B

Bring efficiency and reliability to your professional audio, video, and lighting network applications with the NE8FDV-Y110-B etherCON Series Panel Mount Receptacle. This high-quality receptacle, designed by the reputable brand Neutrik, features an innovative IDC 100 punch down terminal for easy and efficient termination of ethernet cables.

The receptacle is housed in a durable, black D-shape metal flange with a latch lock, ensuring secure connections in even the most demanding environments. It is designed to accommodate a maximum panel thickness of 4mm and comes complete with mounting screws for easy installation.

The etherCON Series is a ruggedized and lockable RJ45 connector system, specifically optimized for the demanding needs of the entertainment industry. The chassis connectors are designed to seamlessly fit into standardized panels, making it a preferred choice for industry professionals.

The D-Series, where this panel mount receptacle belongs, offers the most robust design of the etherCON series. It is perfectly suitable for panel mount applications and is highly favored in the installer market. Experience the blend of innovation, durability, and user-friendliness with the NE8FDV-Y110-B etherCON Series Panel Mount Receptacle.

Neutrik NE8FDV-Y110-B Features

  • Accommodates NE8MC or any standard RJ45 plug
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
  • Selectable ground - panel connection
  • Easy and quick mounting using 110 type punch down terminals

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure a robust network connection with this Neutrik etherCON CAT 5e panel mount receptacle.
  • Achieve reliable data transfer up to 100 MHz using this high-quality Ethernet connector.
  • Simplify your setup with the IDC 110 punch down terminals for easy Ethernet cable termination.
  • Built to last: This durable etherCON connector withstands over 1000 mating cycles.
  • Secure your connections with the latch lock feature, preventing accidental disconnections.
  • This Neutrik panel mount receptacle offers broad compatibility, fitting panels up to 4mm thick.

What's in the box:

  • NE8FDV-Y110-B etherCON Series Panel Mount Receptacle with IDC 100 Punch Down Terminal
  • Neutrik 6 Month Limited Warranty
